Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-df52-08
Contact Us

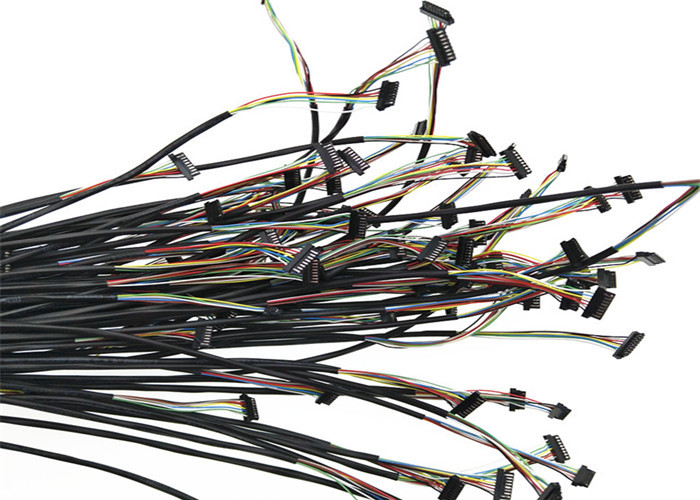

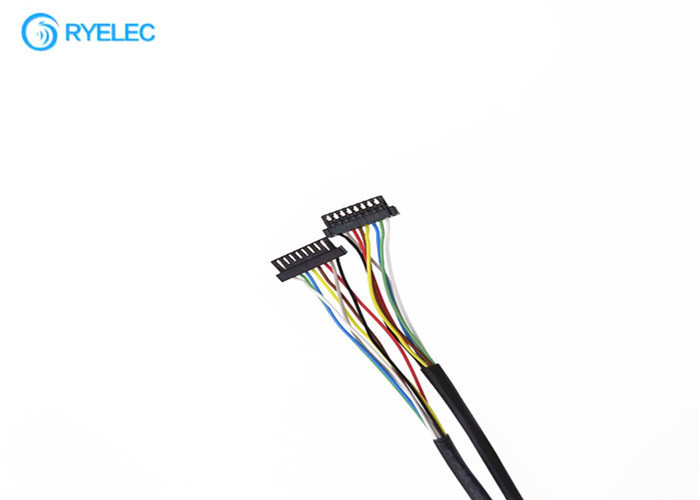

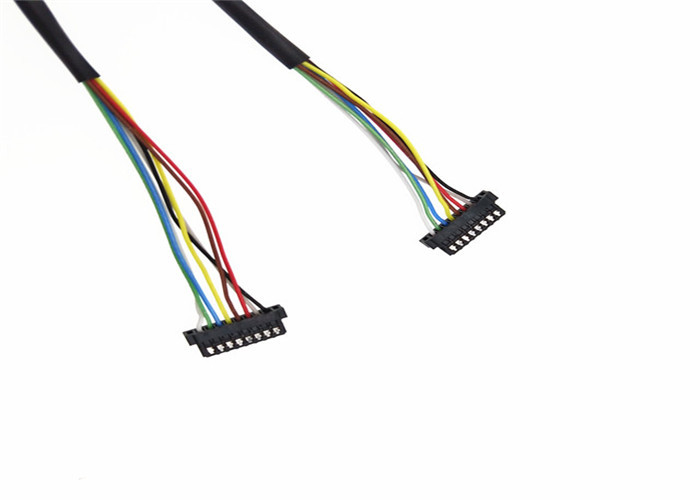

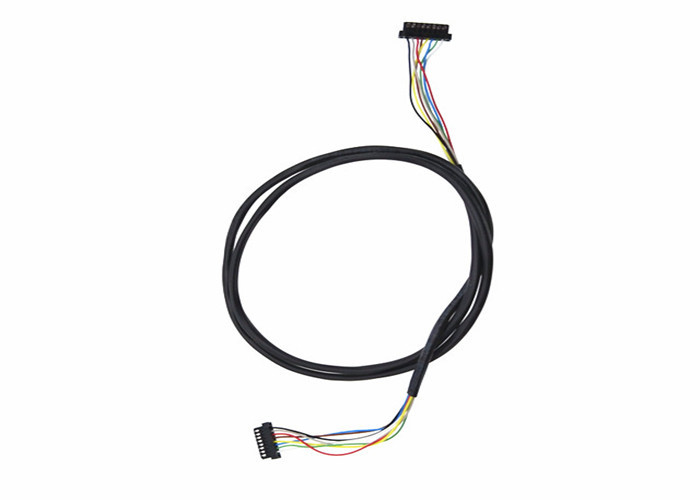

Hirose DF52-8P-0.8C 0.8mm Pitch Connector UL10064 32awg Wire Harness For Device'S
Electrical Characteristics
|
Connector Type
|
Plug, Receptacle, Contact |
|
Cable Assembly
|
Yes |
|
Number of Positions
|
2, 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 17, 20 |
|
Number of Rows (Interface)
|
1 |
|
Mounting Pitch
|
0.8 mm |
|
Contact Pitch
|
0.8 mm |
|
Rated Current
|
1.2, 1.5, 2, 2.5, 3 A |
|
Rated Voltage (AC)
|
AC 100 V |
|
Rated Voltage (DC)
|
DC 100 V |
|
Mating/Unmating Cycles
|
10, 20 |
|
Mounting Style
|
SMT |
|
Connector Orientation
|
Straight, Right angle |
|
Mounting Side
|
Standard on-Board |
|
Contact Plating
|
Tin |
|
Wire Termination Method
|
Crimping |
|
Recommended Wire Type
|
Discrete wire |
|
Wire Size (AWG)
|
AWG , 32 |
|
Cable
|
UL10064 |
|
Operating Temperature (Max.)
|
85 ℃ |
|
Operating Temperature (Min.)
|
-55, -40 ℃ |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Display
3. Wire Harness for Advertising machine
4. Wire Harness for Monitoring
5. Wire Harness for Back projection
6. Wire Harness for HDD
7. Wire Harness for tablet PC
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. 1 Year Warranty.
5. OEM/ODM service.
6. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
