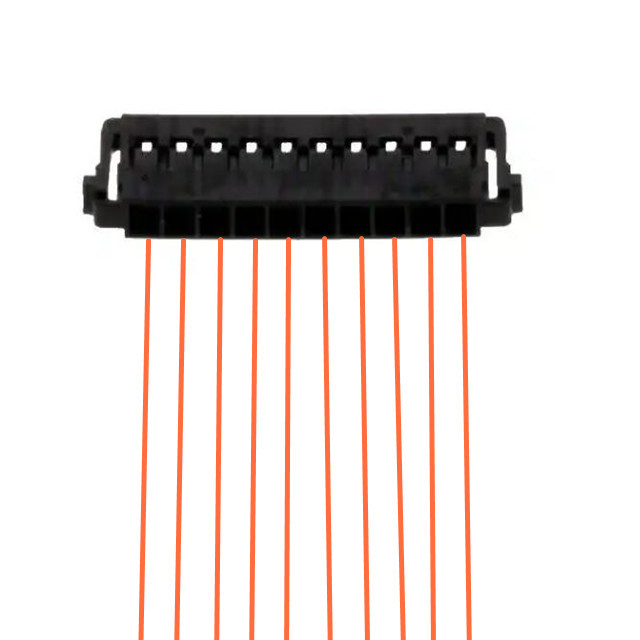

Ultrathin Pico Lock 1.50mm Pitch 10Pin Molex 5040511001 Wiring Harness

Ultrathin Pico Lock 1.50mm Pitch 10Pin Molex 5040511001 Wiring Harness

Molex 5040511001 Wiring Harness

10Pin Molex 5040511001 Wiring

1.50mm Pitch Molex 5040511001 Wiring

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-5040511001-10

Contact Us

Request A Quote
Product Details
Cable Type:
UL1007/UL1064...
Sample:
Sample Can Be Provided For Evaluating
Connector:
Molex 5040511001
Length:
50m..(we Can Customize)
Pitch:
1.5MM
Test:
100% Testing Inspection
Payment & Shipping Terms
Minimum Order Quantity
50
Price
USD0.8~3.8
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000pcs
Product Description



Manufacture Ultrathin Pico Lock 1.50 mm Pitch 10 Pin 504051 Molex 5040511001 Wiring Harness



A cable harness, also known as a wire harness, wiring harness, cable assembly, wiring assembly or wiring loom, is an assembly of electrical cables or wires which transmit signals or electrical power.The cables are bound together by a durable material such as rubber, vinyl, electrical tape, conduit, a weave of extruded string, or a combination thereof.
Commonly used in automobiles, as well as construction machinery, cable harnesses provide several advantages over loose wires and cables. For example, many aircraft, automobiles and spacecraft contain many masses of wires which would stretch over several kilometers if fully extended. By binding the many wires and cables into a cable harness, the wires and cables can be better secured against the adverse effects of vibrations, abrasions, and moisture. By constricting the wires into a non-flexing bundle, usage of space is optimized, and the risk of a short is decreased.Since the installer has only one harness to install (as opposed to multiple wires), installation time is decreased and the process can be easily standardized. Binding the wires into a flame retardant sleeve also lowers the risk of electrical fires.



Electrical Characteristics:



Cable type
UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type
Cable color
Optional
Connectors
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors.
Cable Length
50mm-15000mm.
Processing ways
Crimping, pressing and soldering types.
Pin out connection
As per customer's request
Connector pitch range
0.5mm-4.2mm
characteristics
Good transferring, clearly pictures, no shaking, and transfer issues
dvantages
Manufacturing factory;
Competitive price and quality;
Short lead time
Applications
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD
ISO certificate
ISO9001:2008
Service
OEM/ODM products are acceptable.
More information
ISO/RoHS/UL
Performance Test:
100% electrical and electricity performance test



WHAT IS A WIRING HARNESS?
To put it simply, a wiring harness is a group of wires bundled together. A wiring harness can be very small in size such as a small group of wires found in your computer or car. A wiring harness can also be very huge such as some of the ones that InterConnect manufactures for aircraft. These huge wiring harnesses may have thousands of wires in them and hundreds of connectors. The finished wiring harness may weigh over 100 pounds and cost over $50,000.
When I meet people and they ask what a wiring harness is, I give them the example of an extension cord. When you buy an extension cord you are buying a small wiring harness. Wiring harnesses have many different names including: electrical wiring harnesses, looms, cable assemblies, coax cables, RF cables, injection molded cable assemblies, fiber optic cables, and many times are simply called harnesses.
Wiring harnesses are important for aircraft because they can be installed as one unit instead of one wire at a time. It is much easier to build them on a table in a production area such as InterConnect Wiring’s production area as opposed to putting in wires one at a time in an aircraft and then connecting each wire to a connector or terminal or a splice. It is much easier and faster to route a group of wires already bundled together than routing them individually.



Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



Ultrathin Pico Lock 1.50mm Pitch 10Pin Molex 5040511001  Wiring Harness 0



Product Details:

Ultrathin Pico Lock 1.50mm Pitch 10Pin Molex 5040511001  Wiring Harness 1

Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.

Payment:
Ultrathin Pico Lock 1.50mm Pitch 10Pin Molex 5040511001  Wiring Harness 2
Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
