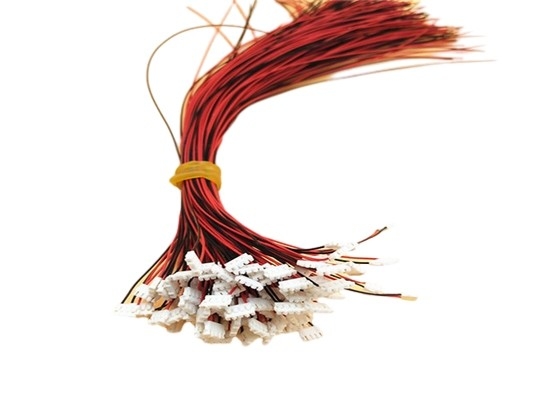

Achr-04v-A-S To Achr-04v-A-S Custom Wire Harness , Wire To Board Cable Harness

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-achr-4
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.88~6.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name:: RY Pin: 4pin
Application:: Electronic 1 Connector:: ACHR-04V-A-S
2 Connector:: ACHR-04V-A-S Length:: Customized
Samples:: Available Wire:: 30awg
High Light:

electronic wiring harness

,

wire harness cable assembly

Product Description





Achr-04v-A-S To Achr-04v-A-S 4pin Jst 1.2mm Pitch Connector Wire To Board Cable Harness​



Electrical Characteristics:



Series



 ACH

Packaging



 Bulk

Connector Type



 Receptacle

Contact Type



 Female Socket

Number of Positions



 4

Pitch



 0.047" (1.20mm)

Number of Rows



 1

Row Spacing



 -

Mounting Type



 Free Hanging (In-Line)

Contact Termination



 Crimp

Fastening Type



 -

Color



 Natural

Cable type



 Cable type

Cable Length



 50mm-15000mm.

Processing ways



 Crimping, pressing and soldering types.

Pin out connection



 As per customer's request

Connector pitch range



 0.5mm-4.2mm

characteristics



 Good transferring, clearly pictures, no shaking, and transfer issues



Wire Harness Applications:



1. Wire Harness for LCD
2. Wire Harness for Display

3. Wire Harness for Advertising machine

4. Wire Harness for Monitoring

5. Wire Harness for Back projection

6. Wire Harness for TV

7. Wire Harness for Medical system/monitoring

8. Wire Harness for Laptop



Product Details:

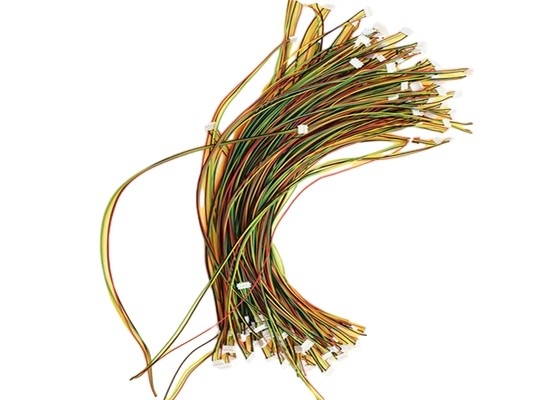

Achr-04v-A-S To Achr-04v-A-S Custom Wire Harness , Wire To Board Cable Harness 0


Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
   •100% product quality protection
   •100% on-time shipment protection
   •100% payment protection for your covered amount




FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
