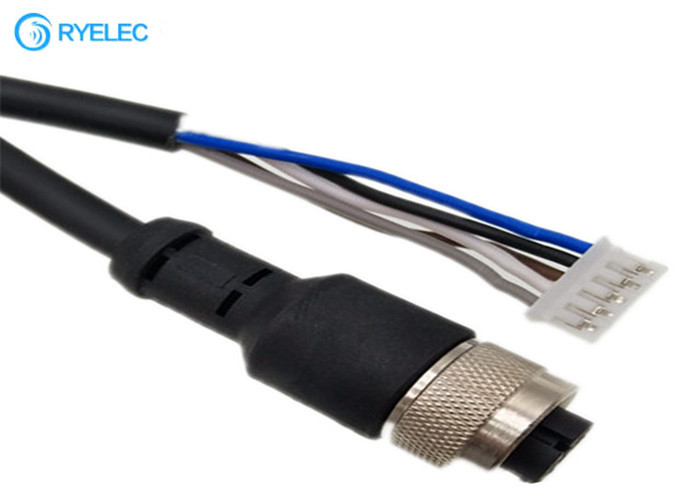

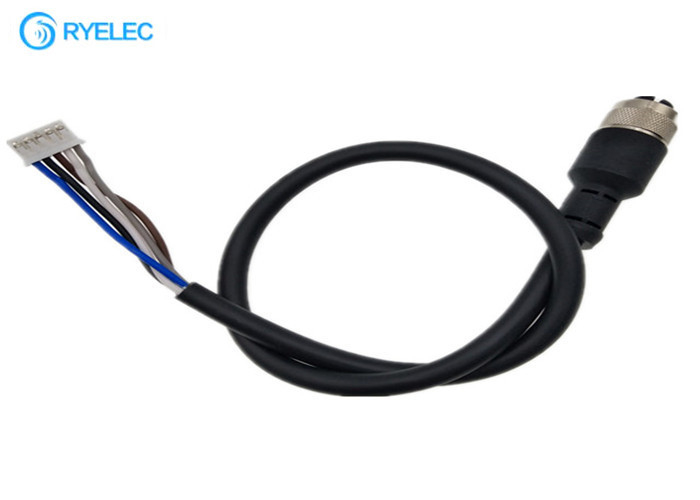

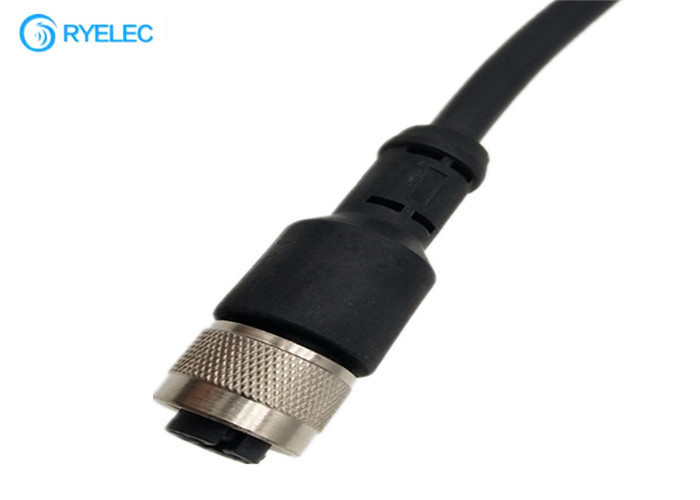

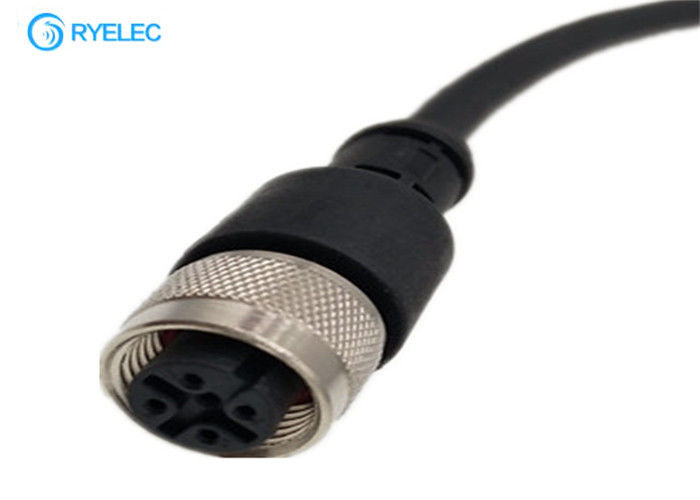

M12 5pin B Code Female Socket Terminator Circular Connector To Jst Ph2.0 5pin Cable
Electrical Characteristics
|
Item name
|
m12 connector cable with water tight connector 3p 4p 5p 8p 12p | ||||
|
Number of contacts
|
3 | 4 | 5 | 8 | 12 |
|
Connector locking system
|
screw | ||||
|
Termination
|
solder | ||||
|
Degree of protection
|
IP67 | ||||
|
Mechanical operation
|
>100 mating cycles | ||||
|
Upper temperature
|
~+80℃ | ||||
|
Lower temperature
|
~-25℃ | ||||
|
Rated voltage
|
250V | 250V | 125V | 60V | 30V |
|
Rated impulse voltage
|
2500V | 2500V | 1500V | 800V | 500V |
|
Pollution degree
|
3 | ||||
|
Overvoltage categorie
|
Ⅱ | ||||
|
Material group
|
I | ||||
|
Rated current(40℃)
|
4A | 4A | 4A | 2A | 1.5A |
|
Contact resistance
|
≤3mΩ | ||||
|
Material of contact
|
Brass | ||||
|
Contact plating
|
Gold | ||||
|
Material of contact body
|
PA | ||||
|
Material of housing
|
Brass nickel plated | ||||
Product Details:
M12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
● PUR and PVC cable for option
● Cable length: 1M, 2M, 3M or base on customer requirement
● Degree of protection IP 67
● 2, 3, 4, 5, 8, 12 poles per connector are available
● Operating voltage 250V/60V/30V; Current range: 4A, 2A, 1.5A
● Anti-vibration locking screw design
