15cm Ide Extension Cable Male To Female 40 Pin Ide Ribbon Cord For Pata Hdd

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-7847564
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.88~5.88
Packaging Details: 1pc/bag
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs

Detail Information

Brand Name:: RY Pin: 40pin
Application:: Electronic Connector:: IDC Male 2.54mm
Housing:: Idc Female 2.54mm Pitch:: 2.54mm
Length:: Customized Samples:: Available
High Light:

ribbon connector cable

,

flexible flat ribbon cable

Product Description





15cm Ide Extension Cable Male To Female-40pin Ide Ribbon Cord For Pata Hdd ​





Electrical Characteristics:



  IDC Flat Cable Wire Gauge



  UL2651 26-28AWG

  IDC Flat Cable Color



  Grey with Red edge or rainbow or Customized

  IDC Flat Cable Length



  Custom any length

  IDC Flat Connector Pitch



  0.5/0.8/1.0/1.28mm/2.0mm/2.54mm or Customized

  IDC Flat Cable Pitch



  0.4mm,0.635mm, 1.0mm, 1.27mm or Customized

  IDC Flat Cable Number of Pins



  2-50PINS Customized

  IDC Flat Cable Type



  Female to Female

  IDC Flat Cable Material



  High Purity Copper

  IDC Flat Cable Applications



  Computer/Desktop data transfer, Power transfer, Electronics

  IDC Flat Cable Service



  OEM ODM Accept

  IDC Flat Cable Certification



  ISO14001, TS16949


Product Details:

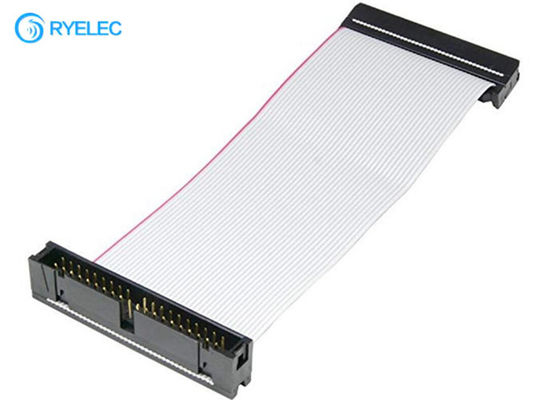

15cm Ide Extension Cable Male To Female 40 Pin Ide Ribbon Cord For Pata Hdd 0

Application:

FFC wiring is currently widely used in the connection between printer head and main board, signal transmission and board connection of plotter, scanner, copier, audio, LCD electrical appliances, fax machines, various video disc machines and other products. In modern electrical equipment, almost nowhere.

Common models are as follows:

Type A: The two ends are connected and the reinforcing board is pasted on the insulating adhesive paper.

Type B: The reinforcing board is directly pasted on the insulating adhesive paper.

Type C: The two ends of the reinforcing plate are directly attached to the conductor.

Type D: The two ends of the reinforcing plate are directly pasted on the conductor.

Type E: One end of the reinforcing board is pasted on the insulating adhesive paper, the other end is soldered directly.

Type F: The two ends of the reinforcing board are directly attached to the insulating adhesive paper and half of the interior is peeled off.

Type G: Direct soldering at both ends.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Services::


1. Your inquiry will be replied within 12 hours.



2. Well-traind & experienced sales can reply your inquiries in English.



3. Professional manufacturer and wholesaler for 10 years.



4. OEM & ODM projects are highly welcomed ,we have strong R&D team.

1) Any your idea on products, we can help you to design and put it into production.



5. Payment: You can pay for the order via: PayPal, T/T, Western Union



6. Good after-sale service.



FAQ:



1. Is there a standard size cable, plug, cord set, power cord?

No. Actually, to your advantage, there are many options to consider including material, size, configuration, application, and more. If you have a specific application consider contacting our technical sales and R&D team for assistance.



2. What is your minimum order?

Small quantity can be accepted, like 100pcs.



3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



4. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
