Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-3519877
Contact Us
Video
Video
Video

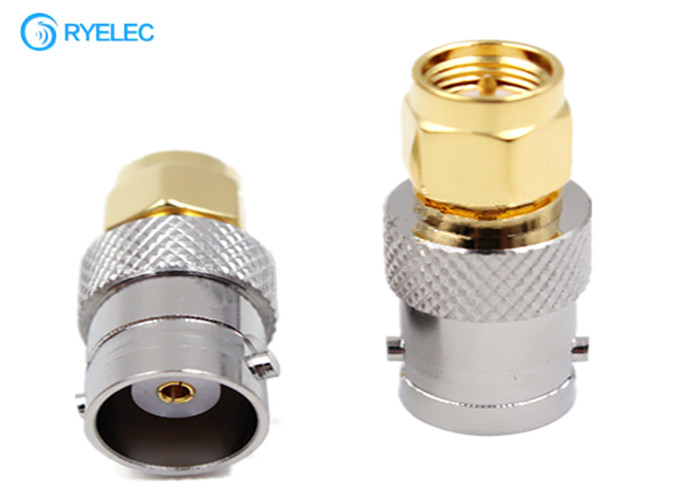

Bnc Male To Sma Male 50ohm Rf Adapter Straight Connector For Antenna
Electrical Characteristics:
|
Temperature Range
|
-55~+155℃(PE Cable -40~+85) | |
|
Vibration
|
100m/S2 (10-500Hz), 10g | |
|
Impedance
|
50 Ω, 75Ω | |
|
Frequency Range
|
DC -4GHz | |
|
Working Voltage
|
500V r.m.s at sea level | |
|
Withstanding Voltage
|
1500V r.m.s at sea level | |
|
Contact Resistance
|
Center contact | ≤1.5m Ω |
|
|
Outer contact | ≤1m Ω |
|
Contact Pin
|
Brass-Au / Ag plated | |
|
Insulation resistance
|
≥5000M Ω | |
| Center Conductor Retention Force | ≥0.57N | |
|
Voltage Standing Wave Ratio
|
Straight | ≤ 1.22/3GHZ |
|
|
Right angle | ≤ 1.30/3GZ |
|
Durability(mating)
|
≤500cycles | |
|
Body
|
Brass--Ni plated | |
|
Contact
|
Beryllium copper | |
|
Insulator
|
PTFE |
1.All kind of RF coaxial connectors
1) MMCX, MCX RF coaxial connectors
2) SMA SMB SMC RF coaxial connectors
3) TNC BNC RF coaxial connectors
4) N 7/16 coaxial connectors
5) F UHF MIniUHF coaxial connectors
6) FME RF coaxial connectors
7) Reverse polarity connectors
8) Adapter connectors
2 RF coaxial cable_SYV, SFF, RG, semi-rigid Assembly
3 Yagi antenna, 88MHz~5.8GHz antenna
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can I get samples to test before place an order?
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4. What is our Shipping & Trade terms?
