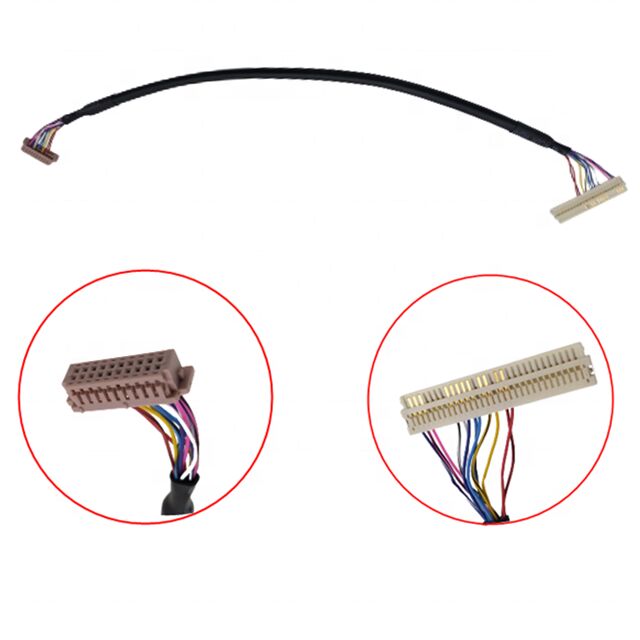

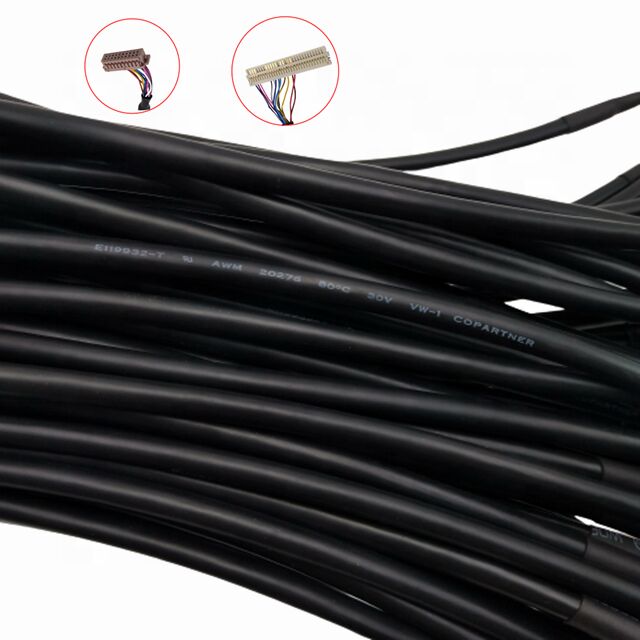

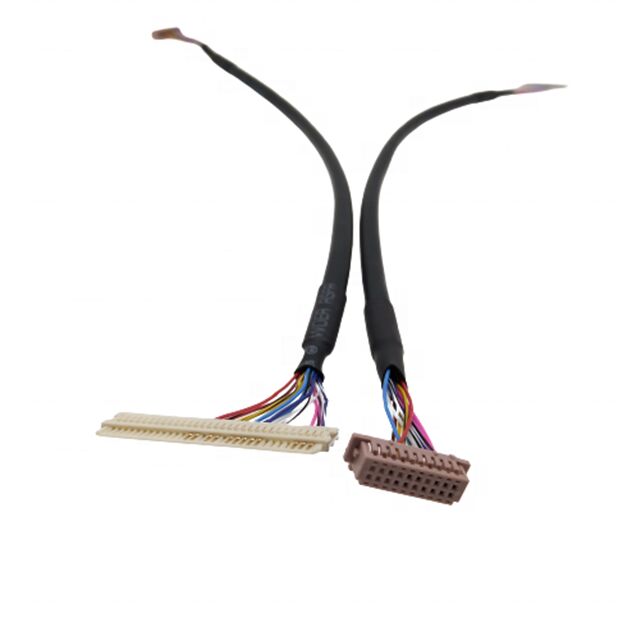

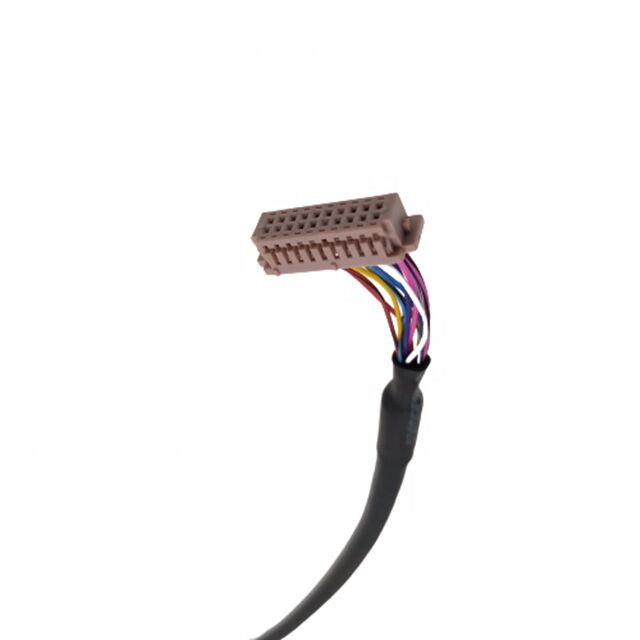

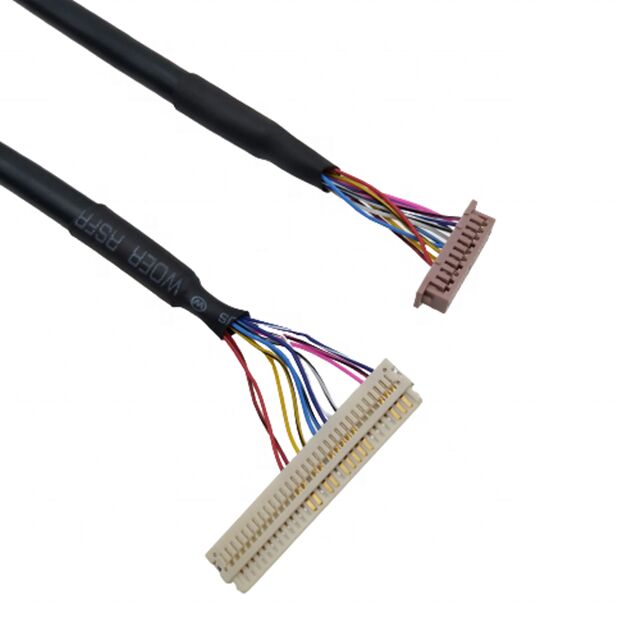

Name: General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board
Brand: Zhangjiagang RY Electronic CO.,LTD
SKU: RY-8163 lvds Jae Cable
Price: 6.10 USD
Availability: InStock

Home > Products > LVDS Cable Assembly >

General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

JAE FI-x30 30Pin LVDS cable

Hirose 20Pin DF13 shielded wire

Twisted LVDS cable for driver board

Place of Origin:

Jiangsu, China

Brand Name:

RY lvds Jae Cable

Certification:

RoHS

Model Number:

RY-8163 lvds Jae Cable

Request A Quote

General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

Product Details

Conductor Material:

Copper

Connector 1:

JAE FI-X30

Connector 2:

Hirose DF13

Pitch:

1.0mm / 1.25mm

Wire Type:

20276

Wire Length:

25CM

Gender:

Male To Female, Male To Male

Wire Size:

22-30AWG

Pins:

2-60pin

Cable Type:

32AWG,30AWG,28AWG,26AWG

Shield Type:

Single/Double/Non-shield

Cable Color:

Black/Grey

Cable Length:

50mm-15000mm

Processing Type:

Crimping, Pressing, Soldering

Connector Pitch:

0.3mm-4.2mm

Payment & Shipping Terms

Minimum Order Quantity

info@rygroup.net

Contact Now

Product Description

General LCD LVDS Screen Cable

JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

Product Specifications

Cable Type	32AWG, 30AWG, 28AWG, 26AWG LCD 20cores single/double shield cable LCD 32cores single/double shield cable LCD 20cores/32cores non-shield cable
Cable Color	Black/Grey
Connectors	JAE, HRS, JST, AMP, Dupont, ufl, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors
Cable Length	50mm - 15000mm
Processing Methods	Crimping, pressing and soldering types
Pin Out Connection	Customized per customer's request (provide LCD and main board datasheets)
Connector Pitch Range	0.3mm - 4.2mm
Performance Characteristics	Excellent signal transfer, clear picture quality, no shaking or transfer issues

Key Advantages

Direct manufacturing factory
Competitive pricing with quality assurance
Short lead times
ISO9001:2008 certified
OEM/ODM services available
ISO/RoHS compliant
100% electrical and performance testing

Applications

LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA/Camera/LCM/Notebook/Tablet PC/HDD

Company Profile

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
