Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
20728 20777 3298 3300 20729
Contact Us

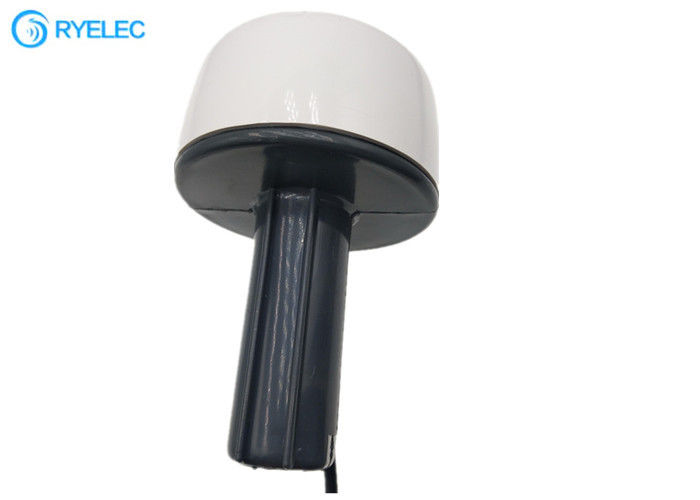

1575.42mhz GPS Navigation Housing Marine Aerial Signal Booster external Antenna
Key specification:
| Item | Specifications | |
| Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 5dBic(Zenith) | |
| V.S.W.R | ＜1.5 | |
| Impendance | 50Ω | |
| LNA | Gain | 42±2dB |
| Noise Figure | ＜1.3 | |
| Filter Insertion Loss | ＜3dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| Supply Voltage | 3~5V DC | |
| Current Consumption | 18~35mA | |
| V.S.W.R | ＜2.0 | |
| Mechanical | Cable | RG58 or others |
| Connector | N or others | |
| Radome Material | ABS | |
| Mounting Method | Screw | |
| Environmental | Size | 80*50mm |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP67 | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
3. How to choose the right shipping method?
For sample or small try order we suggest use Express transport such as: DHL, UPS, Fedex.
For production order which heavy we suggest by air or by sea.
For any further information welcome to contact our sales.
4. What's the payment?
We accept PayPal, Western union, Money Gram ,Escrow and T/T. If you want to pay via other terms, please kindly contact us.
Send your inquiry directly to us
