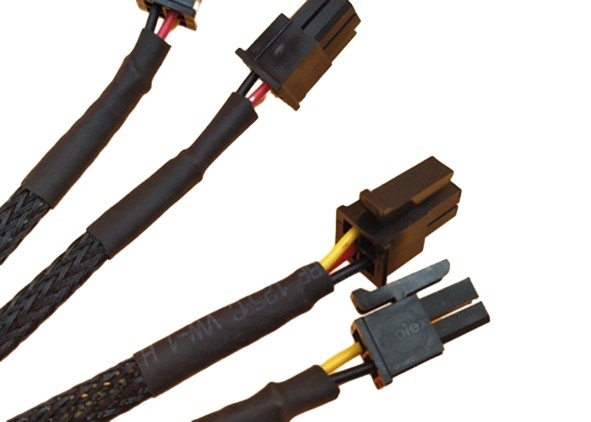

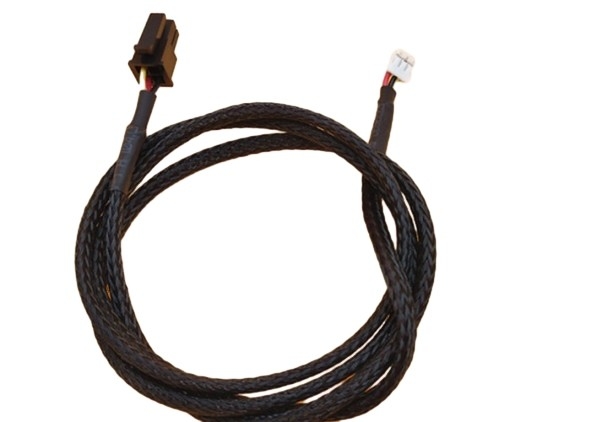

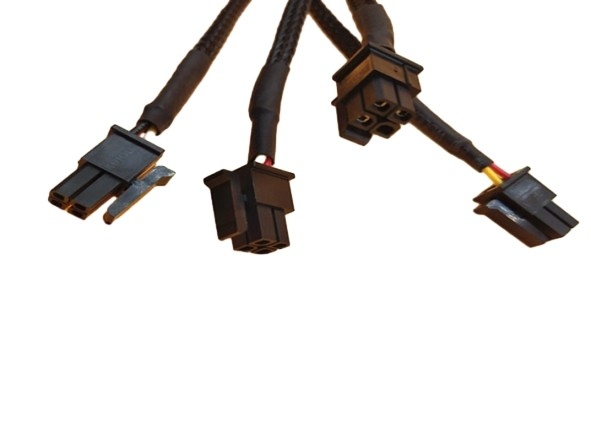

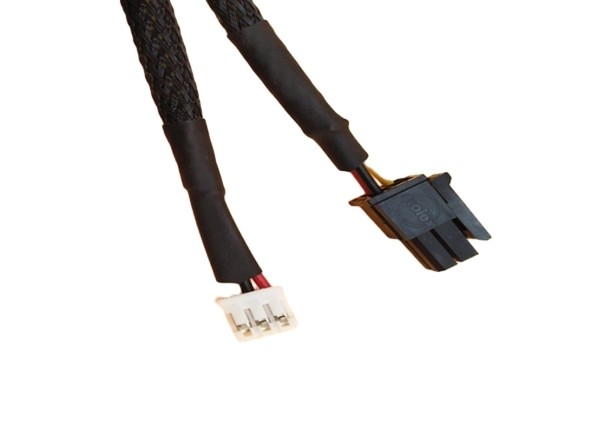

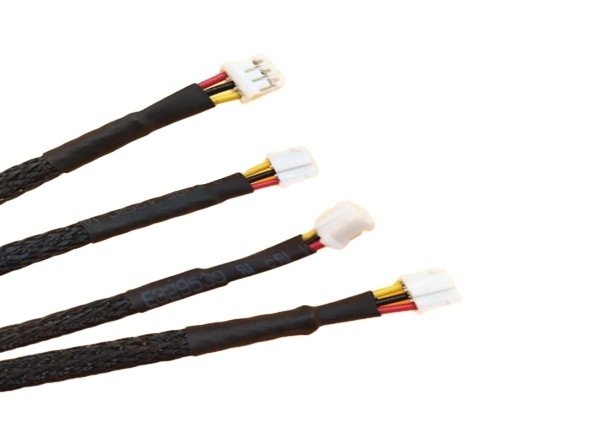

2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness

2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness

    • 2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness
    • 2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness
    • 2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness
    • 2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness
  • 2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-430252

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~6.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Pin: 4pin
    Application:: Electronic 1 Connector:: 43025-0400
    2 Connector:: Jst-ph Length:: Customized
    Samples:: Available Voltage Rating:: 30V





    2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst-Ph2.0 26awg Wire Harness



    Electrical Characteristics



    Items



    Specifications

    Compatible:



    Molex 43025/43045 series connector

    Pitch - Mating Interface:



    5mm

    Circuits:



    1-12P or 2*1-2*12P

    Applicable wire:



    AWG#18-#24 (Max.OD:1.85mm)

    Current Rating:



    5A

    Voltage Rating:



    250V

    Temperature Range:



    -40°C~+105°C

    Contact Resistance:



    10M Omega Max

    Insulation Resistance:



    1000M Omega Min

    Withstanding Voltage:



    1500V AC/minute

    Cable type



    UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type

    Cable color



    Optional

    Processing ways



    Crimping, pressing and soldering types.

    Pin out connection



    As per customer’s request



    Wire Harness Applications:



    1. Wire Harness for LCD
    2. Wire Harness for Display

    3. Wire Harness for Advertising machine

    4. Wire Harness for Monitoring

    5. Wire Harness for TV

    6. Wire Harness for Medical system/monitoring

    7. Wire Harness for Laptop
    8. Wire Harness for PDA
    9. Wire Harness for Digital camera



    Product Details:


    2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness

    2*2p Molex 43025 Black Connector Micro Fit 3.0mm Pitch To 3pin Jst - Ph2.0 26awg Wire Harness



    Our Company:


    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:


    1. can make the custom sample,some need to pay.

    2. OEM/ODM services are available.

    3. On time delivery and quick response.


    4. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    5. Good After-Sales Service: we could offer technical support or return service in short time.

    6. 1 Year Warranty.

    7. We are available with Alibaba Trade Assurance, you'll enjoy:
       •100% product quality protection
       •100% on-time shipment protection
       •100% payment protection for your covered amount



    FAQ:


    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

    2. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

    3. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

    4. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
