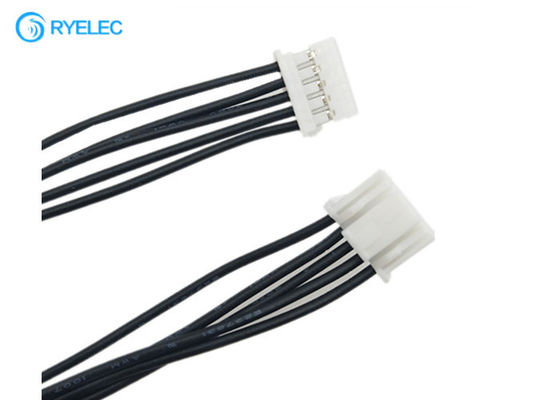

5 Pin PA Series PAP-05V-S Wire To Board Jst 2.0mm Pitch Connector To PAP Wire Harness

5 Pin PA Series PAP-05V-S Wire To Board Jst 2.0mm Pitch Connector To PAP Wire Harness

electronic wiring harness

custom cable assemblies

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-PAP-05

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Pin:
5pin
Application:
Electronic
1 Connector:
PAP-05V-S
2 Connector:
PAP-05V-S
Length:
Customized
Samples:
Available
Pitch:
2.0mm
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~4.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





5pin PA Series PAP-05V-S Wire To Board Jst 2.0mm Pitch Connector To PAP Wire Harness​





Electrical Characteristics



01 - Connection Type



Printed Circuit Board Connectors

02 - Product Type



Wire to Board Crimp style Connectors

03 - Pitch / Style



2.00mm

04 - Current rating



3A AC,DC

05 - Voltage rating



250V AC,DC

06 - Temperature range



-25 to +85 Degrees Celsius

07 - Available number of circuits



2 to 16

08 - Feature



Secure locking device
09 - PCB Mount Style

Surface Mount Technology (SMT)



Through-hole Technology (THT)



Cable



UL1015,UL1007,UL1061,





Wire Harness Applications:



1. Wire Harness for LCD
2. Wire Harness for Display

3. Wire Harness for Advertising machine

4. Wire Harness for Monitoring

5. Wire Harness for Back projection

6. Wire Harness for TV

7. Wire Harness for Medical system/monitoring

8. Wire Harness for Laptop
9. Wire Harness for PC and Computer



Product Details:
5 Pin PA Series PAP-05V-S Wire To Board Jst 2.0mm Pitch Connector To PAP Wire Harness 0

5 Pin PA Series PAP-05V-S Wire To Board Jst 2.0mm Pitch Connector To PAP Wire Harness 1


Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:

1. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

2. Fast Delivery Time :2~15 days, On-Time Delivery.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.

5. OEM/ODM service.

6. We are available with Trade Assurance, you'll enjoy:
   •100% product quality protection
   •100% on-time shipment protection
   •100% payment protection for your covered amount




FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
