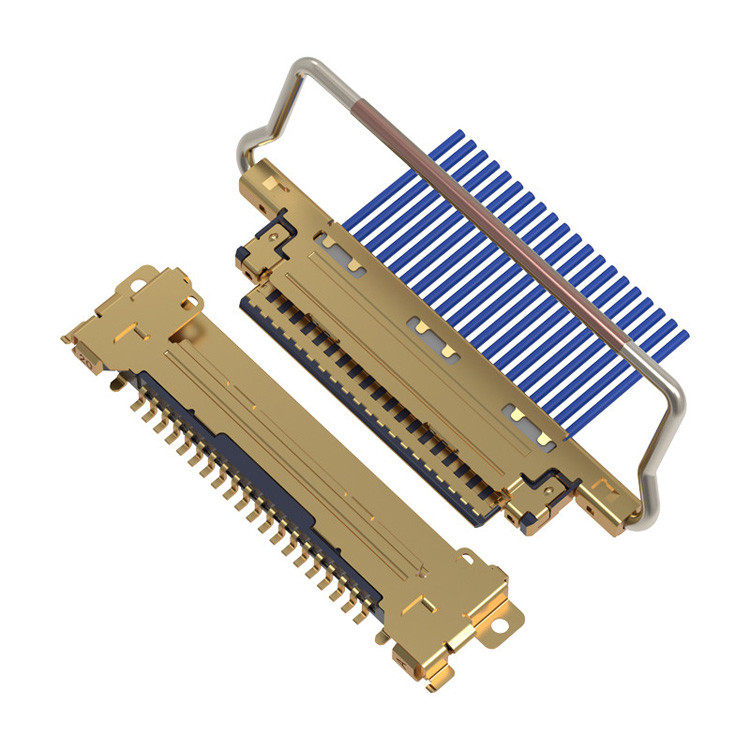

Fully Shielded CABLINE-VS 20pin 20453-220T-03 With Multi-Point Grounds To Prevent EMI Leakage

Fully Shielded CABLINE-VS 20pin 20453-220T-03 With Multi-Point Grounds To Prevent EMI Leakage

Fully Shielded micro coax cable

CABLINE-VS micro coax cable

20pin micro coax cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

CABLINE-VS 20pin

Contact Us

Request A Quote
Product Details
Mating Direction::
Horizontal
Contact Pitch::
0.50 Mm
Height::
1.10 Max (1.00 Nom.) ,
Depth::
5.80 Mm Depth
Width Formula::
7.55+(0.5*?p) Mm
Pin Count::
20 30 40 50
Micro-Coaxial Cable (AWG)::
#36 #38 #40 #42 #44 #46
Discrete Cable (AWG)::
#32 #34 #36 #38 #39 #40 #42 #44 #46
High Light::
20pin Micro Coaxial Cable Plug, Horizontal Mating Micro Coaxial Cable Plug, 5.80 Mm Depth Micro Coax Plug
Payment & Shipping Terms
Minimum Order Quantity
quantity can be negotiable
Price
Most favorable
Packaging Details
PE inner, carton outer
Delivery Time
Shipped in 3-9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union,
Supply Ability
10000pcs
Product Description

20453-220T-03 20454-220T 2574-0202 2576-120-00 20455-A20E-76

PLUG FOR micro coaxial CABLE ASSEMBLY



Mating Direction Horizontal
Contact pitch 0.50 mm
Height 1.10 Max (1.00 Nom.) ,
Depth 5.80 mm
Width Formula 7.55+(0.5*?p) mm
Pin count 20 30 40 50
Micro-Coaxial Cable (AWG) #36 #38 #40 #42 #44 #46
Discrete Cable (AWG) #32 #34 #36 #38 #39 #40 #42 #44 #46
Current rating 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts
Applicable Standards (Reference Only) USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards
Mechanical lock Yes
Full shielding (ZenShield®) No
