Place of Origin:
China
Certification:
CE,ROHS
Model Number:
RY-DF52608
Contact Us

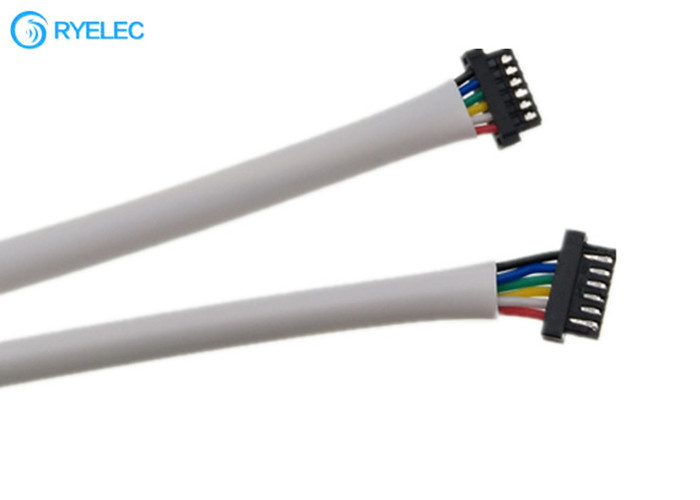

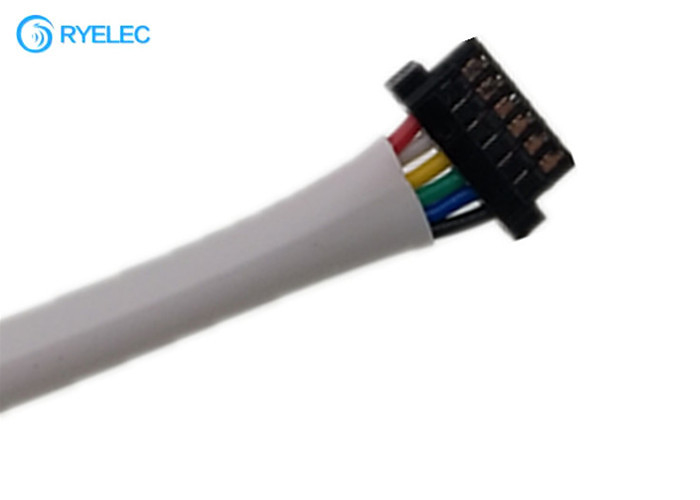

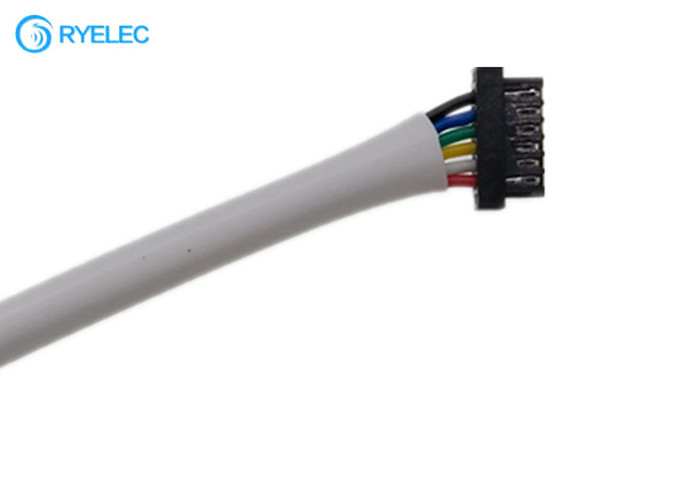

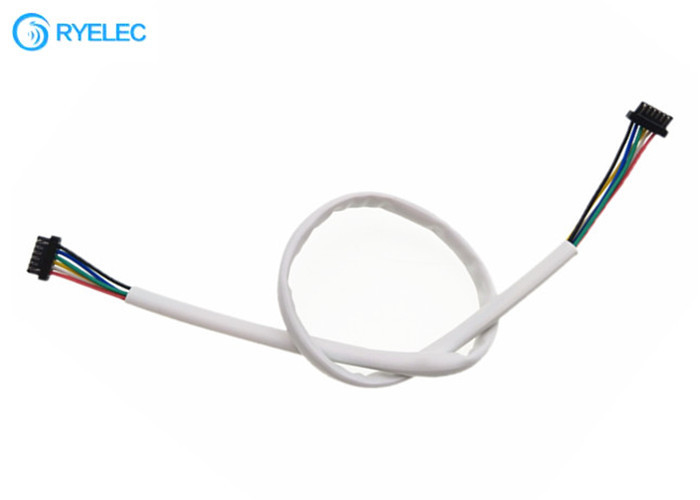

Original DF52 6P DF52-6P-0.8C Connector 08MM Wire Harness White PVC Tube
Electrical Characteristics:
| Connector Type |
Plug, Receptacle, Contact
|
| Cable Assembly |
Yes
|
| Number of Positions |
2, 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 17, 20
|
| Number of Rows (Interface) |
1
|
| Mounting Pitch |
0.8 mm
|
| Contact Pitch |
0.8 mm
|
| Rated Current |
1.2, 1.5, 2, 2.5, 3 A
|
| Rated Voltage (AC) |
AC 100 V
|
| Rated Voltage (DC) |
DC 100 V
|
| Mating/Unmating Cycles |
10, 20
|
| Mounting Style |
SMT
|
| Connector Orientation |
Straight, Right angle
|
| Mounting Side |
Standard on-Board
|
| Contact Plating |
Tin
|
| Wire Termination Method |
Crimping
|
| Recommended Wire Type |
Discrete wire
|
| Recommended Min. Wire Size (AWG) | AWG 30, 32 |
| Recommended Max. Wire Size (AWG) | AWG 28 |
| Operating Temperature (Max.) |
85 ℃
|
| Operating Temperature (Min.) |
-55, -40 ℃
|
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Application:
Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.
2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.
3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals and etc.replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. and short delivery
4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.
5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.
Related Products:
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3. Can you do the design for us?
Yes. As we have many type of wire harness, pls sent your own drawing or pic for our reference .So that we can provide the quotation and spec more precisely and promptly.
4.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.
5. What's your payment terms?
100 % T/T before delivery
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
