Place of Origin:
China
Certification:
CE,ROHS
Model Number:
RY-200932
Contact Us

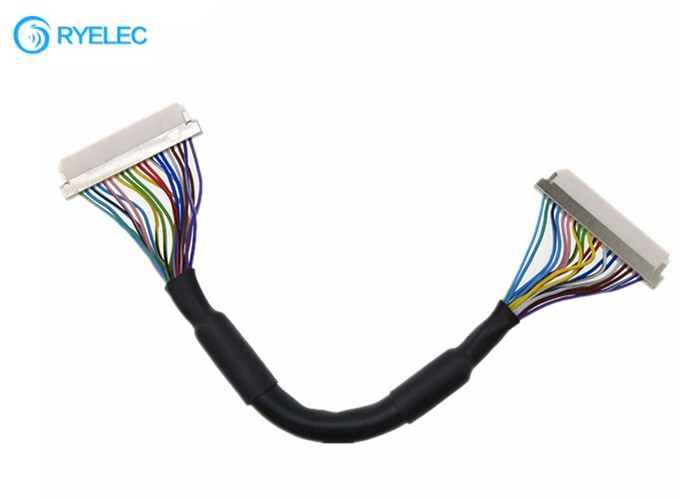

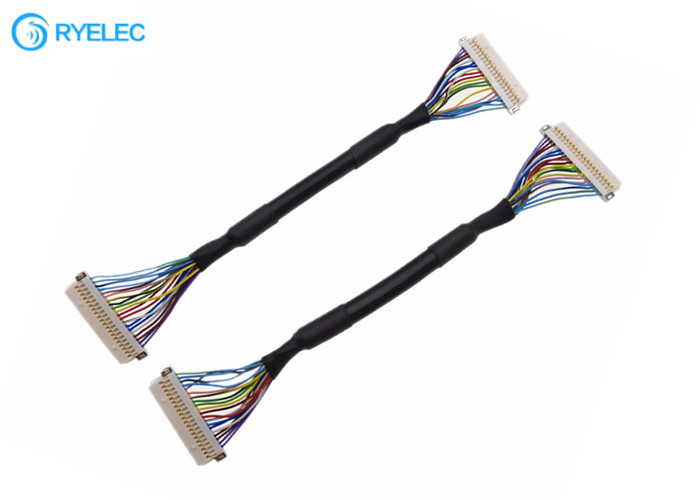

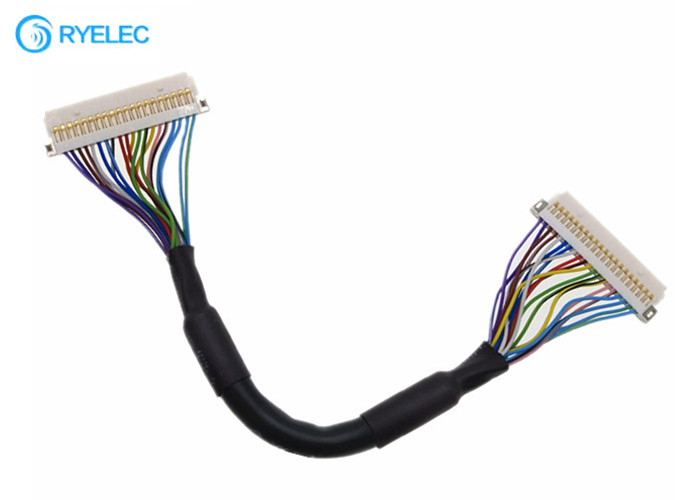

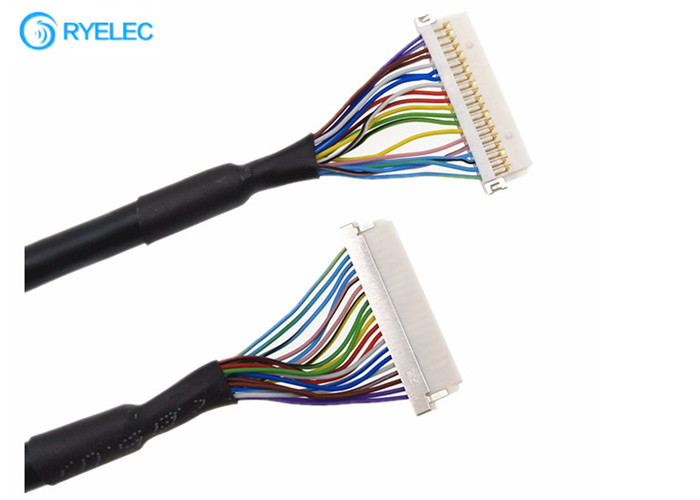

Cable Suspension Assembly Electronic Hirse Pcb Lvds 20pin Df19 1.0 Mm Pitch Board For Lcd Panel
Electrical Characteristics:
| Product Specification |
1.ROHS, JST pin header, 1.00mm pitch connector 2.PCB Assembly with 3.0mm SMD/SMT Pin Header 3.100% inspecting before shipment 4.ROHS, SGS, ISO complicanted 5.Resistant Temperature/Moisture/Salt-fog/Shock/Vibration |
| Techonological Specification : |
Current rating:1A AC,DC Voltage rating: 50V AC,DC Temperature range:-25°C to +85°C Contact resistance:100mΩ/Min. Insulation resistance:1000mΩ Withstand voltage:500V AC/minute Meterial:HSG:PBT,UL94V-0,INSULATOR :NYLON9T, CONTACT MATERIAL:Phospor Bronze/Tin-plated. Pin:single row:2 to 25 pins Wire Range: AWG#28-#32 |
| Type: |
1. 1.00mm single row public /female housing, 2. 1.00mm dual row public /female housing 3. 1.00mm public /female terminal(Good for AWG#20-#24) 4. 1.00mm DIP(PTH) single /Dual Row straight angle /Right angle wafer 5. 1.00mm SMT single/Dual row straight angle/Right angle wafer |
| Circuit/Pin: | 2-25 |
| Pitch-mating interface: | 1.00mm pitch wire to board system |
| About MX1.25mm |
1.HRS DF19 1.00mm connector 2.equal of famous connector sell at low price 3.professional OEM on cable 4.Application Designed for low-current, low-density applications requiring design flexibility, 1.00mm connectors are ideal for power applications up to 1.0A per circuit. Additionally, these connectors are available in single row or dual row 2- to 25-circuit options. Signal, wire to board 5.Equivalent/substitute/equal of molex female male connectors 6.Rohs,UL are compliants |
| Cable | 30awg/28awg/….. |
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Application:
Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.
2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.
3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals and etc.replace JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. and short delivery
4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.
5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.
Related Products:
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How long will it need for completing an order?
For small order and products in stock, it will take less than 3 days for preparation and delivery, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
3. Can you do the design for us?
Yes. We have strong ability to develop new products and we possess the ability of ODM and OEM that we can customize products based on customer needs.
4.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.
5. What's your payment terms?
100 % T/T before delivery
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Send your inquiry directly to us
