Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
CABLINE-VS II 20846-020T-01
Contact Us
Video
Video
CABLINE-UA II 20496 20497 032T-40 20498-032E-41 2679-032-10

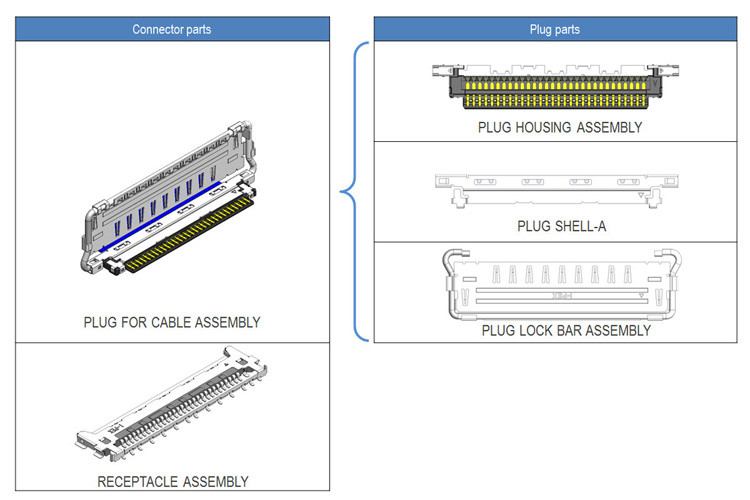

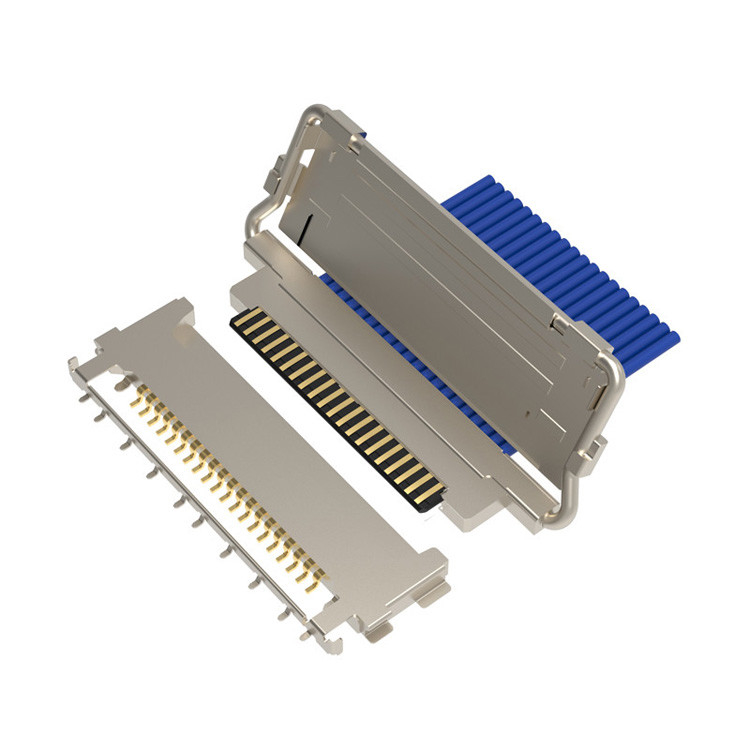

receptacle coaxial cable plug metal housing parts cover
| Mating Direction | Horizontal |
| Contact pitch | 0.50 mm |
| Height | 1.20 Max |
| Depth | 6.70 mm |
| Width Formula | 6.85+(0.5 *?p) mm |
| Pin count | 20 30 40 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.24A AC/DC [AWG #42] per contact 0.3A AC/DC [AWG #40] per contact 0.5A AC/DC [AWG #38] per contact 0.8A AC/DC [AWG #36] per contact 1.0A AC/DC [AWG #34] per contact for power 1.0A AC/DC [AWG #32] per contact for power |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Mechanical lock | Yes |
| Full shielding (ZenShield®) | Yes |
