Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
20542-020E-01
Contact Us

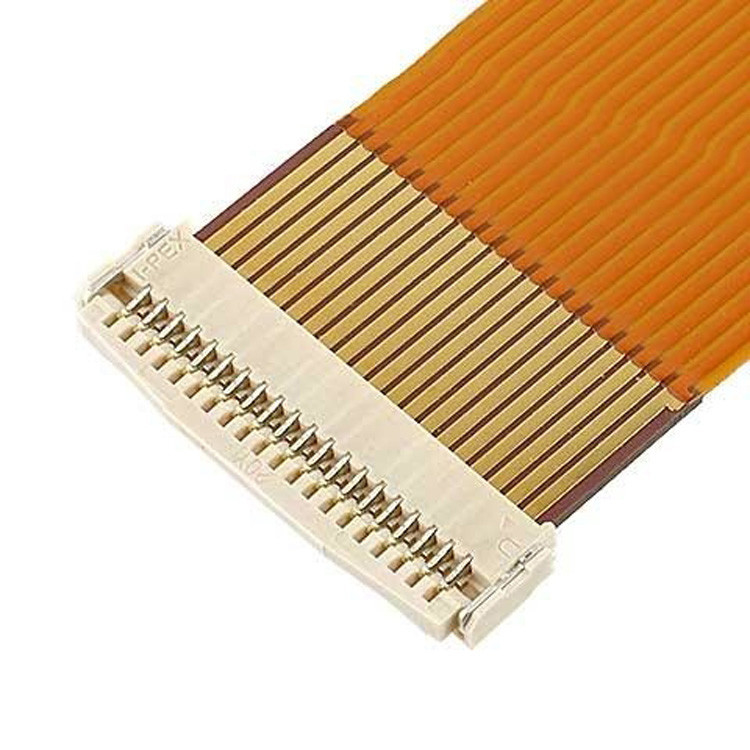

IPEX 20542 Series 20542-020E-01 FPC Flexible Flat Cable 0.5mm Pitch
| Product Type |
Back Flip
|
| Mating Direction |
Horizontal
|
| Contact pitch |
0.50 mm
|
| Height |
1.10 Max (1.00 Nom.) ,
|
| Depth |
3.50 mm
|
| Width Formula |
1.7+(0.5*?P) mm
|
| Pin count |
4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 40 50 54
|
| FPC/FFC Thickness |
0.30
|
| Current rating |
0.5A / Signal pin
|
| Full shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
| Shielded FPC / FFC |
No
|
| Other Features |
With Hold Down
|
FFC Flat Cable Application:
1. FFC wiring harness for Car DVD
2. FFC wiring harness for Displayer
3. FFC wiring harness for Sound;Box
4. FFC wiring harness for Airbag line
5.FFC wiring harness for Inkjet printer
6. FFC wiring harness for Flat screen;TV
7. FFC wiring harness for Digital camera
8.FFC wiring harness for Pictorial machine
9. FFC wiring harness for liquid crystal display
10. FFC wiring harness for Printer;Scanner;FAX machine;Copier.
