Universal LVDS EDP Cable DF20 1.0MM Pitch 40P To 2P Dupont 2.54MM LCD

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-40p-13467
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: USD1.0~8.0
Packaging Details: sample size:18*12*9cm,40*40*20cm..etc
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1000000pcs
Contact Now

Detail Information

Application: Automobile Sample: Sample Can Be Provided For Evaluating
Connector 1: DF20A-40DS-1C Connector 2: Dupont 2.54
Pitch: 1.0/2.54mm Test: 100% Testing Inspection
Certification: UL/CE/ROHS Service: Design And Sample Prototype Service
Wire Type: Signal Wire Wire AWG: According To Customers'Request
High Light:

Dupont 2.54MM LVDS EDP Cable


Universal LVDS EDP Cable


Signal LCD LVDS Cable

Product Description


HRS DF20A-40DS-1C DF20 1.0MM Pitch 40P To 2P Dupont 2.54MM LCD Universal Lvds Edp Cable


Electrical Characteristics:


Cable Length

250mm 500mm or as your request

Cable type

High temperature telfon wire

Processing ways


Cable color

Multi color

End 1

I-PEX 20454-40P or Equivalent, mate with 20455-40P

End 2

DF20-30P or Equivalent, mate with DF20-30P pcb connector

Connectors Brand

HRS, I-PEX ,For reference:JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors etc




Good transferring, clearly pictures, no shaking, and no transfer issues


ISO9001:2008, RoHS, UL

Performance Test

100% electrical and electricity performance test


Degree -40°C to +85°C




This cable generally use for LED screen, because it integrated cross flow plate, so you do not need to buy high pressure article lamp
This cable is generally used for small screens and other 10.1/15.6/14/14.1,etc Inch LED


What are LVDS Cable Assemblies?
Low-Voltage Differential Signaling (LVDS) is a technology addressing the needs of today’s high performance data transmission applications. LVDS is a low voltage differential signaling system which is an electrical system and can run at very high speeds over inexpensive, twisted-pair, stranded copper cables. These twisted pairs maintain the 100ohm differential impedance requires by LVDS data signals. LVDS has become a preferred differential standard due to its capability of delivering high data rates while consuming less power than any other interfacing technologies. LVDS uses high-speed analog circuit techniques to provide multi gigabit data transfers on copper interconnects and is a generic interface standard for high-speed data transmission. This is why the LVDS standard is becoming the most popular differential data transmission standard in the industry.


The benefits of LVDS include:

  • Compatible to Low-voltage power supply
  • Low noise generation
  • High noise rejection
  • Robust transmission signals
  • Ability to be integrated into system level IC


Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.

4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.


Product Details:

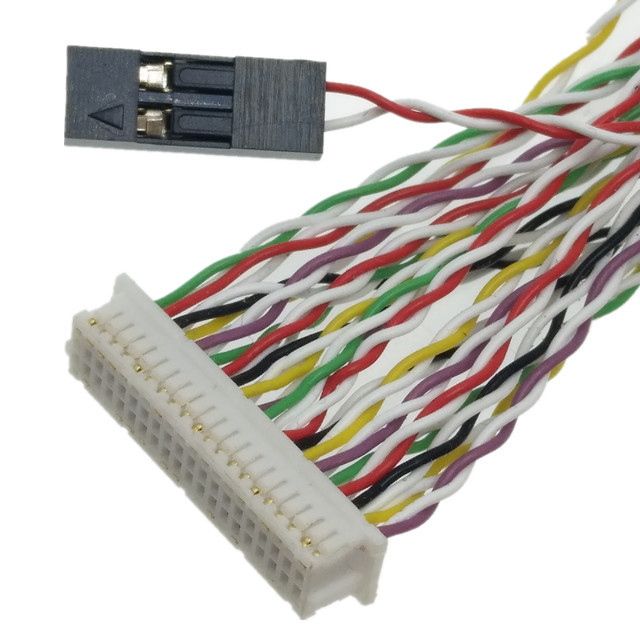

Universal  LVDS EDP Cable DF20 1.0MM Pitch 40P To 2P Dupont 2.54MM LCD 0

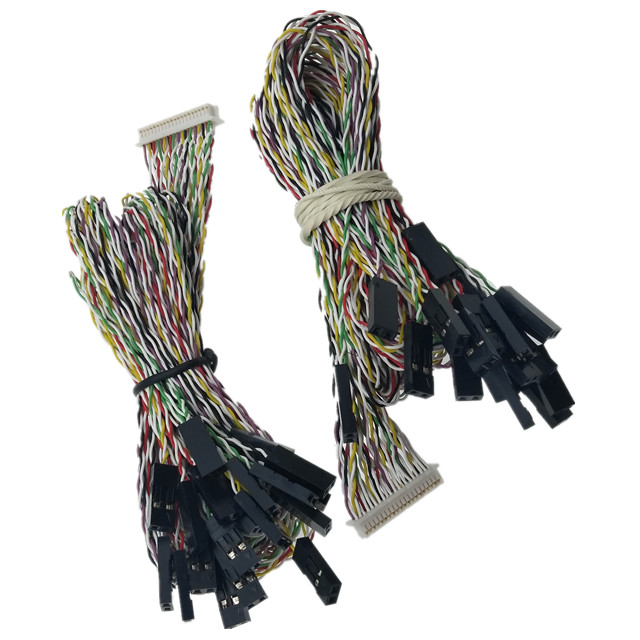

Universal  LVDS EDP Cable DF20 1.0MM Pitch 40P To 2P Dupont 2.54MM LCD 1

1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.


Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

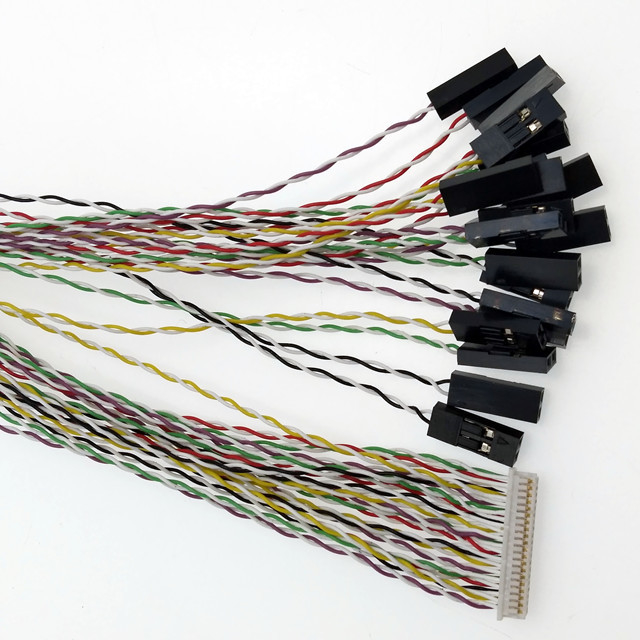

Universal  LVDS EDP Cable DF20 1.0MM Pitch 40P To 2P Dupont 2.54MM LCD 2
