Place of Origin:
China
Brand Name:
RY
Certification:
CE
Model Number:
MC4
Contact Us

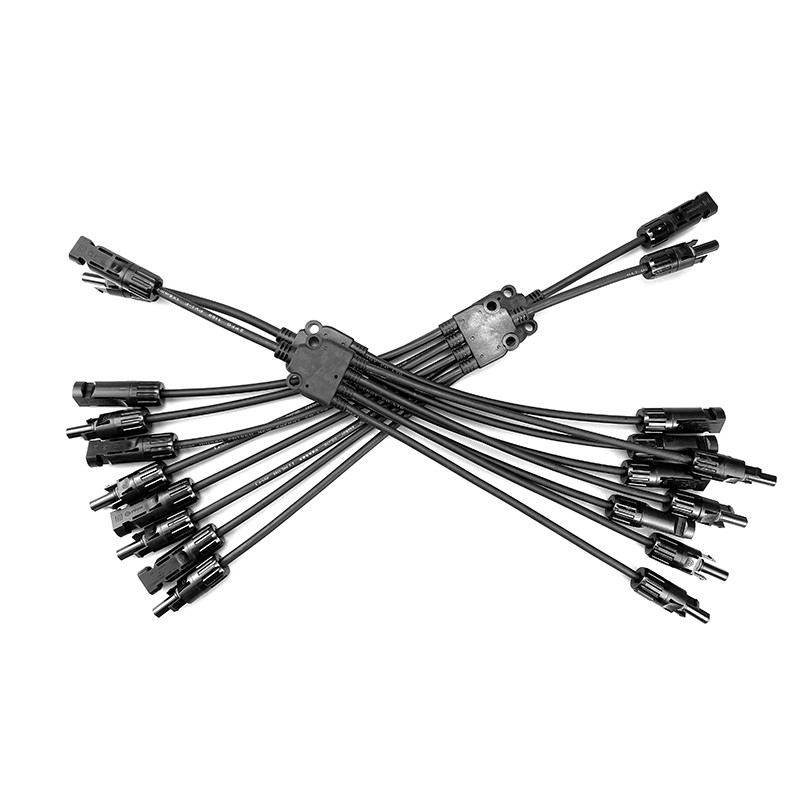

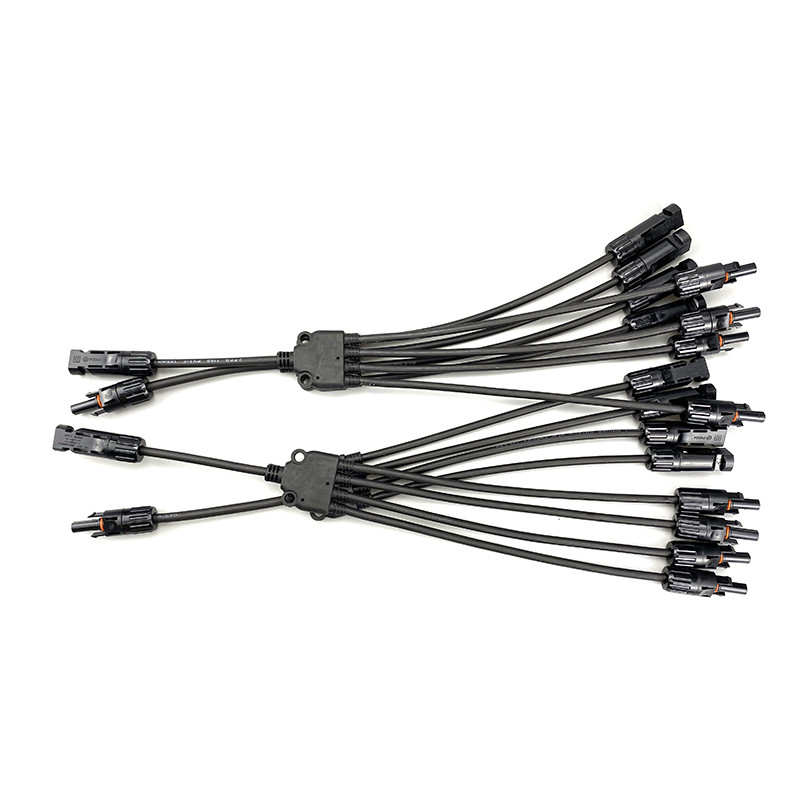

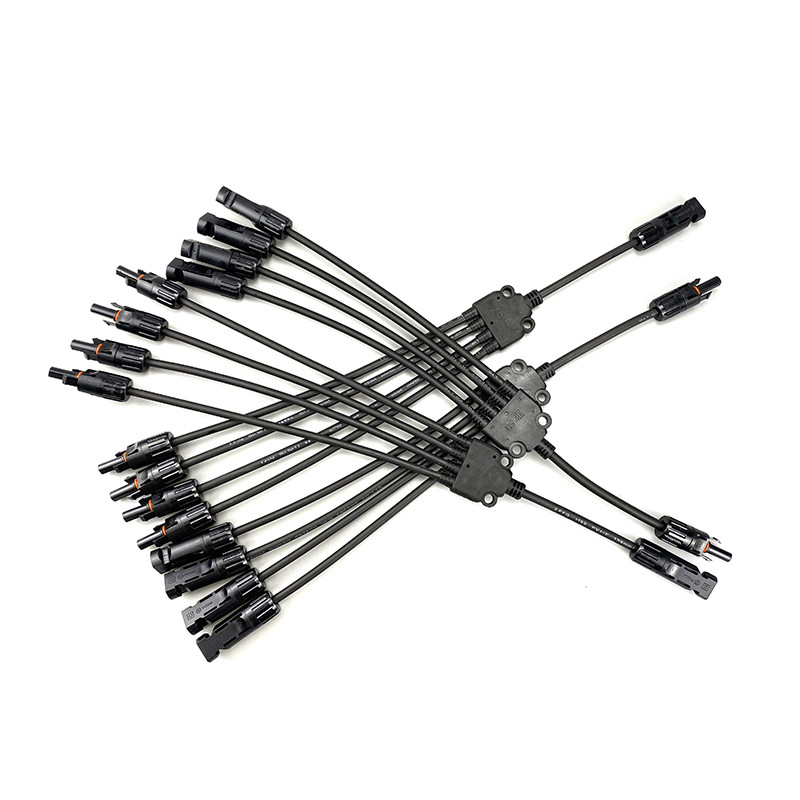

MC4 R4 Y Branch Solar Connector 1 To 4 Split PV Connector solar panel connector
| Rate voltage | 1000V |
| Rated current | 25A(2.5mm2) , 30A(4mm2,6mm2) |
| Test voltage | 6KV(50Hz) |
| Protect degree | IP67 |
| Insulation material | PPO |
| Contact material | Copper sliver plated |
| Operating temperature | -40°C~+90°C |
| Safe class | 2 |
| Flame class | UL94-V0 |
| Contact resistance of plug connectors | ≤5mΩ |
| Insertion force | ≤50N |
| Withdraw force | ≥50N |
| Suitable cable | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Locking system | Snap in |
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.
4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
