4Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System

4Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System

DC Compatible Solar PV Connecting Cable

Photovoltaic 4Mm2 DC Solar PV Cable

10Mm2 DC Solar PV Connecting Cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE

Model Number:

Solar special cable

Contact Us

Request A Quote
Product Details
Feature 1::
Provides A Quick And Easy Parallel Wiring Solution For Solar Pa
Feature 2::
Compatible With All Solar Connectors
Feature 3::
Waterproof
Feature 4::
Dustproof、dc Cable For Solar Pv
Model Number::
Solar Cable
Type::
LOW VOLTAGE
Conductor Material::
Copper
Product Name::
4MM 6MM 10MM 16MM 35MM 240MM PV Cable Solar DC
Keywords::
Solar Cable 4MM 6MM 10MM 16MM 35MM 240MM
Color::
Customized
Certificate::
TUV
Rated Voltage::
0.6/1KV AC 1500V DC
Working Temperature::
-40℃-125℃
Payment & Shipping Terms
Minimum Order Quantity
100 Meter/Meters
Price
$0.35 - $0.45
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Delivery Time
Shipped in 15 days after payment
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
1000000pcs
Product Description

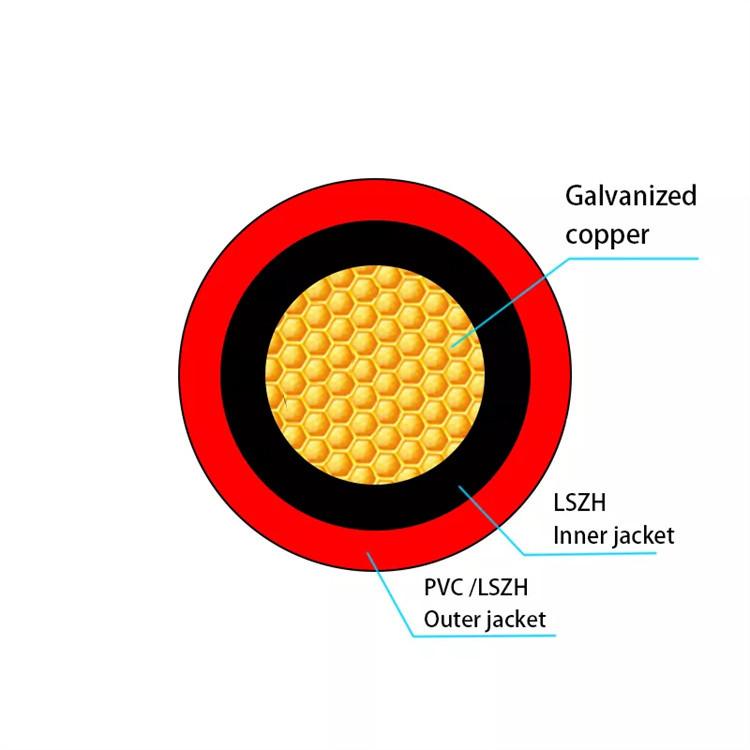

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.



Rating Voltage
DC: 1 500V / AC: 1.0 kV
Temperature
-40°C-- +90°C
Max. Temperature at Conductor
120℃
Protection Class
II
Conductor
Tinned annealed copper
Insulation
120°C XLPO, white
Jacket
120°C LSZH, black or red
Certification
TUV (Tested according to: EN 50618:2014 and IEC 62930(ed.1) )




No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm
Insul.
Thick. (mm)
Current Aarring Capacity (A)
1x1.5
30/0.25
1.58
4.9
30
1x2.5
50/0.256
2.06
5.45
41
1x4.0
56/0.3
2.58
6.15
55
1x6
84/0.3
3.15
7.15
70
1x10
142/0.3
4.0
9.05
98
1x16
228/0.3
5.7
10.2
132
1x25
361/0.3
6.8
12.0
176
1x35
494/0.3
8.8
13.8
218
1x50
418/0.39
10.0
16.0
280
1x70
589/0.39
11.8
18.4
350
1x95
798/0.39
13.8
21.3
410


4Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 0



4Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 14Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 24Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 34Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 44Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 5

4Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 6

4Mm2 DC Solar PV Cable Compatible 10Mm2 Connecting Photovoltaic System 7
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.



FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.



Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
