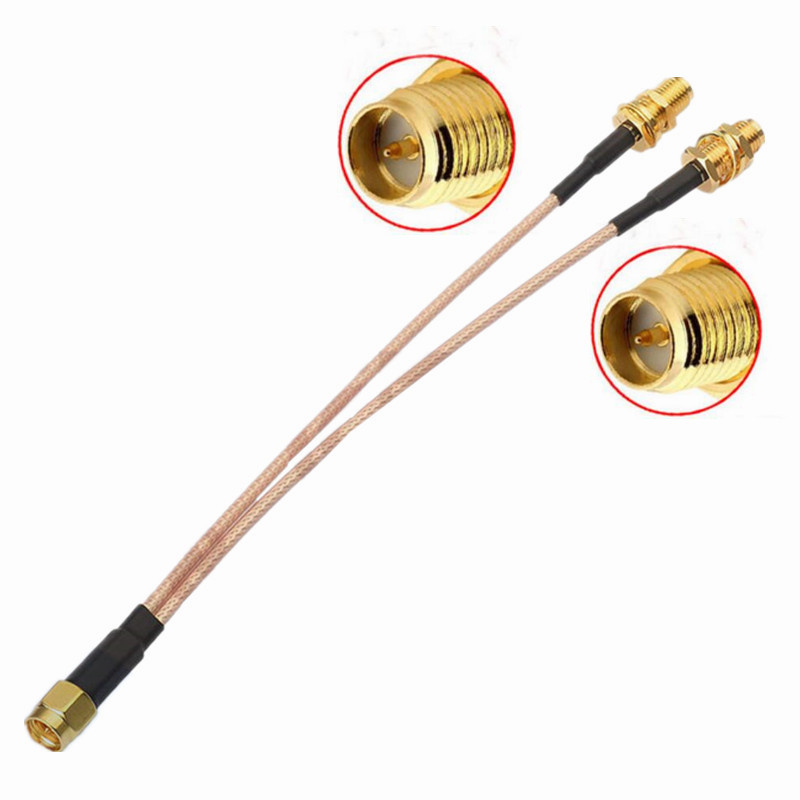

75 Ohm RF Cable Assemblies with <0.3dB Insertion Loss

Product Description:

RF Cable Assemblies are Radio Frequency Assembly Systems designed to provide custom RF Cable Assembly Solutions. Our range of RF Cable Assemblies are designed to meet the highest standards in the industry, providing reliable RF Cable Connection Assemblies for a variety of applications. We offer customized RF Cables in different cable lengths, with impedance options of 50 Ohm and 75 Ohm, and with a variety of connectors including SMA, BNC, TNC, N, F, UHF, with plating options of Nickel and Gold. Our RF Cable Assemblies are designed to ensure the highest performance and durability for all of your needs.

Features:

• Product Name: RF Cable Assemblies
• Frequency Range: DC-6GHz
• Cable Length: Customized
• Cable Type: RG58, RG59, RG174, RG316, LMR100, LMR195, LMR200, LMR240, LMR400
• VSWR: <1.5
• Keywords: Radio Frequency Assembly Systems, RF Cable Connection Assemblies, Radio Frequency Cable Assemblies

Technical Parameters:

Applications:

RF cable assemblies enable the transmission of radio frequency signals in a wide range of applications, from telecommunications to test and measurement equipment. Our RF cable assemblies offer a frequency range of DC-6GHz, with an extensive selection of connectors, including SMA, BNC, TNC, N, F, and UHF. Our assemblies are designed for high durability, with up to 500 cycles of operational use, and superior return loss of >20dB. We also offer customized cable lengths to meet the exact requirements of your application.

Our RF cable assemblies provide reliable signal transmission and superior performance, making them ideal for a variety of applications, including telecommunication, test and measurement, automotive, medical, and aerospace. With our RF cable assembly solutions, you can trust that your signal transmission needs are met with maximum efficiency and durability.

Customization:

Support and Services:

At ABC Co., we provide comprehensive technical support and services for our RF Cable Assemblies. Our team of experienced professionals can provide assistance in the areas of:

• Product selection and application.
• Installation and troubleshooting.
• Design and customization.
• Maintenance and repair.
• Training and support.

We strive to ensure our customers have the best possible experience when using our RF Cable Assemblies and are available to answer any questions or provide assistance.

Packing and Shipping:

Packaging and Shipping of RF Cable Assemblies:

• The RF cable assemblies are packed in heat-sealed poly bags.
• The RF cables are then labeled and placed in boxes for shipping.
• The boxes are then secured with packing tape to prevent any damage during transit.
• The boxes are then shipped via ground, air, or sea depending on customer requirements.

FAQ:

Q1: What is RF Cable Assemblies?

A1: RF Cable Assemblies are coaxial cables that are designed to connect electronic components in radio frequency (RF) applications.

Q2: What are the common applications of RF Cable Assemblies?

A2: RF Cable Assemblies are commonly used in antennas, telecommunications, home theater systems, and other RF-related applications.

Q3: What are the types of RF Cable Assemblies?

A3: RF Cable Assemblies are available in several different types including coaxial, flex, and rigid cables.

Q4: How are RF Cable Assemblies connected?

A4: RF Cable Assemblies are typically connected using crimp connectors, solder connectors, or compression connectors.

Q5: What material is used for RF Cable Assemblies?

A5: RF Cable Assemblies are typically made of copper, aluminum, or silver-plated copper.
