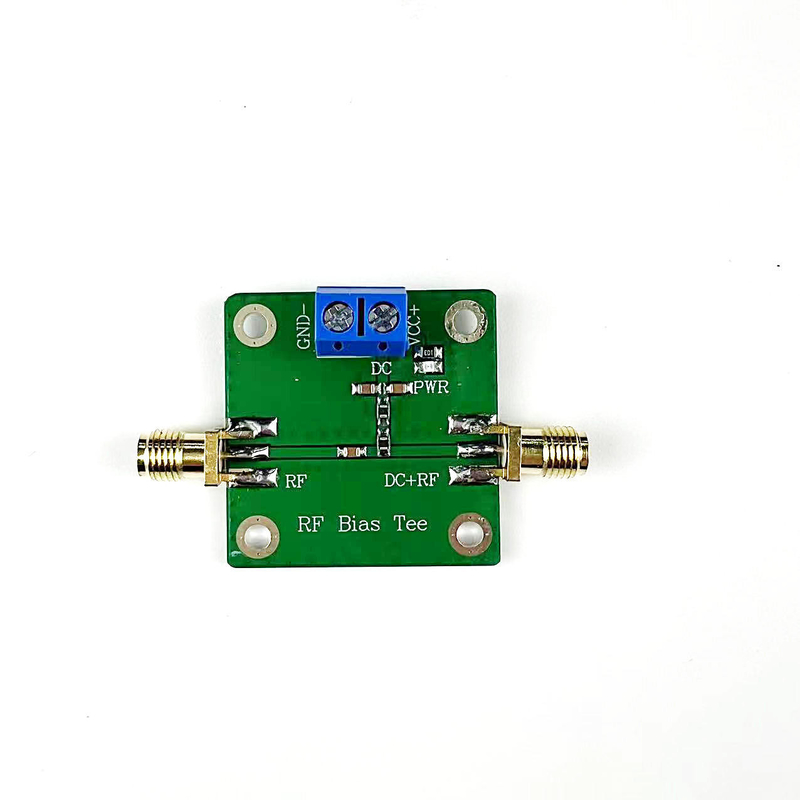

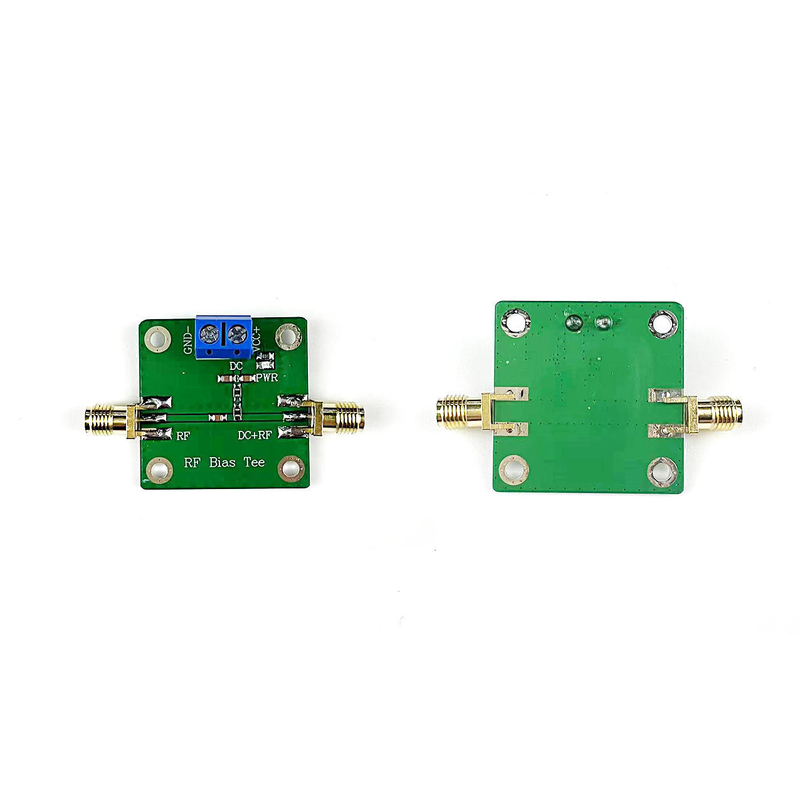

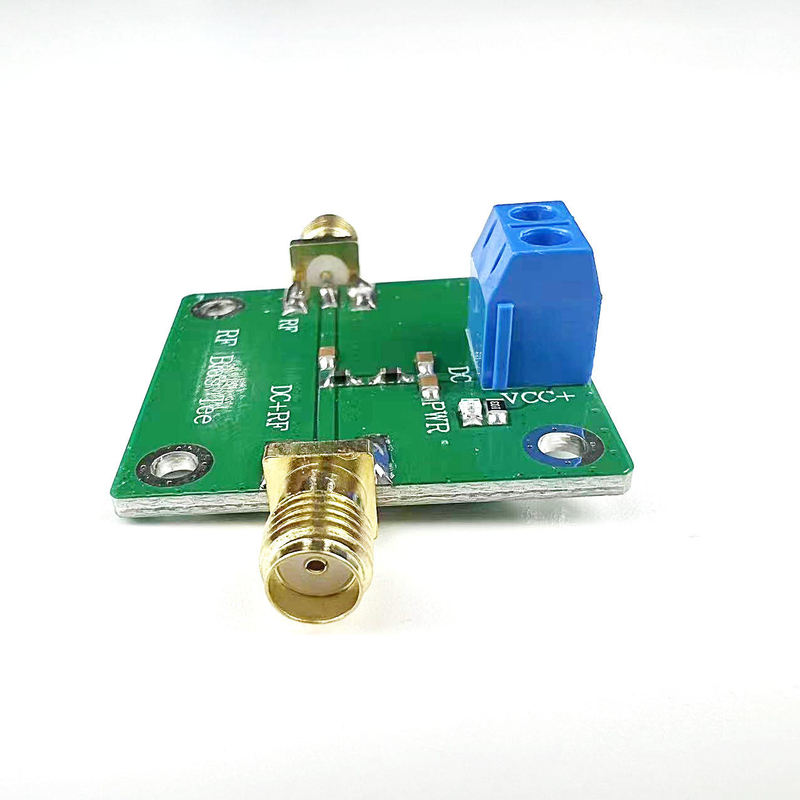

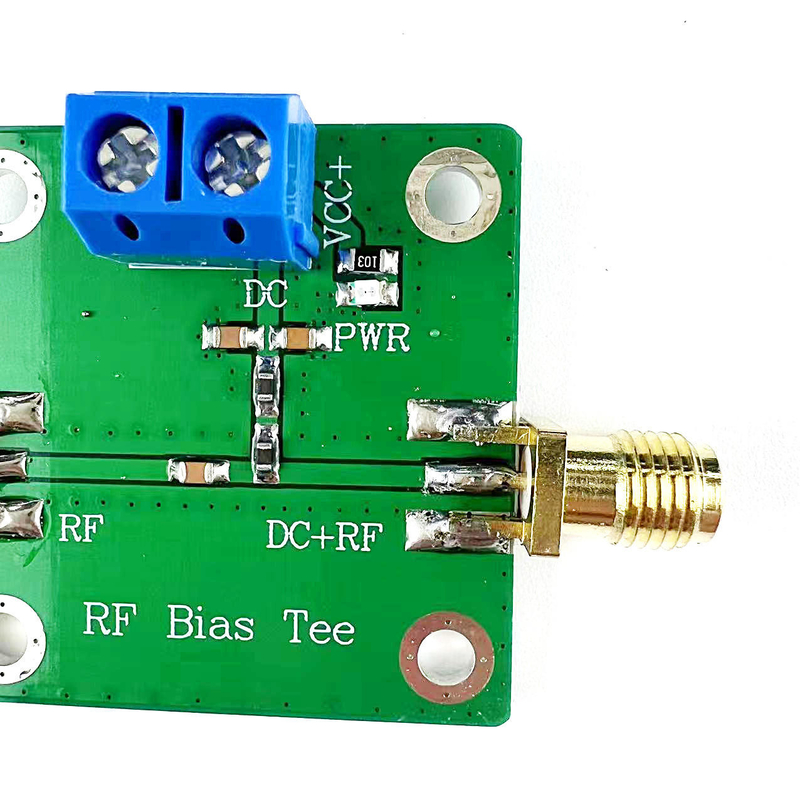

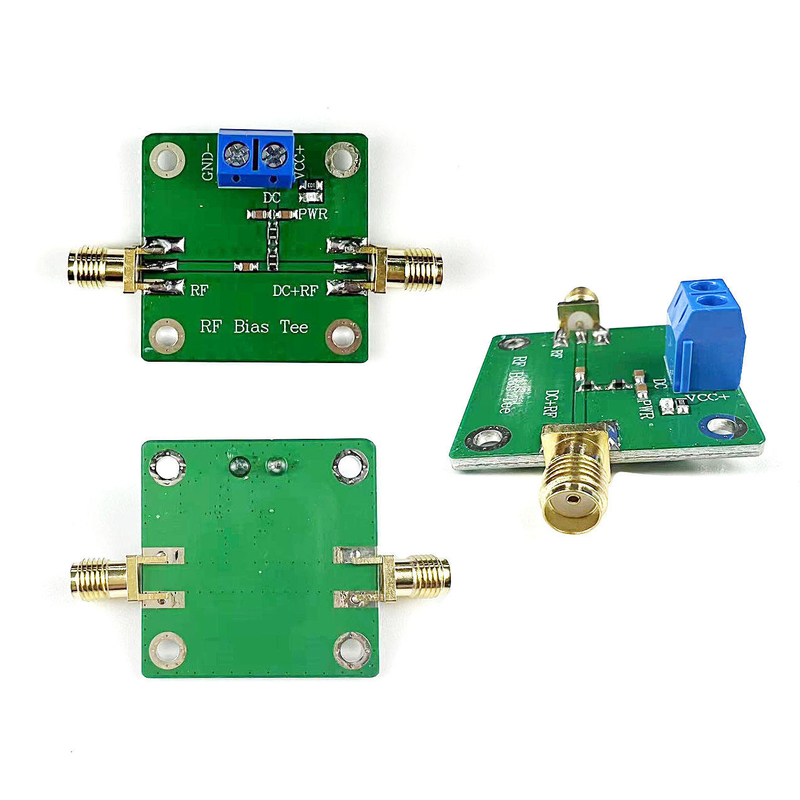

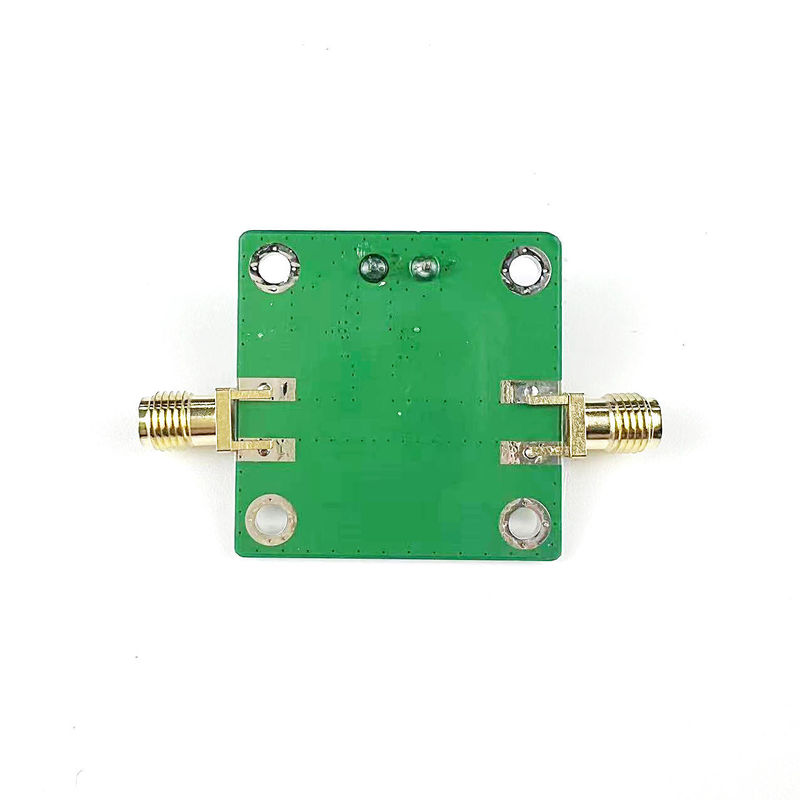

RF Bias Tee Feed Wideband Microwave DC Blocker 10-6000MHz 6GHz for HAM Radio RTL SDR LNA Low Noise Amplifier

RF Bias Tee Feed Wideband Microwave DC Blocker 10-6000MHz 6GHz for HAM Radio RTL SDR LNA Low Noise Amplifier

10-6000MHz RF Bias Tee

6GHz RF Bias Tee

Wideband Microwave RF Bias Tee

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-051003

Contact Us

Request A Quote
Product Details
Model Number:
Bias Tee Module
Application:
Experimental Modules
Type:
Integrated Circuit
Dissipation Power::
500mA
Payment & Shipping Terms
Minimum Order Quantity
Discussable
Price
USD2.90-6.10
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000pcs
Product Description

Electrical Characteristics:

1. Active antenna RF power supply
2. The output of the wideband amplifier is blocked
3. Communication data is injected through the RF side
4. Frequency range: 10 - 6000MHz 2. Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz
5. Maximum voltage: 50V
6. Maximum current: 500mA
7. RF connector: SMA-K (outer screw inner hole)
8. System impedance: 50 ohms
9. Dimensions: 33mmx33mm without connectors


RF Bias Tee Feed Wideband Microwave DC Blocker 10-6000MHz 6GHz for HAM Radio RTL SDR LNA Low Noise Amplifier 0RF Bias Tee Feed Wideband Microwave DC Blocker 10-6000MHz 6GHz for HAM Radio RTL SDR LNA Low Noise Amplifier 1
