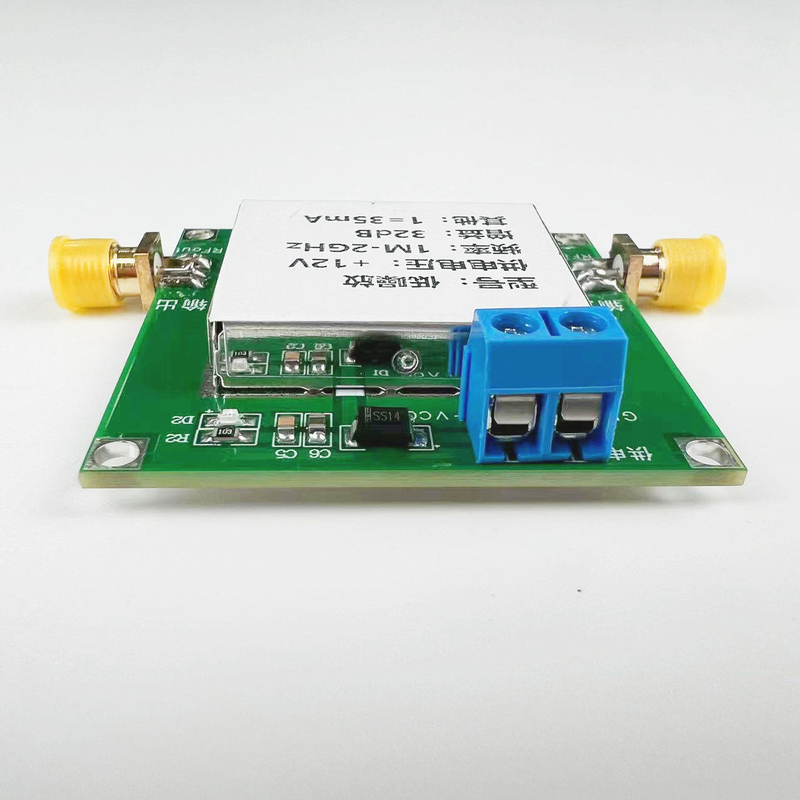

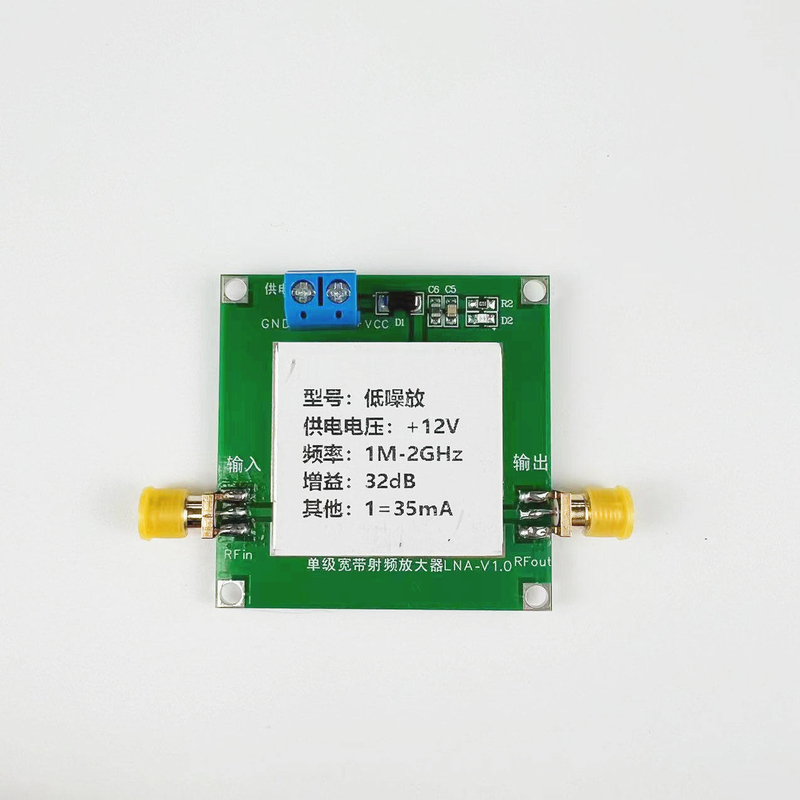

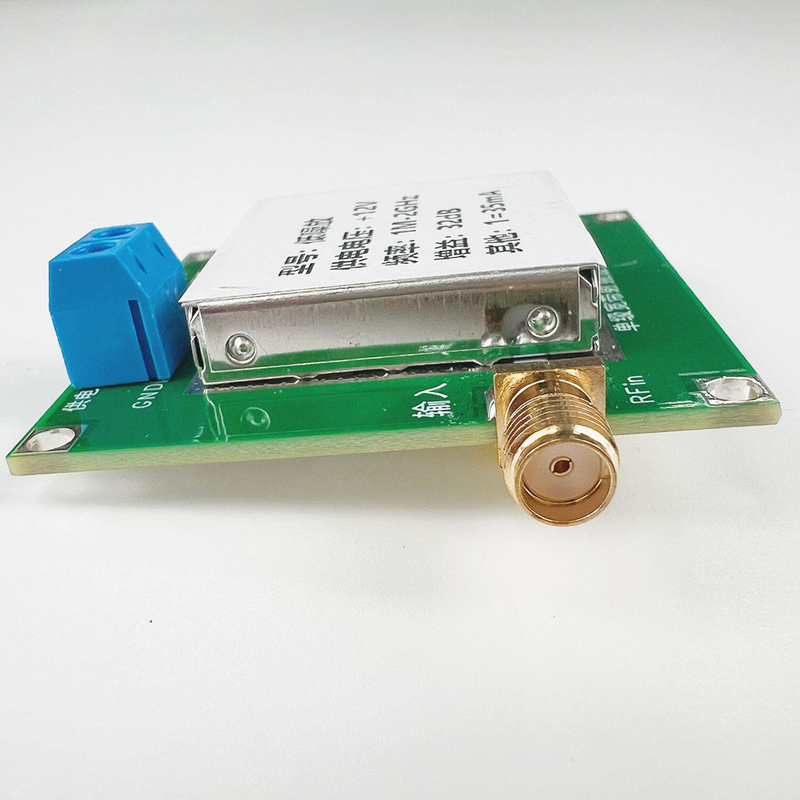

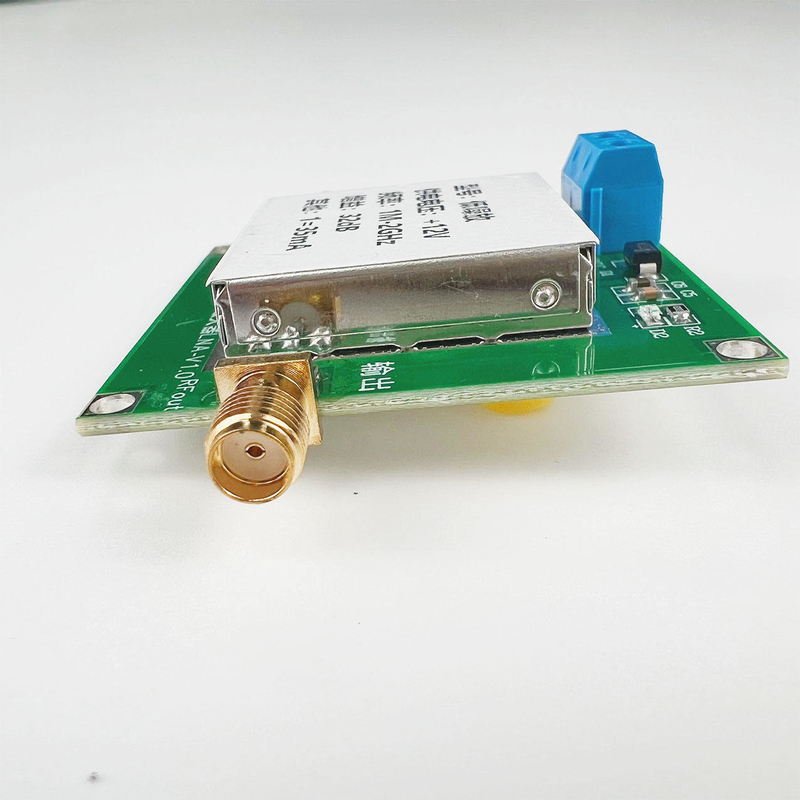

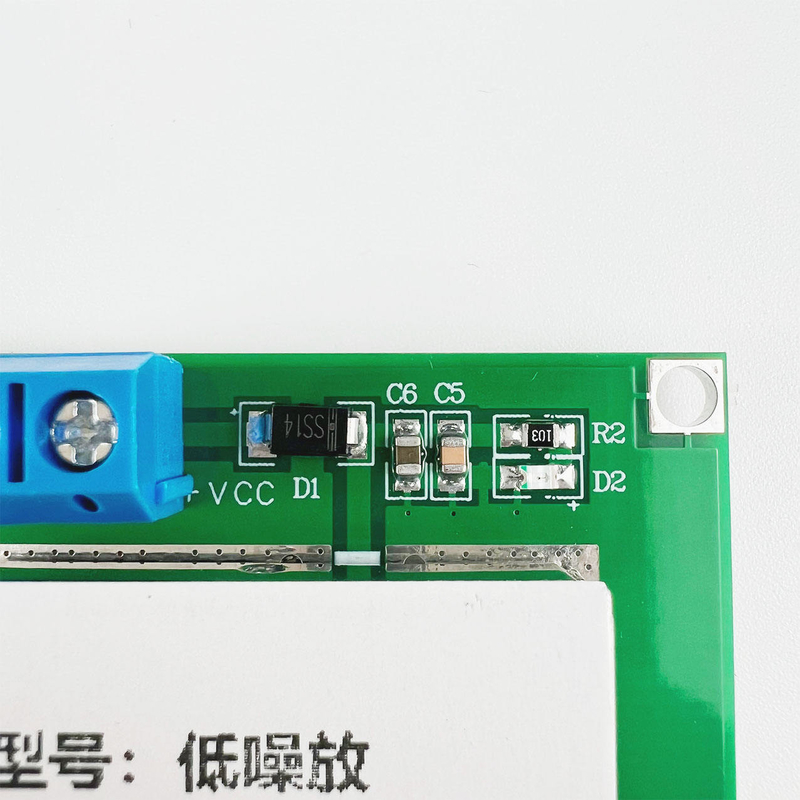

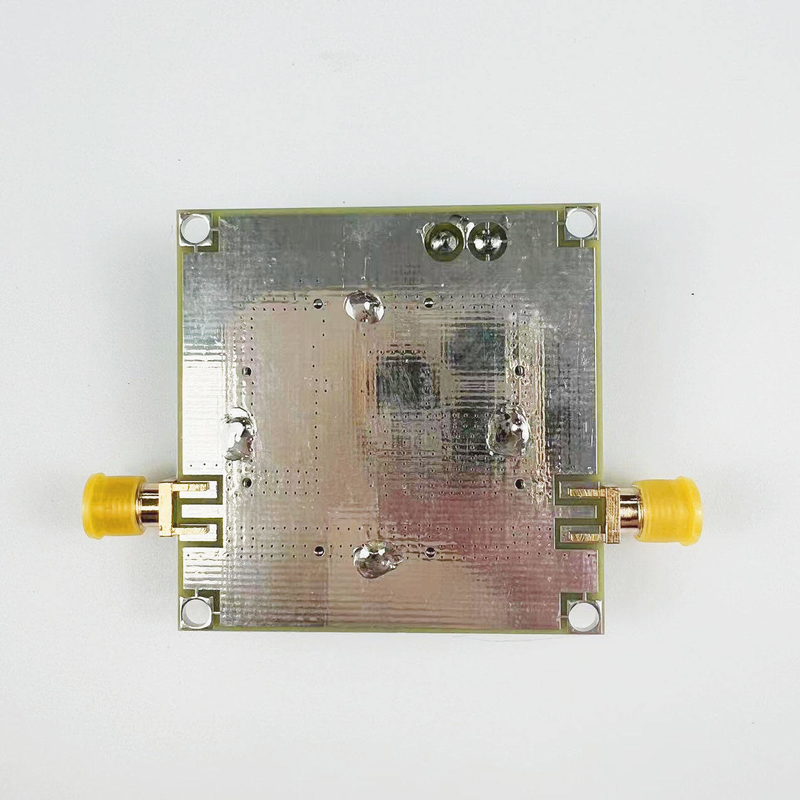

1-3000MHz 2.4GHz 20dB 0.01-2000MHz 2Ghz 32dB LNA RF Wideband Broadband Low Noise Power Amplifier Module UHF HF VHF

1-3000MHz 2.4GHz 20dB 0.01-2000MHz 2Ghz 32dB LNA RF Wideband Broadband Low Noise Power Amplifier Module UHF HF VHF

1-3000MHz LNA RF Wideband Broadband

2Ghz LNA RF Wideband Broadband

20dB LNA RF Wideband Broadband

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-051006

Contact Us

Request A Quote
Product Details
Features:
Suitable For MF/HF/VHF/UHF Antenna Amplifier
Model Number:
Multilayer PCB
Operating Temperature:
-20°C---+30°C
Voltage - Supply:
+12V DC
Current - Supply:
Typical Current Value 300mA/maximum Gain Output
Payment & Shipping Terms
Minimum Order Quantity
Discussable
Price
USD33-46
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000pcs
Product Description

Electrical Characteristics:

1.6W RF AMPLIFIER (500MHZ/30DB)
1. Product application:
BROADBAND RF POWER AMPLIFICATION, SUITABLE FOR ALL KINDS OF RADIO APPLICATIONS, SHORT-WAVE FM REMOTE CONTROL TOYS RADIO
WALKIE-TALKIE, DATA RADIO, ETC., INPUT 1 MILLIWATT (0DBM) CAN OUTPUT UP TO 1.6 WATTS, 12V VOLTAGE POWER SUPPLY, BROADBAND WORK
10MHZ TO 500MHZ CAN WORK. Due to the relatively large driving power, it can reach 32DBM (1.6W) at the low frequency end, and the
output power can also reach 30DBM (1W) at 500M, please refer to the S21 parameters and point frequency test chart for details.
POWER AMPLIFIER SIZE: 5CM*5CM*1.5CM (WITH A LARGE HEAT SINK ON THE BACK).

Second, technical indicators
1. Power supply voltage: +12V DC (typical current value 300mA/maximum gain output)
2. Working frequency: DC-500MHZ, input and output impedance: 50 ohms;
3. Maximum output range: 32dbm (1.6W/50 ohms)
4. Gain: 32 dB (please refer to S21 curve for specific curves, different frequencies are different)

5. INPUT SIGNAL SIZE: LOW FREQUENCY BAND (0DBM/1 MW), HIGH BAND (3DBM)


1-3000MHz 2.4GHz 20dB 0.01-2000MHz 2Ghz 32dB LNA RF Wideband Broadband Low Noise Power Amplifier Module UHF HF VHF 01-3000MHz 2.4GHz 20dB 0.01-2000MHz 2Ghz 32dB LNA RF Wideband Broadband Low Noise Power Amplifier Module UHF HF VHF 1
Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.



3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.


4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.





Our Advantages:
1. Nearly 10 years of rich marketing experience and has sufficient supplies and materials.

2. Financially sounded and has the continuous line service from R&D to designing, manufacturing and marketing.

3. Our products have a wide field of applications including industry, communication, information, automobiles, computer peripherals.

4. Competitive price,We devote ourselves in providing products with market differentiation and high performance.

5. We reduce the impact and damages caused to the environment, abide international environmental regulations and seek to be green and eco-friendly.

FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Do you have stock?
 We don’t have stock; we’ll start production after receiving PO.

3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.

4. What's your payment terms?
100 % T/T before delivery

5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
