Name: 12Pin 16Pin 20AWG Micro-Fit 4.2 Housing Custom Wire Harness for Electronic Circuits
Brand: Zhangjiagang RY Electronic CO.,LTD
SKU: RY-33012120/60
Price: 4.10 USD
Availability: InStock

Home > Products > Custom Wire Harness >

12Pin 16Pin 20AWG Micro-Fit 4.2 Housing Custom Wire Harness for Electronic Circuits

12Pin 16Pin Custom Wire Harness

Micro-Fit 4.2 Housing Electronic Wiring Harness

20AWG Circuits Harness

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

RY-33012120/60

Request A Quote

12Pin 16Pin 20AWG Micro-Fit 4.2 Housing Custom Wire Harness for Electronic Circuits

Product Details

Connector Type:

MOLEX, JST, AMP

Housing Type:

MOLEX, JST, AMP

Terminal Type:

MOLEX, JST, AMP

Rated Current:

1.0A AC,DC

Rated Voltage:

100V AC,DC

Cable Type:

UL1015,UL1007,UL1061,UL20276,UL2464

Cable Length:

50mm-15000mm

Processing Method:

Crimping, Pressing, Soldering

Connector Pitch:

0.5mm-4.2mm

Wire Gauge:

20AWG

Pin Count:

12Pin, 16Pin

Housing Model:

39012120, 39012160

Shield Type:

Shield Or Unshield

Performance Test:

100% Electrical Test

Color Options:

Black, White, Red, Yellow, Green, Blue

Payment & Shipping Terms

Minimum Order Quantity

Custom Wire Harness Automotive Cable Assembly with Copper Core Customizable Length and JST/Molex Connector

Get Best Price

Custom Wire Harness with JST Plug Cable in Customized Length and Multiple Connector Options ISO9001 Certified

Get Best Price

Custom Wire Harness with Molex 428160212 2Pin 10MM Pitch Connector and 8 AWG Cable

Get Best Price

5x20mm Inline Fuse Holder with 22AWG Cable and 250V Rating for Automotive and Marine Applications

Get Best Price

86--13405295160

info@rygroup.net

Contact Now

Product Description

Hot Sale 12PIN 16P 20AWG Molex Micro-Fit 4.2 Housing Circuits Harness

High-quality 12-pin and 16-pin Micro-Fit 4.2 housing circuits harness with 20AWG wiring, designed for reliable performance in various electronic applications.

Specification	Details
Cable Type	UL1015, UL1007, UL1061, UL20276, UL2464, shield or unshield type
Cable Color	Optional
Connectors	JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic
Cable Length	50mm - 15000mm
Processing Ways	Crimping, pressing and soldering types
Pin Out Connection	As per customer's request
Connector Pitch Range	0.5mm - 4.2mm
Characteristics	Good signal transfer, clear picture quality, stable performance
ISO Certificate	ISO9001:2008
Service	OEM/ODM products available
Certifications	ISO/RoHS/UL
Performance Test	100% electrical and performance testing

Key Advantages

Direct manufacturing factory with competitive pricing
Superior quality control standards
Short lead times for production

Applications

LCD/Display systems, Advertising machines, Phones, Laptops, Computers, PDA, Cameras, LCM, Notebooks, Tablet PCs, HDD

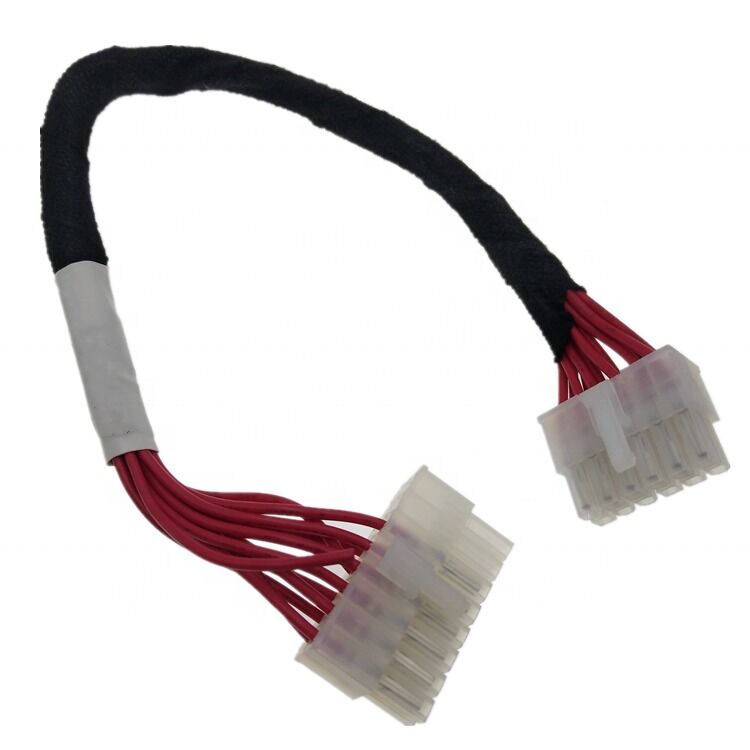

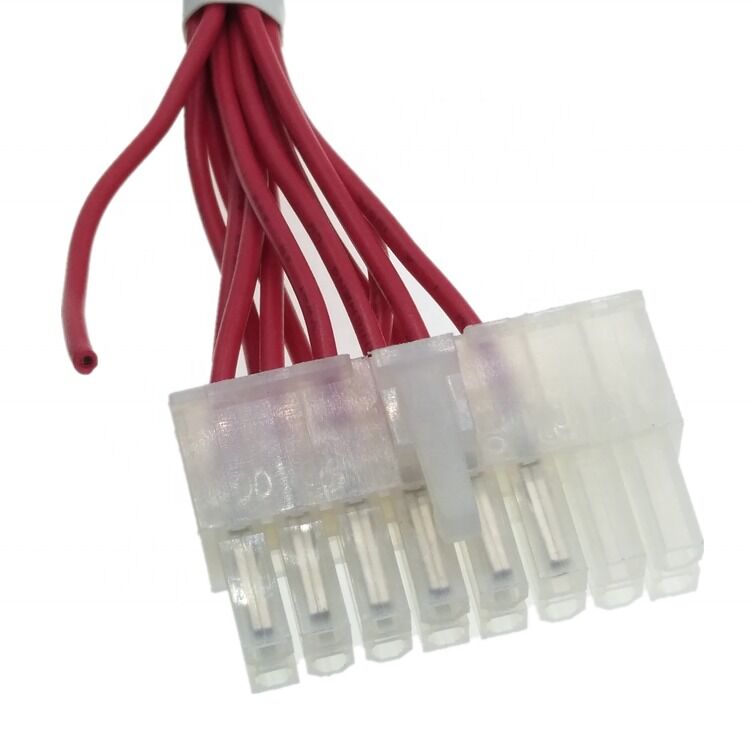

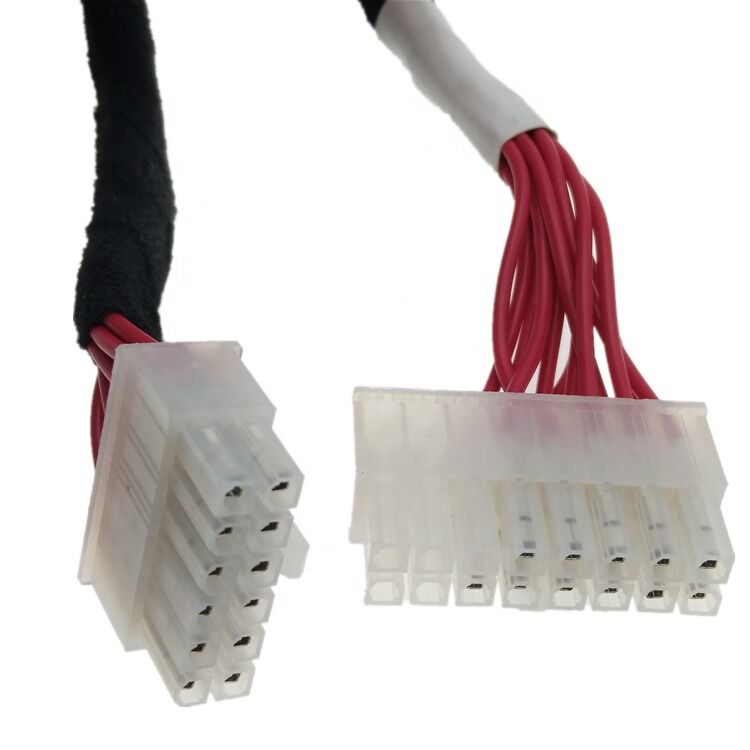

Product Images

Related Products

About RY Electronics

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs. Our manufacturing facilities can build various types of custom cable assemblies including LVDS cables, flat cables, RF cables, wire harnesses, as well as GPS/WIFI/ISM/GSM/3G/4G antennas and RF connectors.

Our Advantages

Quality Control: Most products have UL, CE, ROHS certification and ISO9001:2008
Low MOQ: 5pcs/10pcs/20pcs/50pcs depending on product type
Fast Delivery: 2-15 days with on-time delivery guarantee
Excellent After-Sales Service: Technical support and return service available
1 Year Warranty on all products
OEM/ODM services available
Alibaba Trade Assurance for 100% product quality, on-time shipment, and payment protection

Company Certifications

Packing & Delivery

Frequently Asked Questions

When can we get the reply?

Any inquiries will be replied within 24 hours.

Can I get some samples?

Yes, sample orders are available for quality check and market testing, with freight collect payment.

What's the delivery time?

Samples typically take 1-3 days to produce. Production orders usually take 3-7 days.

What's your payment term?

We accept PAYPAL, T/T as main payment methods, with other options negotiable.

What about quality problems?

If any quality issues arise, we provide technical support or return service.

How to contact us?

Send your inquiry details below and click "Send" now! Free samples and detailed answers are available.
