Name: 1.27mm Pitch 30AWG Gold-Plated IDC Connector Flexible Flat Ribbon Cable for Electronics
Brand: Zhangjiagang RY Electronic CO.,LTD
SKU: RY-IDC-166
Price: 14.01 USD
Availability: InStock

Home > Products > Flat Ribbon Cable Assembly >

1.27mm Pitch 30AWG Gold-Plated IDC Connector Flexible Flat Ribbon Cable for Electronics

1.27mm Pitch Flat Ribbon Cable

30AWG IDC Connector Cable

Gold-Plated Flexible Flat Cable

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

RY-IDC-166

Request A Quote

1.27mm Pitch 30AWG Gold-Plated IDC Connector Flexible Flat Ribbon Cable for Electronics

Product Details

Cable Pitch:

1.27mm

Connector Pitch:

1.27mm

Conductor Range:

24-30AWG

Connector Pins:

6~64P

Cable Length:

10cm, 15cm, 30cm Or Customized

Rated Current:

1Amp

Max Voltage:

AC 500V / 1Minute

Insulation Resistance:

1000mΩ

Contact Resistance:

15mΩ

Operating Temperature:

-40°C ~ +105°C

Connector Plating:

Gold-plated / Nickel-plated

Terminal Material:

Bronze And Phosphor Bronze

Connector Material:

PBT

Cable Color:

Grey With Red Edge Or Grey With Blue Edge Or Black With White Edge

Connector Color:

Usually Black, Grey & Red

Payment & Shipping Terms

Minimum Order Quantity

D-Sub 15 Pin DB15 Male to 16Pin Female IDC 2.54MM Pitch Gold-plated Flat Ribbon Cable

Get Best Price

Customized Rainbow Harness Flat Ribbon Cable with PVC Insulation and 1.27mm Pitch IDC Connectors

Get Best Price

1.27mm Pitch 30AWG Gold-Plated IDC Connector Flexible Flat Ribbon Cable for Electronics

Get Best Price

37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly

Get Best Price

86--13405295160

info@rygroup.net

Contact Now

Product Description

1.27mm 20P IDC Connector to 1.27mm IDC / FC 2678 30AWG Flexible Flat Ribbon Cable

High-quality flexible flat ribbon cable with IDC connectors, designed for reliable data and power transmission in industrial and electronic applications.

Product Specifications

Specification	Details
Wire Model	UL2678, UL2651
Cable Pitch Range	0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch Range	0.8mm, 1.27mm, 2.0mm, 2.54mm
Conductor Range	24-30AWG
Connector Pins	6~40P, 6~50P, 6~64P
Cable Color	Grey with red edge, Grey with blue edge, or Black with white edge
Connector Color	Black, grey, or red
Cable Length	10cm, 15cm, 30cm or customized
Material	SORY standard PBT
Terminals	Bronze and phosphor bronze
Connector Plating	Gold-plated / nickel-plated
Rated Current	1Amp
Maximum Voltage	AC 500V / 1Minute
Insulation Resistance	1000mΩ
Contact Resistance	15mΩ
Operating Temperature	-40°C ~ +105°C

Applications

Computer/Desktop data transfer, Power transfer, Electronics, Communication data transfer

Certifications

Hook Up wire, UL, VDE, CSA

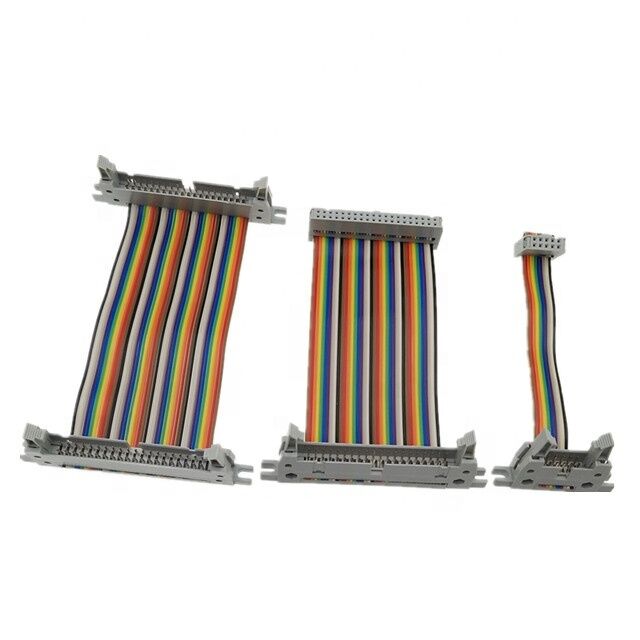

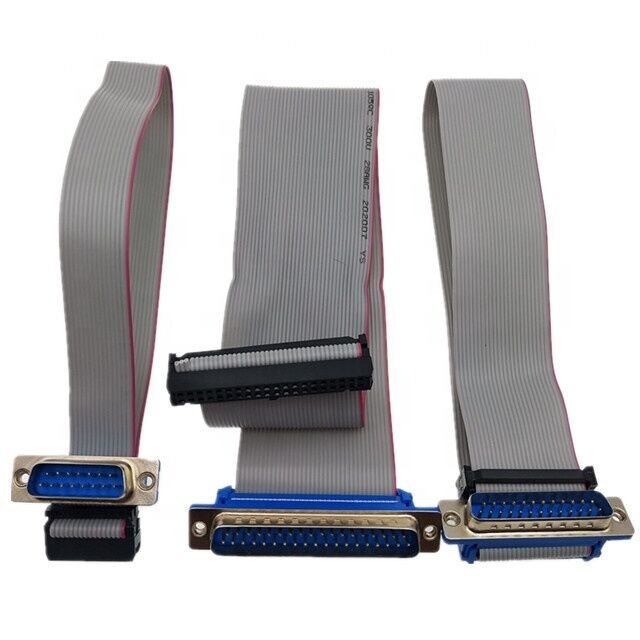

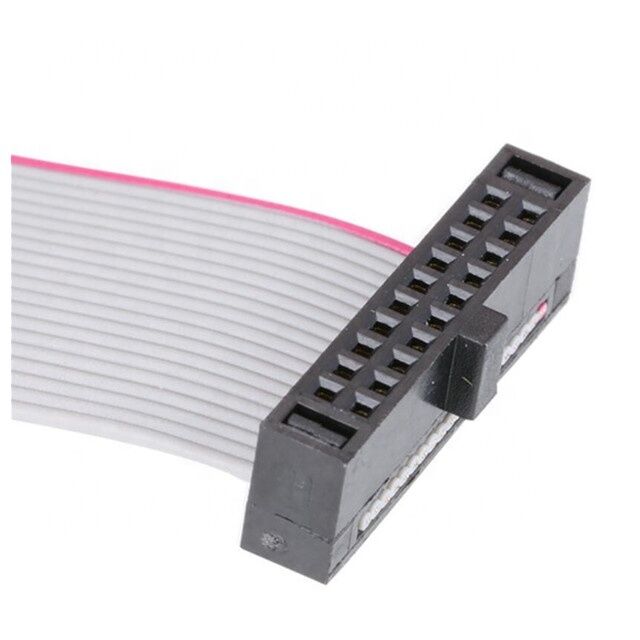

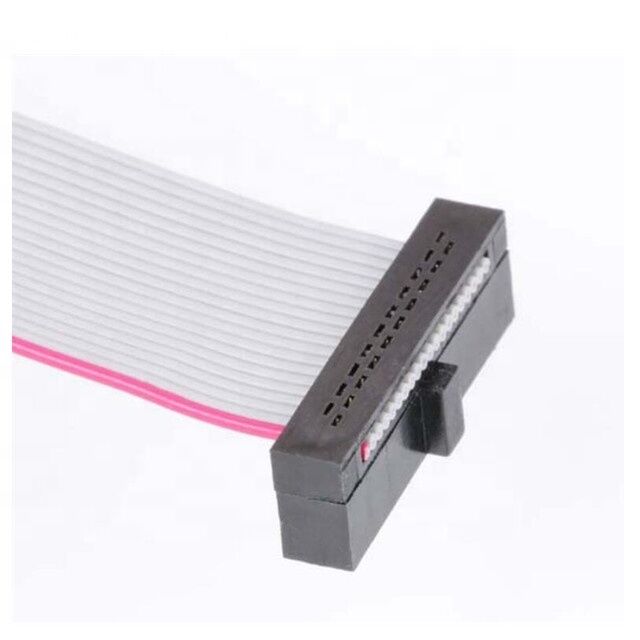

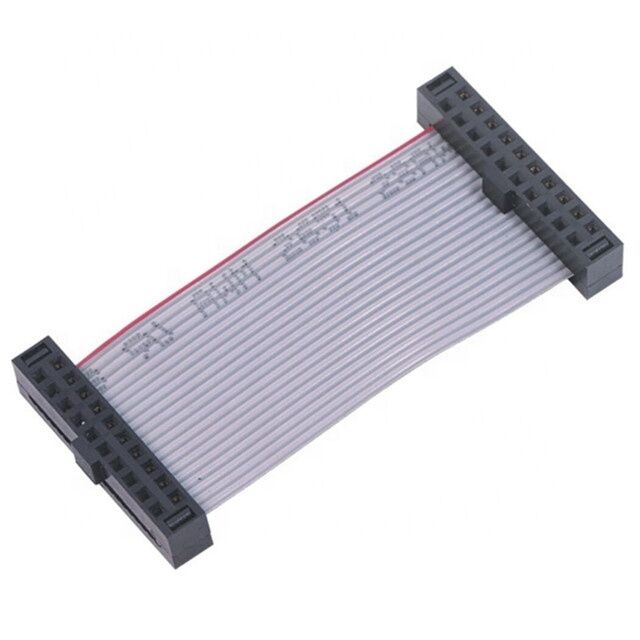

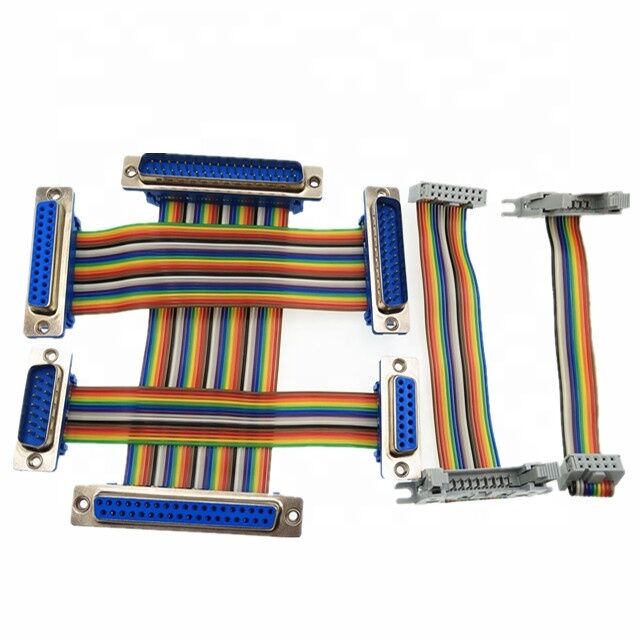

Product Images

About RY Electronics

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

Our manufacturing facilities can build just about many types of custom cable assembly (LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Advantages:

Quality control: Most products have UL, CE, ROHS certificates. ISO9001:2008 certified
Low MOQ: 5pcs/10pcs/20pcs/50pcs, depending on different items
Fast Delivery Time: 2~15 days, On-Time Delivery
Good After-Sales Service: Technical support or return service in short time
1 Year Warranty
OEM/ODM service
Alibaba Trade Assurance with 100% product quality, on-time shipment, and payment protection

Packing & Delivery

Frequently Asked Questions

When can we get the reply?

Any inquiries will be replied within 24 hours.

Can I get some samples?

Yes, sample order is available for quality check and market test, and it will be freight collect payment.

What's the delivery time?

It usually takes about 1-3 days to produce samples. It usually takes about 3-7 days to produce the products.

What's your payment term?

We usually accept PAYPAL, T/T as the main payment term, and other payments can also be negotiated.

Quality problems?

If there is any quality problem or question, we could offer technical support or return service.

How to contact us?

Send your Inquiry Details in the Below, Click "Send" Now! Free sample and best answers are waiting for you.
