JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness

JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness

JST right angle pin connector

2 pin flat ribbon harness

XH SH jumper harness assembly

Place of Origin:

Jiangsu, China

Brand Name:

RY

Certification:

CE/ROHS/ISO9001

Model Number:

RY-748296562

Contact Us

Request A Quote
Product Details
Length:
Customizable
Application:
Home Appliance
Jacket Material:
PVC , Nylon
Impedance:
50ohm
Cable Type:
1015,1061,1007...
Item:
OEM JST Plug Cable Assembly
Cable Length:
Optional
Connector:
JST/Molex/IDC/AMP...
Wire Type:
5-32AWG Or Internation Standard Cable
Connector Position:
2 Pin ~20 Pin
Payment & Shipping Terms
Minimum Order Quantity
10
Price
€0.2175-0.3045
Product Description
JST Wiring 2 Pin Right Angle Pin Connector Harness Assembly
Professional XH SH flat ribbon jumper harness designed for reliable electrical connections in electronic and electrical equipment.
Product Specifications
Cable Type AWG, 1015 PVC Wire
Cable Color Black
Connectors MOLEX Connector
Cable Length 10cm / 20cm / 30cm / Custom lengths available
Rated Voltage 600V
Pin Out Connection Custom configurations available
Test Voltage 2000V
Available Pin Configurations 2P, 4P, 6P, 8P, 12P
Key Features
  • Excellent signal transmission with clear, stable performance
  • No signal shaking or transfer issues
  • Direct manufacturing with competitive pricing
  • Short lead times for rapid delivery
  • ISO9001:2008 certified quality standards
  • RoHS compliant materials
  • 100% electrical performance testing
Applications
Ideal for internal wiring of electronic and electrical equipment, supporting custom OEM/ODM requirements.
Product Images

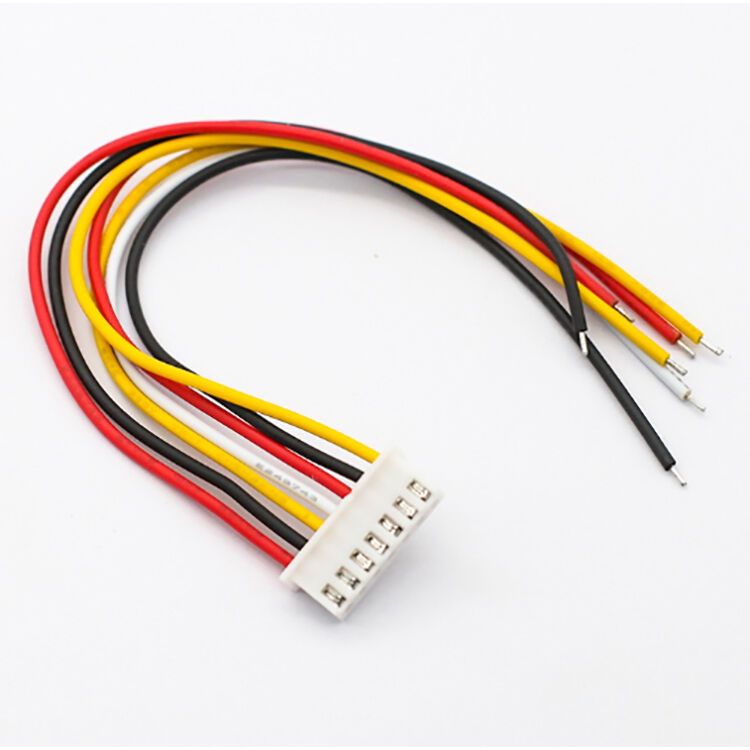

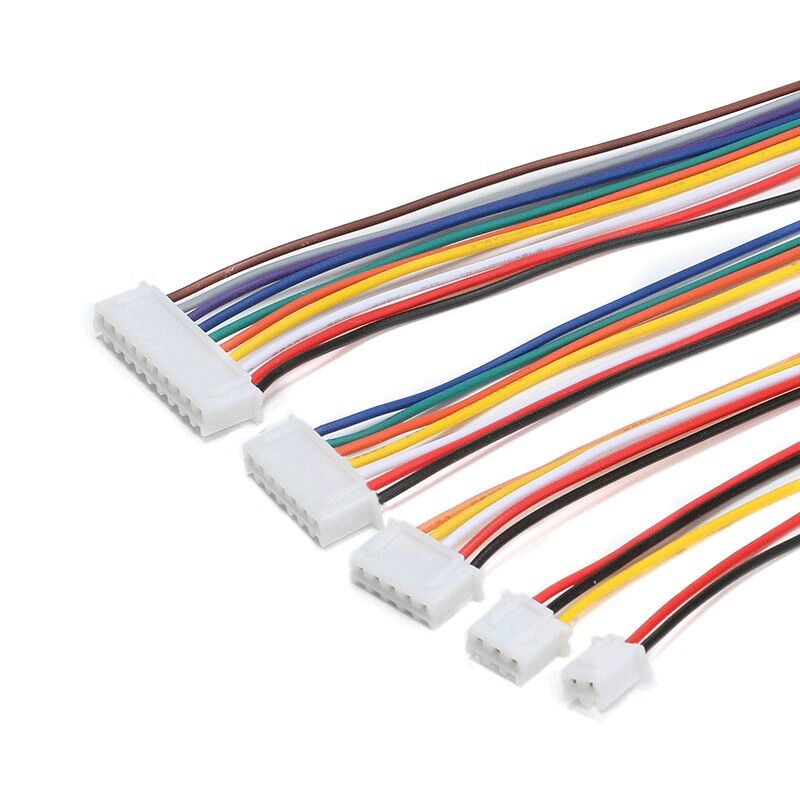

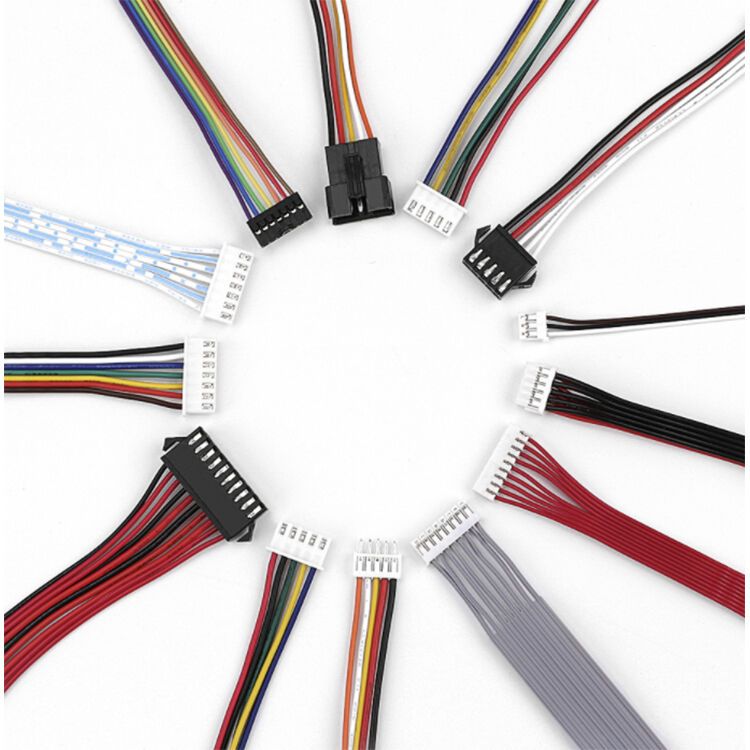

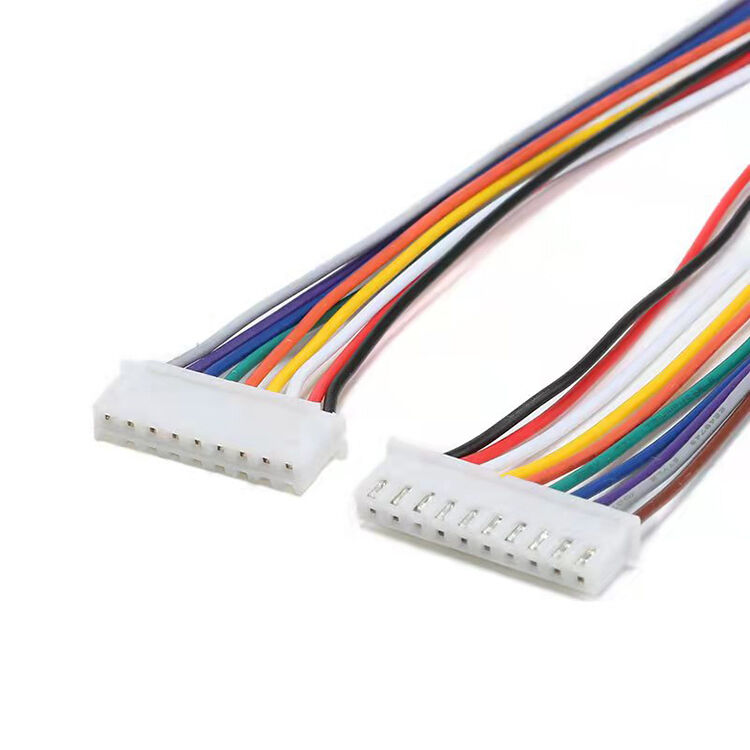

JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 0 JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 1 JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 2
Company Profile
RY Electronics brings over 10 years of expertise in designing and manufacturing custom cable assemblies and antennas. Our facilities produce various custom cable assemblies including LVDS cables, flat cables, RF cables, wire harnesses, and GPS/WIFI/ISM/GSM/3G/4G antennas with RF connectors.
Our Advantages
  • Quality Control: CE, RoHS certified with ISO9001:2008
  • Low MOQ: 5-50 pieces depending on product type
  • Fast Delivery: 2-15 days with on-time delivery guarantee
  • After-Sales Service: Technical support and return services
  • 1 Year Warranty on all products
  • OEM/ODM services available
  • Alibaba Trade Assurance protection
JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 3
Certifications
JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 4 JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 5 JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 6
Packing & Delivery
JST Wiring 2 Pin 2P 4P 6P 8P 12P Right Angle Pin Connector Harness Assembly XH SH Flat Ribbon Jumper Harness 7
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample orders are available for quality check and market testing (freight collect payment).
What's the delivery time?
Samples: 1-3 days production time. Bulk orders: 3-7 days production time.
What's your payment term?
We accept PAYPAL, T/T as main payment methods, with other options negotiable.
What about quality problems?
We provide technical support or return services for any quality issues.
How to contact us?
Send your inquiry details below and click "Send" for free samples and expert answers.
