Dupont 2.54mm Flat Ribbon Cable Assembly Male And Female To FC 10 Pin IDC Connector

Dupont 2.54mm Flat Ribbon Cable Assembly Male And Female To FC 10 Pin IDC Connector

idc ribbon cable assembly

flexible flat ribbon cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-678905

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Connector Type:
Wire To Board
Length::
Customized
Samples::
Available
Pin:
01--64
Pitch:
2.54mm
Connector:
Contact Plating
Service:
Custom Service
Payment & Shipping Terms
Minimum Order Quantity
10
Price
USD 0.5--3.5 / piece
Packaging Details
PE bag+export carton
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
50000pcs
Product Description





Dupont 2.54mm male and female to FC 10pin IDC connector breakout cable







Spepcification:



Wire Molde
UL2678 , UL2651, UL2651
Cable Pitch Range
0.4mm,0.635mm, 1.0mm, 1.27mm
Connector pitch range
0.8mm,1.27mm, 2.0mm, 2.54mm
Conductor range
26-30AWG
Connector Pins
6~40P,6~50P, 6~64P
Cable Color
Grey with red edge or Grey with Blue edge or black with white edge
Connector color
Usually black, grey & red
Cable length
10cm, 15cm,30cm or cusomized
Applications
Computer/Desktop data transfer, Power transfer, Electronics, Communication data transfer
Certified
Hook Up wire, UL, VDE, CSA
Material
SORY standard PBT
Terminals
bronze and phosphor bronze
Connector
contact plating
Rated Current
1Amp
maximum voltage



AC 500V / 1Minute
Insulation resistance
1000mΩ
Contact resistance
15mΩ
Operating Temperature
-40 ° C ~ + 105 ° C



 Product Details:

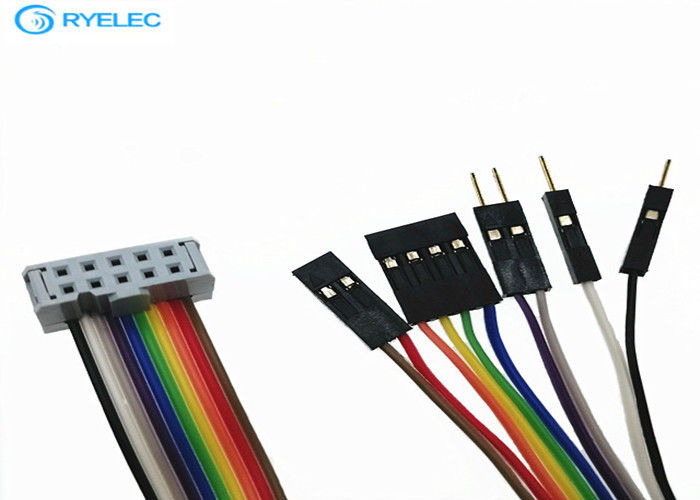

Dupont 2.54mm Flat Ribbon Cable Assembly Male And Female To FC 10 Pin IDC Connector 0





Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable                  assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

FAQ:



Q:How to order?
A:1. Please tell us what kind of model you need.
   2. After payment , all goods will be sent to you within 10 working days as usual.

Q. The MOQ
A:I am glad to accept a samll order to test the market,While Kindly remind, the more the quantity, the better    the price.



Q:What is the delivery time and shipping fee?
A: We promise to ship the items 7-15days after received your payment,and the cost will according to the        total weight .



Q:What is the warranty?

A:For defective or faulty products,please contact us first,We will resolved your issues,thanks a lot!

Q. If this was not I want, what should I do?
A:If you find this is not exactly meet what you need. Please send us emails about your inquiry details. We will give you solution within 2 hours! Or call us right now!
