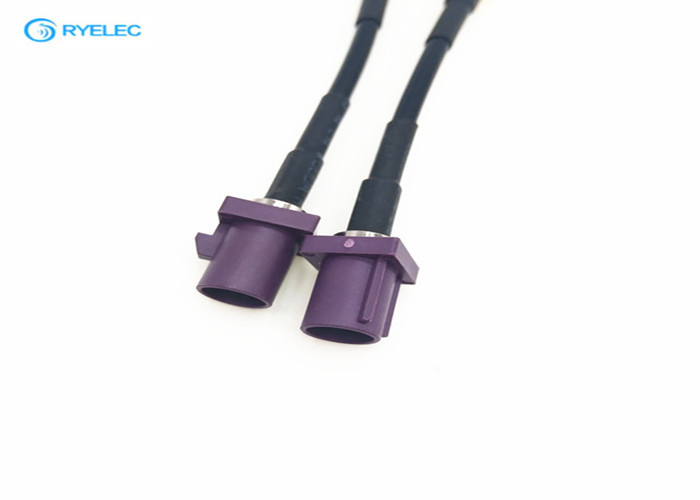

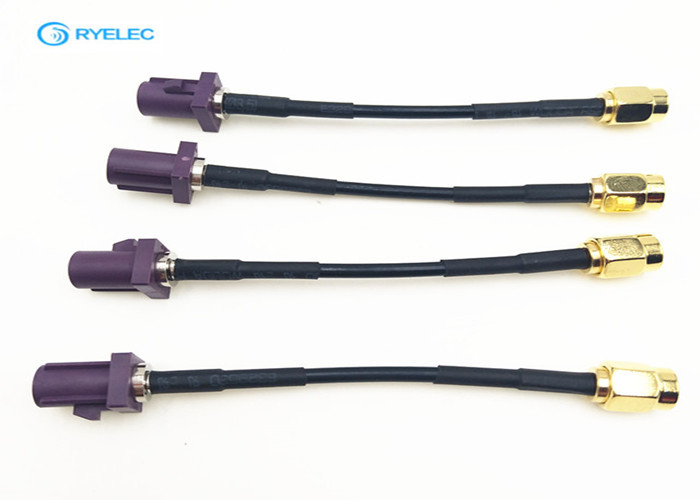

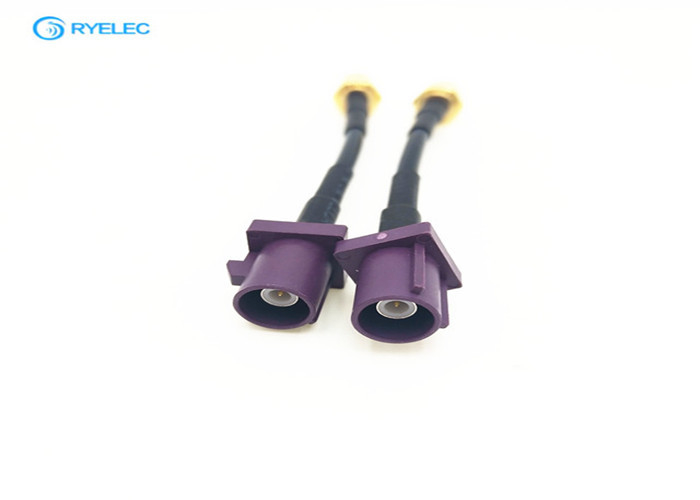

Fakra To SMA Connector RF Cable Assemblies For WIFI Antenna Low Loss Type Available

Fakra To SMA Connector RF Cable Assemblies For WIFI Antenna Low Loss Type Available

coaxial cable assemblies

antenna coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-65434807

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Type::
Coaxial
Connector::
Fakra To Sma
Impedance::
50ohm
Cable Type::
RG Series,low Loss Cable
Application::
RF Device
Certification::
CE/ROHS/ISO9001
Plating::
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~2.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description







sma female to waterproof fakra code D connector rf rg174 extension cable







Electrical Characteristics

Fakra To SMA Connector RF Cable Assemblies For WIFI Antenna Low Loss Type Available 0

ELECTRICAL DATA
Impedance 50Ω
Frequency range DC-6Ghz
VSWR 1.3 max
Voltage 60V AC(rms)
Insulation Resisitance 500 MΩ min.
Insertion Loss 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
Connector sma to fakra
MATERIAL DATA
Bodies Brass--gold plating
Pin contacts Brass--gold plating
Socket contacts Copper-beryllium alloy--Au plating
Insulator PTFE
Cable type 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
Application smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range -40°C to +80°C


Product Details:

Fakra To SMA Connector RF Cable Assemblies For WIFI Antenna Low Loss Type Available 1





Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc.
