RG Series Fakra Wire Harness Assembly , Waterproof Female Coaxial Cable

RG Series Fakra Wire Harness Assembly , Waterproof Female Coaxial Cable

antenna coaxial cable

rf coaxial cable

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Brand Name::
Sma To Ufl
Cable Type::
RG Series,low Loss Cable
RF Device
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
Product Description

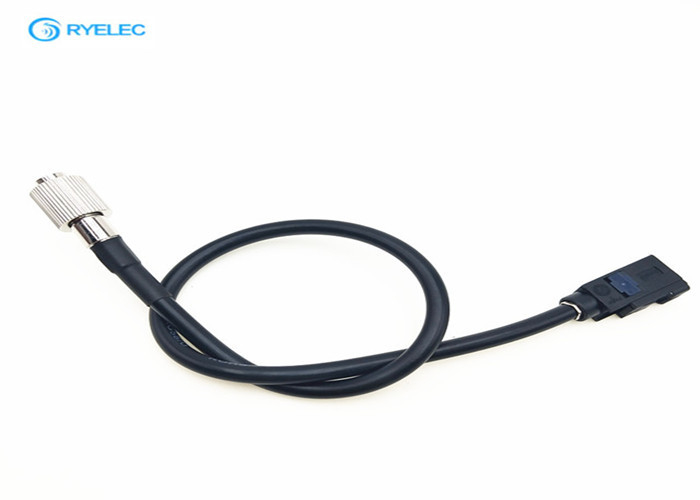

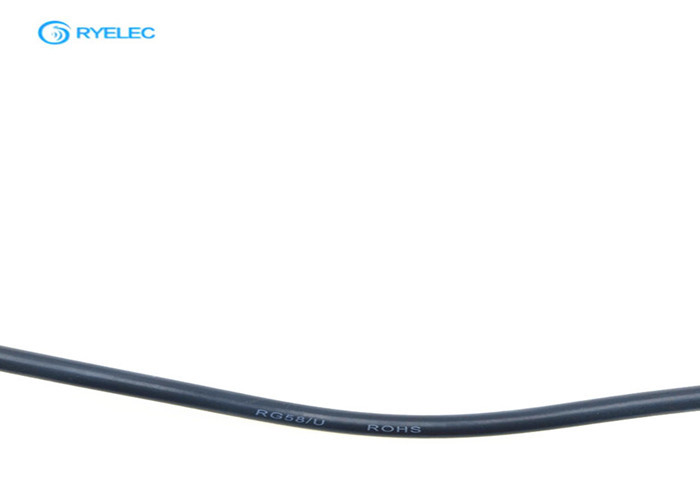

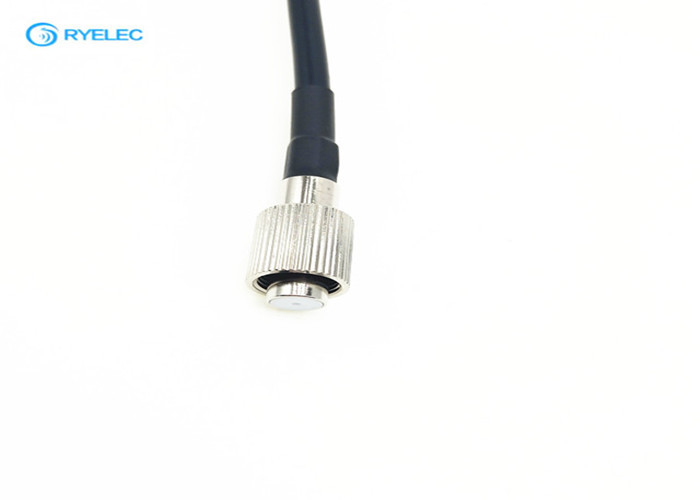

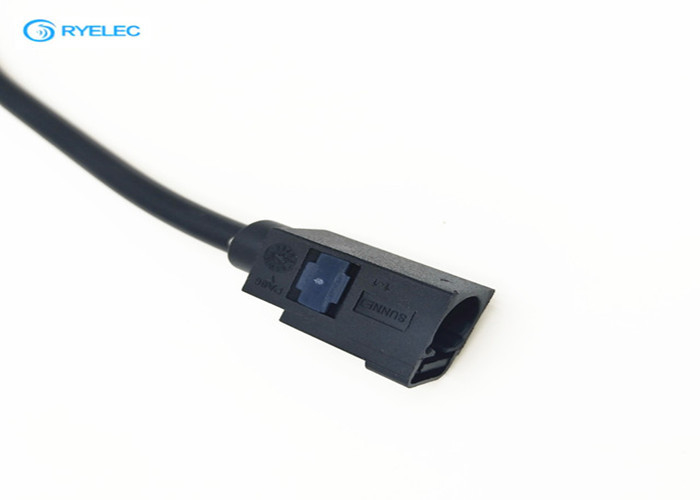

waterproof fakra a to m10x0.75 female connector rf pigtail RG58U cable assembly


Electrical Characteristics RG58U
inner conductor 0.81mm CCS/BC
Dielectric: 3.00mmPE
shield AL FOIL
braiding coverage 40%-98%
Jacket 5.00PVC
jelly Per customer requirement


Impendance 75+/-3ohm
Capacidance: 54+/-pf/m
Velocity of propagation: 85%
Return Loss0 20DB Min (5-2300MHZ)
Attenuation [@(20°c.]


Frequency(MHZ) Max.(DB/100m) Frequency(MHZ) Max.(DB/100m.)
55 -5.3 450 -14.4
211 -10 550 -16.2
300 -11.6 750 -19.0
400 -13.6 1000 -22.0


Product Details:
RG Series Fakra Wire Harness Assembly , Waterproof Female Coaxial Cable 0

RG Series Fakra Wire Harness Assembly , Waterproof Female Coaxial Cable 1
