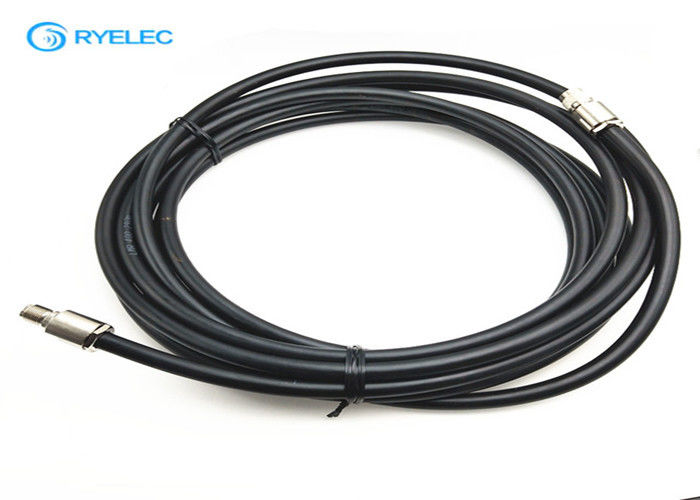

Nickel Plated Coaxial RF Cable Assemblies TNC Male To TNC Female Connector

Nickel Plated Coaxial RF Cable Assemblies TNC Male To TNC Female Connector

coaxial cable assemblies

antenna coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-9656904679

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Type::
Coaxial
Gender::
Male To Female
Connector::
Tnc Male To Tnc Female
Cable Type::
RG Series,low Loss Cable
Application::
RF Device
Certification::
CE/ROHS/ISO9001
Plating::
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD3.88~10.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description

plated nickel TNC male to TNC female connector with LMR400 rf cable coaxial assembly


Electrical Characteristics



Item LMR400 Coaxial Cable
Conductor 2.72mmCU, TC, CCS Or CCA
Insulation Material 7.30mm Foam PE
The First Shield AL-Foil or Boned AL-Foil
The Second Shield 40%-95% Bare Copper or AL-Mg Braiding
Jacket 10.3mm PE



Production Specification

Attennuation

200 MHz/ 2.07dB(100ft)

850 MHz/ 4.12dB(100ft)

900 MHz/ 4.30dB(100ft)

1800 MHz/ 6.01dB(100ft)

2000 MHz/ 6.28dB(100ft)

Min Return Loss(dB)

1-1000MHz/20dB(100ft)

1000-2150MHz/18dB(100ft)

Impedance(Ω) 50±3
Capacitance(pF/m) 82
Velocity Rate(%) 85



Product Details:

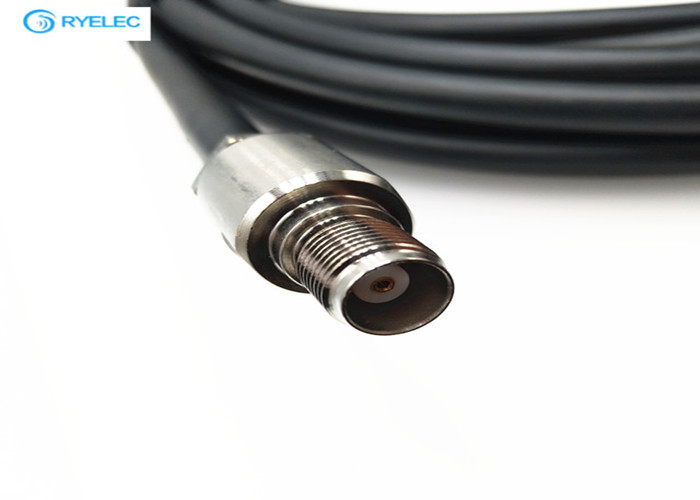

Nickel Plated Coaxial RF Cable Assemblies TNC Male To TNC Female Connector 0

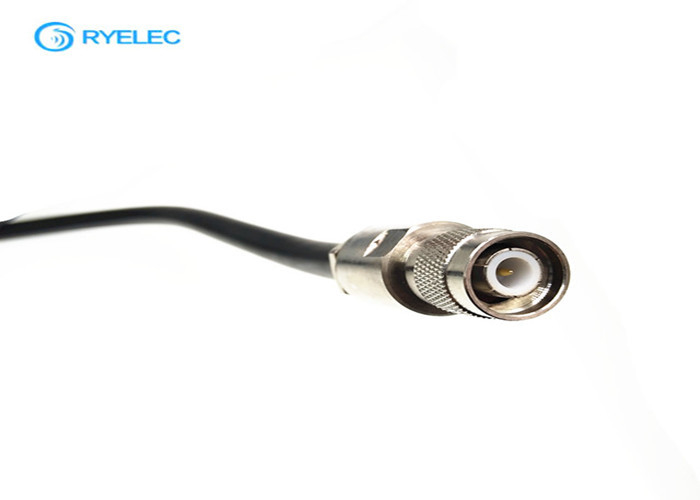

Nickel Plated Coaxial RF Cable Assemblies TNC Male To TNC Female Connector 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. When I want customized products, how to do?

We have Equipped with professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings / samples are required.


5. How can I make OEM or ODM orders?

We have different print processing,different OEM orders please contact again or view more items on our alibaba page.



6. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.


7. After I pay, what about the lead time and shipping method?

Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish. As for the Lead time, 10~20 days.
