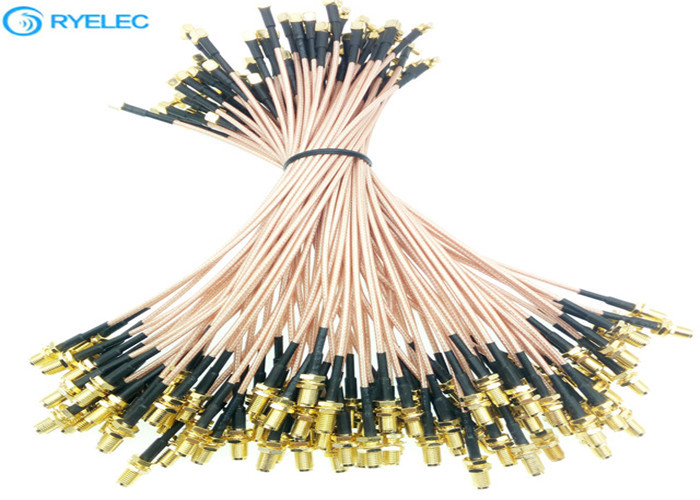

90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube

90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube

    • 90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube
    • 90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube
  • 90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-43767897896

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD 0.88~2.88/piece
    Packaging Details: 1pc/polybag packaging
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Type:: Coaxial
    Impedance:: 50ohm VSWR: ≤1.5
    Application:: RF Device Certification:: CE/ROHS/ISO9001
    Plating:: Nickel Or Gold Connector: SMA To MCX

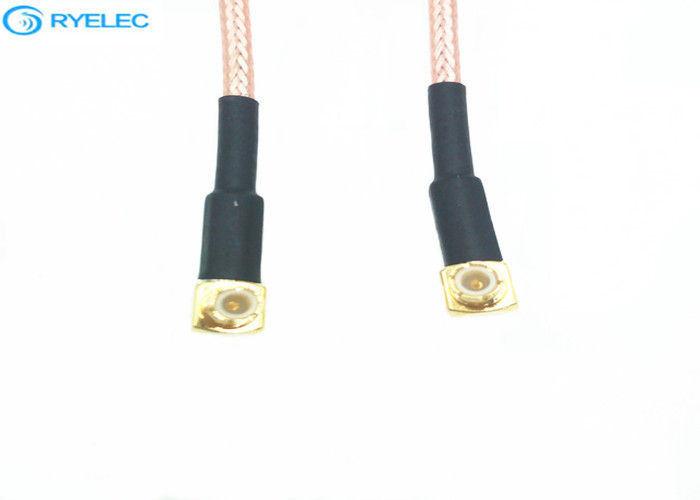

    SMA female to MCX 90 degree right angle male high quality RG316 cable assembly​



    ELECTRICAL DATA



    Impedance 50Ω
    Frequency range DC-6Ghz
    VSWR 1.3 max
    Voltage 60V AC(rms)
    Insulation Resisitance 500 MΩ min.
    Insertion Loss 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
    Connector sma rp to ufl
    Bodies Brass--gold plating
    Pin contacts Brass--gold plating
    Socket contacts Copper-beryllium alloy--Au plating
    Insulator PTFE
    Cable type 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
    Application smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
    Temperature range -40°C to +80°C
    Weatherproof Rate IP67
    Shrinkable Tube PVC
    Cable Length Customized Length


    Product Details:

    90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube

    90 Degree Right Angle RF Cable Assemblies With SMA To MCX Connector / PVC Shrinkable Tube

    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.




    FAQ:
    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



    2. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

    3. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

    4. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

    5. What is your terms of delivery?
    We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
