Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly

Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly

    • Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly
    • Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly
    • Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly
    • Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly
  • Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-6795233509

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD 0.8- 2.5 /piece
    Packaging Details: 1pc/polybag packaging
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Name: Fakra C For GPS VSWR: ≤1.5
    Connector: Fakra To Sma Impedance: 50ohm
    Cable Type: RG Series,low Loss Cable Application: RF Device
    Certification: CE/ROHS/ISO9001 Plating: Nickel Or Gold

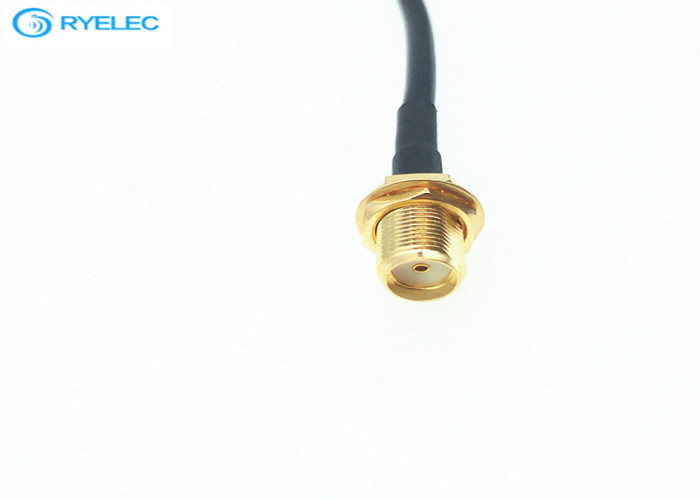

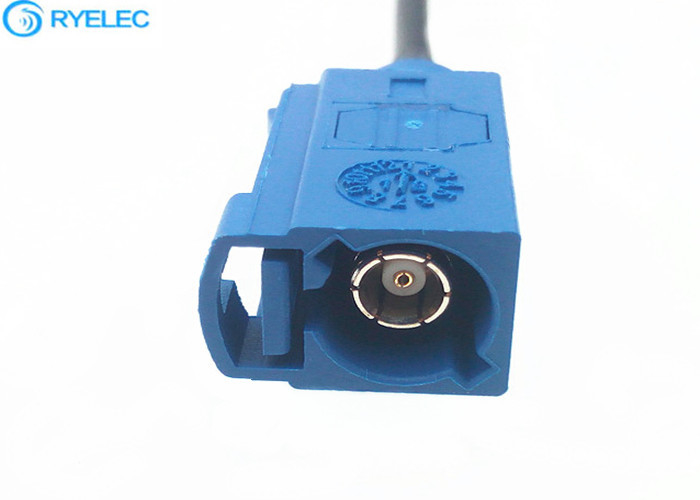

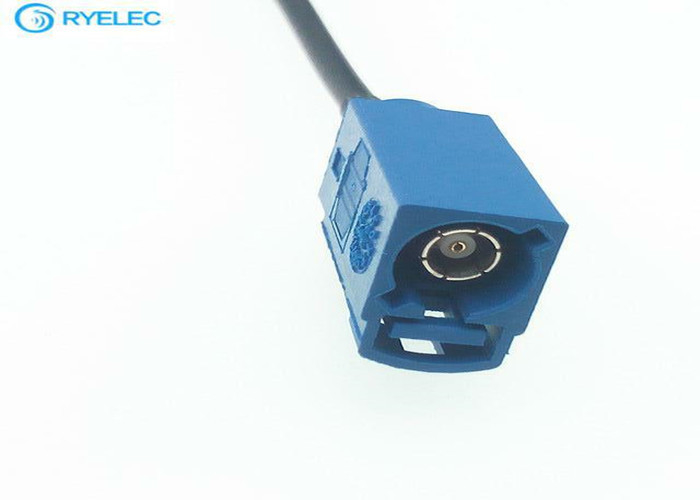

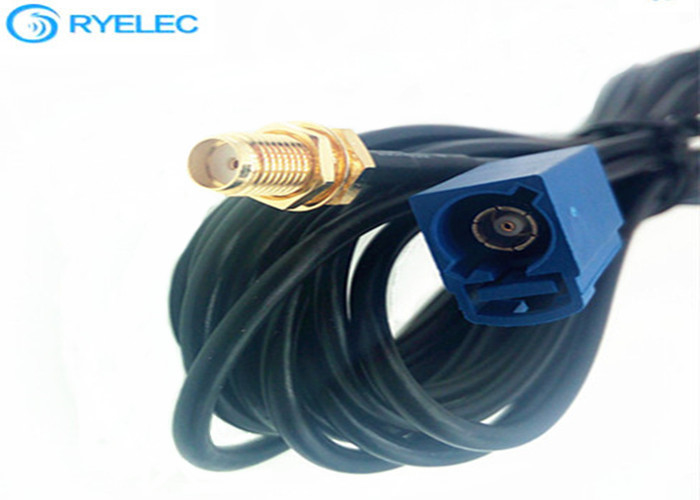

    Fakra C blue Jack connector to SMA female RF174 extension cable for GPS






    Electrical Characteristics



    ELECTRICAL DATA
    Impedance 50Ω
    Frequency range DC-6Ghz
    VSWR 1.3 max
    Voltage 60V AC(rms)
    Insulation Resisitance 500 MΩ min.
    Insertion Loss 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
    Connector fakra to sma
    MATERIAL DATA
    Bodies Brass--gold plating
    Pin contacts Brass--gold plating
    Socket contacts Copper-beryllium alloy--Au plating
    Insulator PTFE
    Cable type 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
    Application smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
    Temperature range -40°C to +80°C


    Product Details:



    Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly

    Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly

    Fakra To SMA Precision Cable Assemblies , 50ohm GPS Cable Harness Assembly

    Our this product line features popular coaxial cable, RF connectors, RF cable and other high quality coaxial products such as SMA connectors, coax adapters, and tools.

    RF Coaxial cable assemblies are available in 50 Ohm and 75 Ohm styles. In addition, We stocks hundreds of low loss 50 Ohm antenna RF cable assemblies, pigtails and bulk cable for all your wireless connectivity needs.

    Coax interfaces include: BNC, SMA, TNC, Type F, RCA, SMB, MCX, MMCX, Type-N, and more. We carry coax RF connectors and tools such as cable strippers, coaxial crimp tools, compression tools, and pin crimp tools to accommodate all of your coaxial termination requirements.





    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. 1 Year Warranty.



    FAQ:
    1. When can I ?
    We usually quote within 24 hours after we get your inquiry.



    2. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

    3. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

    4. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

    5.What’s your Shipping Methods?
    By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
