Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz

Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz

    • Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz
    • Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz
    • Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz
  • Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-984357084

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~2.88 / picec
    Packaging Details: 1pc/polybag packaging
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Name: Mini UHF To SMA Cable Assembly Type: Coaxial
    Cable Type: RG Series,low Loss Cable Application: RF Device
    Certification: CE/ROHS/ISO9001 Plating:: Nickel Or Gold
    Cable Length: Optional Frequency: 0-6ghz

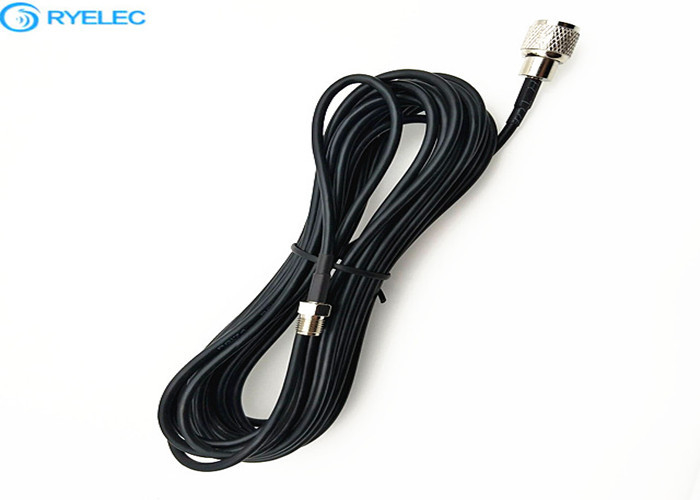

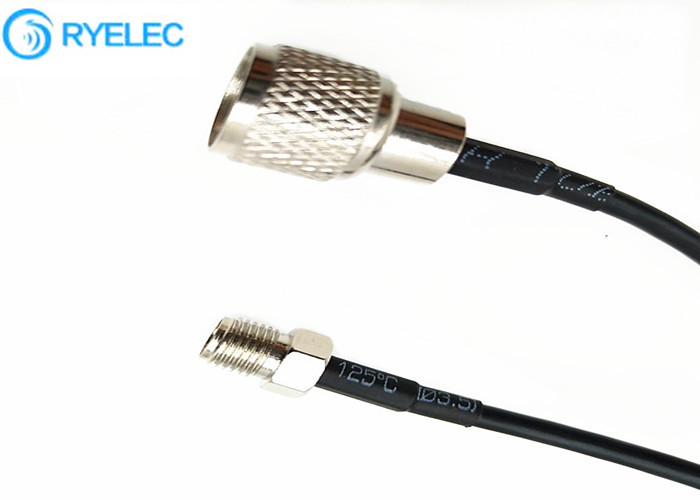

    custom Mini UHF male to Nickel plated silver SMA female with rg174 coaxial cable assembly​


    Electrical Characteristics



    ELECTRICAL DATA
    Impedance 50Ω
    Frequency range DC-6Ghz
    VSWR 1.2
    Durability ≥500 cycles
    Voltage 60V AC(rms)
    Insulation Resisitance 500 MΩ min.
    Insertion Loss 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
    Connector UHF male to SMA female
    MATERIAL DATA
    Bodies Brass--gold plating
    Pin contacts Brass--gold plating
    Socket contacts Copper-beryllium alloy--Au plating
    Insulator PTFE
    Cable type 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
    Application wifi antenna,GPS antenna, RF device etc
    Temperature range -40°C to +80°C
    Waterproof Rate IP68


    Product Details:

    Nickel Plated Custom RF Cable Assemblies For GPS Antenna / RF Device 0-6 ghz

    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Good After-Sales Service: we could offer technical support or return service in short time.

    4. 1 Year Warranty.




    FAQ:
    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

    2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.



    3. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

    4. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

    5.What’s your Shipping Methods?
    By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
