320mm RF Electrical Coaxial Aerial Cable , FME To MMCX Low Loss Cable Assembly

320mm RF Electrical Coaxial Aerial Cable , FME To MMCX Low Loss Cable Assembly

coaxial cable assemblies

rf coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-892386

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Type:
Coaxial
Cable Length:
320mm/customized
Connector:
FME ToMMCX
Cable Type:
RG Series,low Loss Cable
Insulator:
PTFE
Certification:
CE/ROHS/ISO9001
Plating:
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~2.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description



RF Electrical Wire Connector FME male to Mmcx male Right Angle Assembly Extension Coaxial Cable RG174 for Wireless



Specification:

1, Cable length,any length is OK, but please contact us firstly for prices.
2, Connectors, crimp different connectors as you request
3, Cable type, we have RG174,RG58,RG142,RG8,RG316 etc cables for your chooice.
4, Large quantity, wholesale price can be offered.



Electrical Performance
Impedance 50Ω
Frequency range DC-1Ghz
VSWR ≤1.2
Voltage 60V AC(rms)
Insulation Resisitance 500 MΩ min.
Dielectric Withstanding Voltage 100VAC(Cable Limited)
Insertion Loss ≤1.55dB
Connector FME to MMCX
Cable RG174/RG316/RG142/RG58 etc
Bodies Brass--gold plating
Pin contacts Brass--gold plating
other metal parts Gold Plated,Nickel Palted
Socket contacts Copper-beryllium alloy--Au plating
Insulator PTFE
Cable type 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240
Application smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range -40°C to +80°C


Product Details:

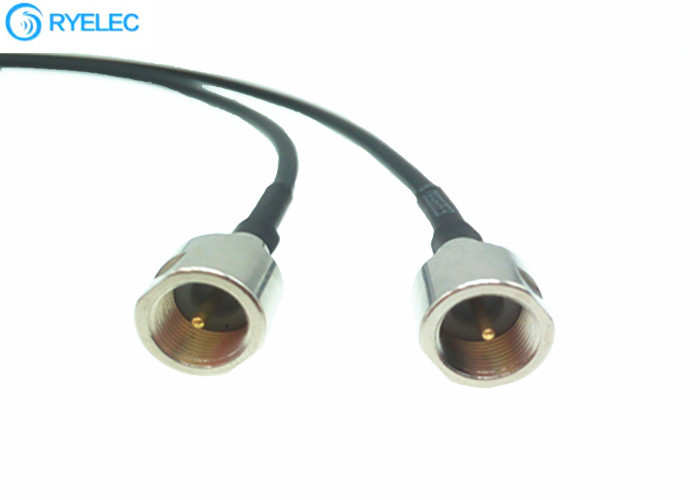

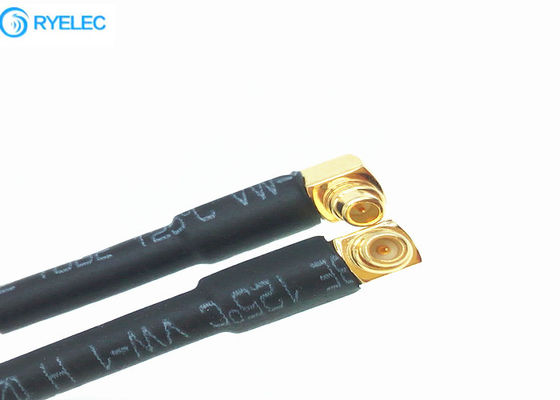

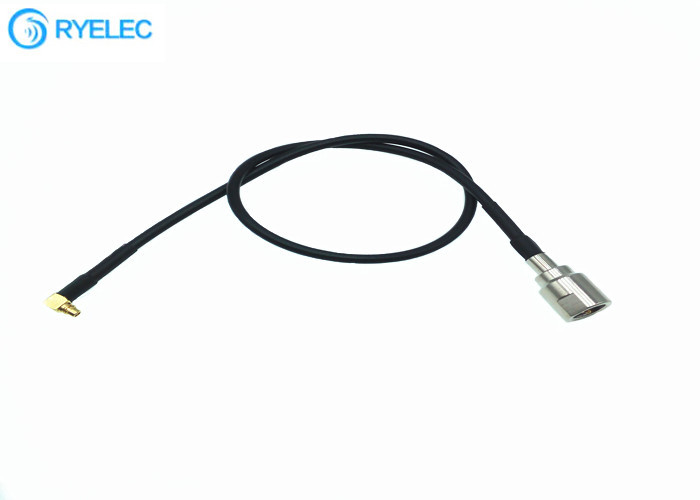

320mm RF Electrical Coaxial Aerial Cable , FME To MMCX Low Loss Cable Assembly 0

320mm RF Electrical Coaxial Aerial Cable , FME To MMCX Low Loss Cable Assembly 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. Can I get some samples?

Yes,sample order is available for quality check and market test,and it will be freight collect payment


3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4. can I make OEM or ODM orders?

We have different print processing,different OEM orders please contact again or view more items on our alibaba page.


5.What’s your Shipping Methods?
By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
