M10x0.75 Connector RF Cable Assemblies Female To Straight Golden Plated Smb Female Pigtail Coaxial Cable

M10x0.75 Connector RF Cable Assemblies Female To Straight Golden Plated Smb Female Pigtail Coaxial Cable

antenna coaxial cable

rf coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-8875458

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Type::
Coaxial
Gender::
Female To Female
Impedance::
50ohm
Cable Type::
RG Series,low Loss Cable
Application::
RF Device
Certification::
CE/ROHS/ISO9001
Plating::
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~4.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





m10x0.75 connector female to straight golden plated smb female pigtail coaxial cable







Electrical Characteristics

compliance RoHS
Number of Conductors 1
Connector A M10*0.75 FEMALE
Connector B SMB female
Cable RG174/U 26AWG
MOQ 100
Lead-time 3 ~ 5 days



connector 1 m10*0.75
Connector 2 SMB
Gain DC-6GHz/DC-3GHz
Cable type RF1.13/RF1.37/RG316/RG174 or customized
Cable length 15CM/20CM or customized
Max Input Power 50 w
Impedance 50ohm
Temperature Range -65℃-165℃
Certificate ISO9001



Product Details:

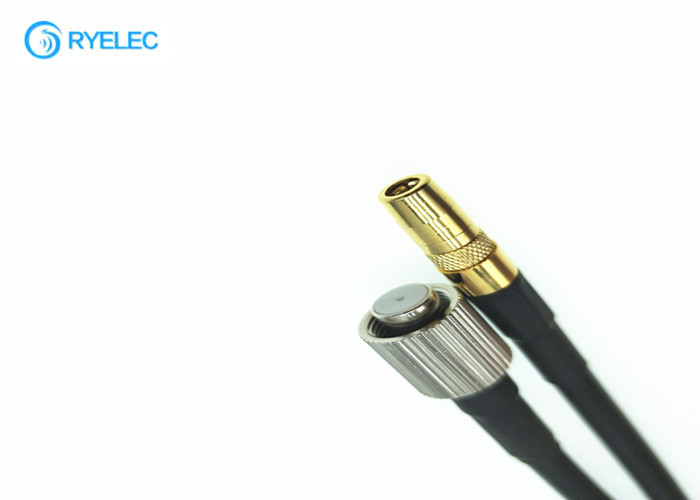

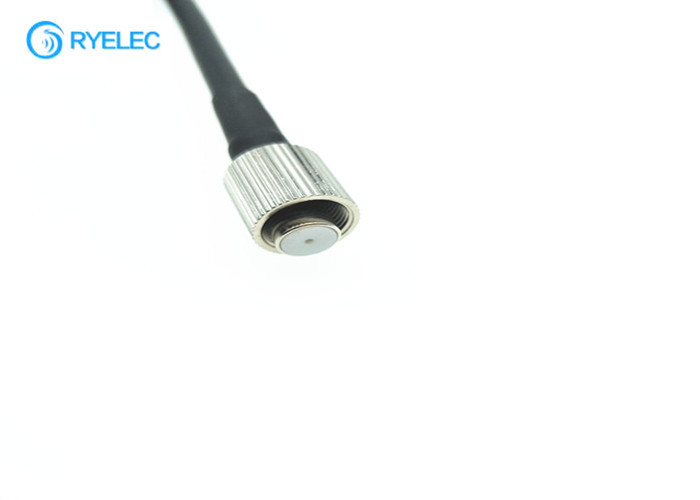

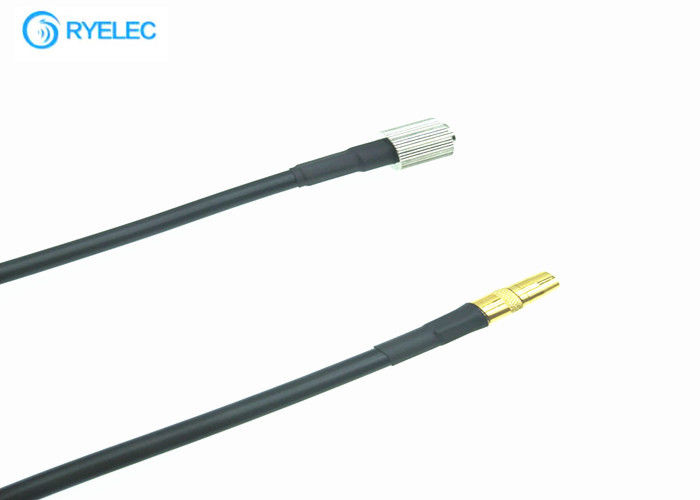

M10x0.75 Connector RF Cable Assemblies Female To Straight Golden Plated Smb Female Pigtail Coaxial Cable 0

M10x0.75 Connector RF Cable Assemblies Female To Straight Golden Plated Smb Female Pigtail Coaxial Cable 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.


Our Services:

1.Reply your enquiry within 24 hours.
2.Payment model: T/T, L/C,Paypal and Western Union
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...)
4.Lead(Delivery) time: Normally 14 days after getting order
5.Port of loading: Shanghai
6.Guarantee Period : Within 12 months after shipment.
7.Operating guide(Instruction)upon request.
8.Customized drawing ,sample and package can be done.



FAQ:

1 Q: Some connectors are available with different cables. Which cables shall I choose?

A: In a nutshell, if there are different cables which can be equipped with the same connector: always choose the cable with the bigger diameter (simply because the bigger diameter results in less attenuation).



2 Q: Can you provide customization?

A: Of course. Personalized designs of RF cable assembly products according to customer's requirements are welcomed.



3 Q: Can you send a sample for us to develop?

A: Yes, normally we can provide 1 or 2 samples of the small RF cable assembly.



4 Q: How much the shipping cost will be for sample ?

A: That depends on the specific weight and packing size of the goods.



5 Q: How can I get the cable price list ?

A: Please contact us with detail inquiry information, so we can offer the latest price for you.



6 Q: What's your MOQ?

A: In generally, we will ask at least 100pcs for the RF cable assembly, which we can make further negotiation.



7 Q: What's the delivery time?

A: Generally, we can deliver the cables in 3-5 working days once the payment is confirmed. Mass production is another matter.



8 Q: How do you solve after sale service?

A: After the receipt of goods, if you are not satisfied or any other problems , please contact us to communicate as soon as possible, we will give you a quickly and reasonable solution .Thanks a lot!
