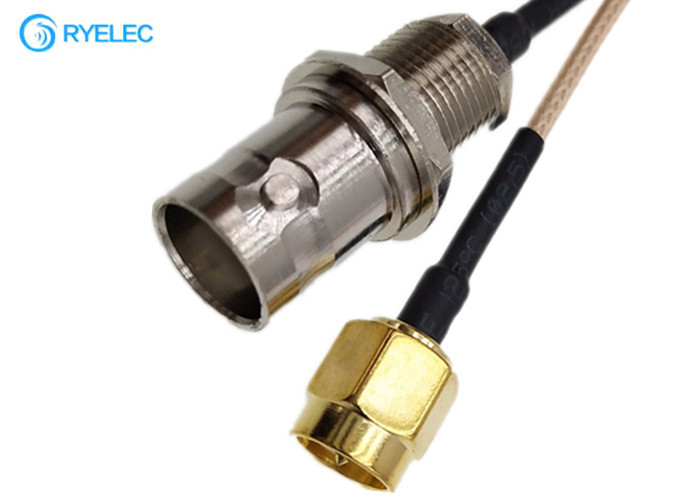

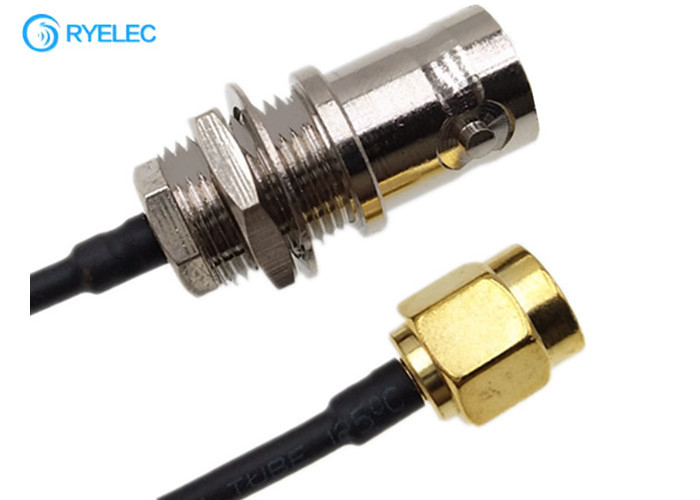

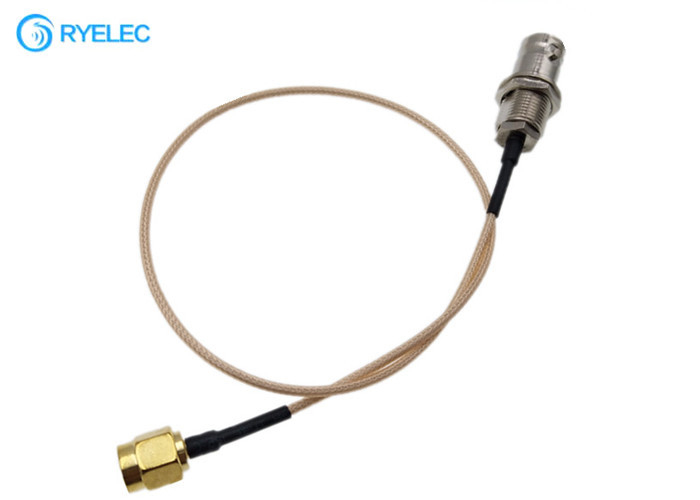

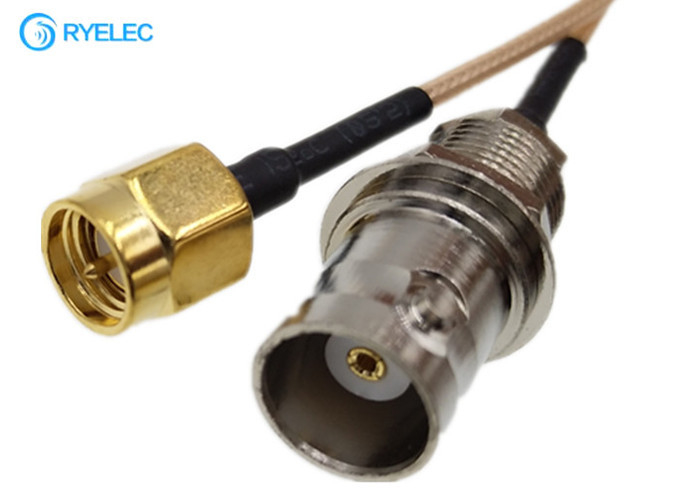

Rear Mounted Rf Coaxial Cable BNC Female To Sma Male Connector With RG178

Rear Mounted Rf Coaxial Cable BNC Female To Sma Male Connector With RG178

antenna coaxial cable

rf coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-8654278

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Type::
Coaxial
Gender::
Bnc To Smb
Impedance::
50ohm
Cable Type::
RG Series,low Loss Cable
Application::
RF Device
Certification::
CE/ROHS/ISO9001
Plating::
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~2.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description



rear mounted BNC female to sma male connector with RG178 rf coaxial cable


Electrical Characteristics



ELECTRICAL DATA



Impedance

50Ω



Frequency range

DC-6Ghz



VSWR

1.3 max



Voltage

60V AC(rms)



Insulation Resisitance 500 MΩ min.
Insertion Loss

0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ



Connector

BNC to SMA



MATERIAL DATA



Bodies

Brass--gold plating



Pin contacts

Brass--gold plating



Socket contacts

Copper-beryllium alloy--Au plating



Insulator

PTFE



Cable type

0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240



Application

smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc



Temperature range

-40°C to +80°C




Product Details:

Rear Mounted Rf Coaxial Cable BNC Female To Sma Male Connector With RG178 0

Rear Mounted Rf Coaxial Cable BNC Female To Sma Male Connector With RG178 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.

5. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



Our services:

Our Top Quality:

  • strong Group to provide you the most qualified products
  • years in wirelesss industry area to give us rich experience

Our Professional Services:

  • OEM&ODM approved
  • well-trained and experienced staffs answer your inquires within 24hours with fluent English
  • guarranty for 12months
  • giving you the best and detailed solution



FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

5.What’s your Shipping Methods?
By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
