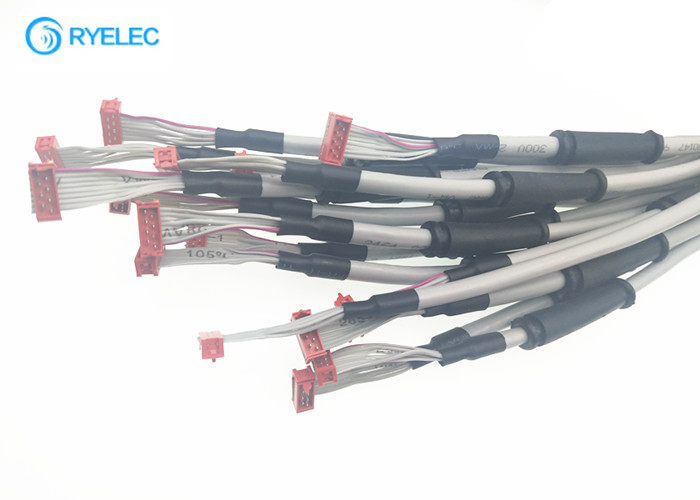

Micro MaTch 1.27mm Pitch Flat Ribbon Cable Assembly 8 Pin Red IDC Connector Round

Micro MaTch 1.27mm Pitch Flat Ribbon Cable Assembly 8 Pin Red IDC Connector Round

ribbon connector cable

idc ribbon cable assembly

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-8357

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
8pin
Application::
Electronic
Connector::
Idc
Housing::
Idc
Pitch::
1.27mm
Length::
Customized
Samples::
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD1.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description

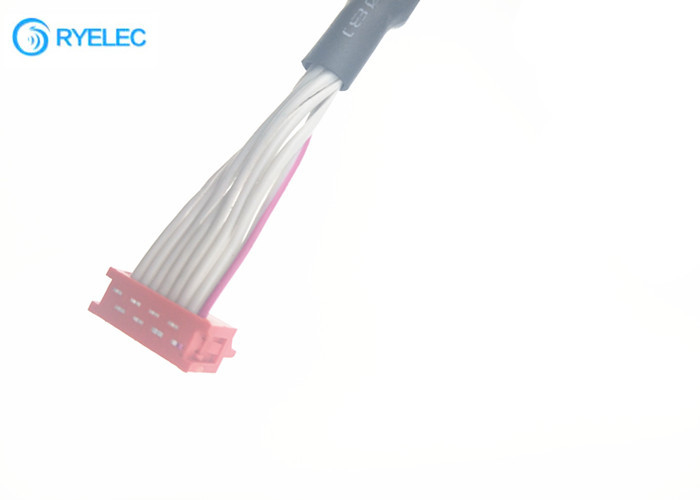

Micro-MaTch 1.27mm pitch 8pin red IDC connector with round flat ribbon cable ​



Product Type Features:

· Header Type :                                       Pin Header

· Connector System  :                             Wire-to-Board

· PCB Mounting Orientation  :                 Vertical

· Shrouded  :                                           Yes

· Connector Style :                                  Plug

· Profile   :                                               Low

· Connector & Contact Terminates To :  Wire & Cable

· Wire/Cable Type:                               Ribbon Cable

· Connector Type  :                              Connector Assembly

· Type of Connector  :                          Male-On-Wire

· Board Standoff :                                Without

· Product Type :                                   Connector



Electrical Characteristics

· Insulation Resistance (MΩ) :                      1000

· Operating Voltage (VDC):                           100

Contact Features

· Solder Tail Contact Plating Material  :         Tin over Nickel

· Contact Current Rating (Max) (A) :              1.5

· Contact Mating Area Plating Material :        Tin over Nickel

· Contact Type  :                                             Pin

· Contact Base Material  :                               Phosphor Bronze

· Vacuum Tape:                                               Without

· Contact Transmits (Typical) :                        Signal (Data)

· Contact Design  :                                           Dual Beam

· Contact Termination Area Plating Material  : Tin over Nickel

Termination Features

· Termination Method to Wire/Cable  Insulation Displacement Crimp (IDC)

PCB Mount Retention Without



Dimensions

· Insulation Diameter:                                    .9 mm [ .035 in ]

· Wire/Cable Size:                                         .08 – .09 mm², 28 AWG

· Height :                                                        6.8 mm [ .27 in ]

· Accepts Wire Insulation Diameter Range : .1 – .9 mm [ .003 – .035 in ]

· Length (mm):                                               16.2, 18.7, 21.3, 23.8, 26.3, 28.9, 34, 8.6

Usage Conditions

· Operating Temperature Range (°C):           -40 – 105

Industry Standards

· UL Flammability Rating  :                            UL 94V-0


Product Details:

Micro MaTch 1.27mm Pitch Flat Ribbon Cable Assembly 8 Pin Red IDC Connector Round 0

Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. OEM/ODM service.


FAQ:



1. Do you have stock?

We don’t have stock; we’ll start production after receiving PO.


2. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


3. How can I get quotation?

A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.



4. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



5. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

6. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.



7. What is your MOQ?
We can also accept 5 pieces order,small initial sample order are available.

8. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.


9. What is your delivery date?

The delivery date is about 5-15 days after receipt of payment.
