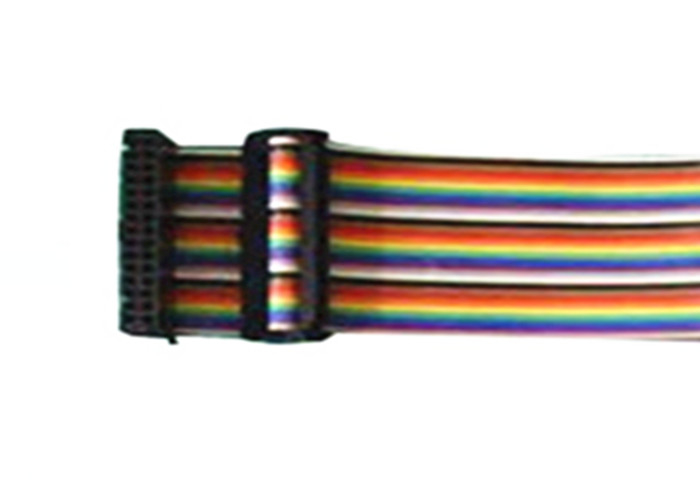

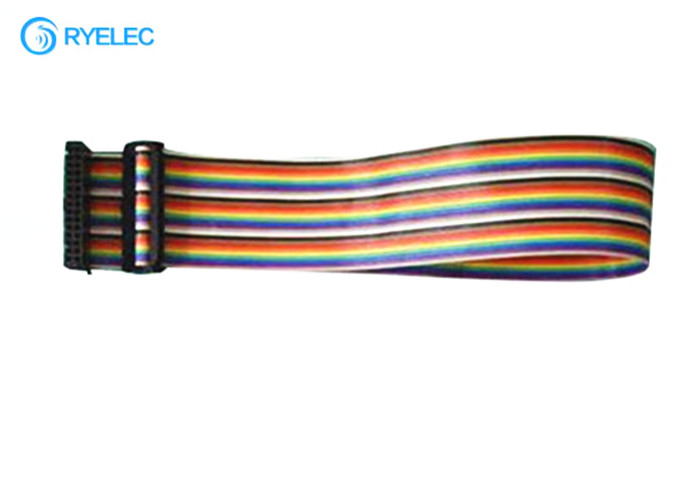

UL20012 28AWG 30pin IDC 2.54*2.54 TO 30pin IDC 2.54*2.54 pitch Flat rainbow Cables
Electrical Characteristics
| Specifications | |
|
Connector Pitch
|
1.27,2.0,2.54mm |
| Poles | 6~64 |
| Matched Flat Cable pitch | 1.27mm IDC Socket =>0.635mm UL2678# 30(7*0.1) Flat Grey Cable |
| 2.0mm IDC Socket =>1.0mm UL2651# 28(7*0.12) Flat Grey Cable | |
| 2.54mm IDC Socket =>1.27mm UL2651# 28(7*0.12) Flat Grey Cable | |
| Current Rating | 1AMP |
| Connector | Traditional IDC or Molex equivalent |
Product Details:
Application:
FFC wiring is currently widely used in the connection between printer head and main board, signal transmission and board connection of plotter, scanner, copier, audio, LCD electrical appliances, fax machines, various video disc machines and other products. In modern electrical equipment, almost nowhere.
Common models are as follows:
Type A: The two ends are connected and the reinforcing board is pasted on the insulating adhesive paper.
Type B: The reinforcing board is directly pasted on the insulating adhesive paper.
Type C: The two ends of the reinforcing plate are directly attached to the conductor.
Type D: The two ends of the reinforcing plate are directly pasted on the conductor.
Type E: One end of the reinforcing board is pasted on the insulating adhesive paper, the other end is soldered directly.
Type F: The two ends of the reinforcing board are directly attached to the insulating adhesive paper and half of the interior is peeled off.
Type G: Direct soldering at both ends.
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Good After-Sales Service: we could offer technical support or return service in short time.
4. 1 Year Warranty.
5. OEM/ODM service.
