Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-76123
Contact Us

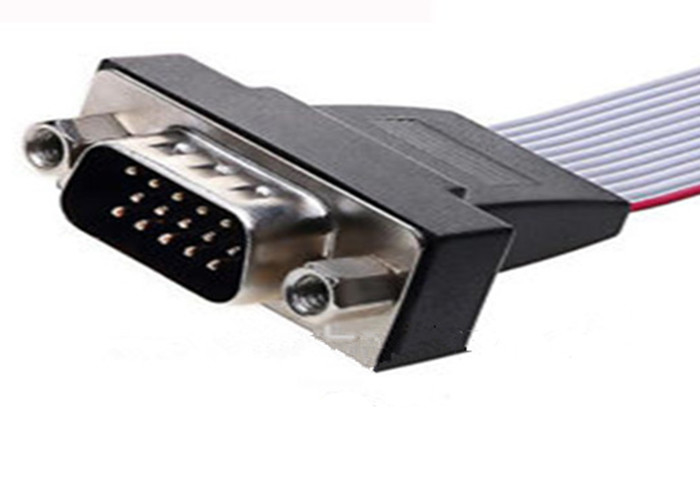

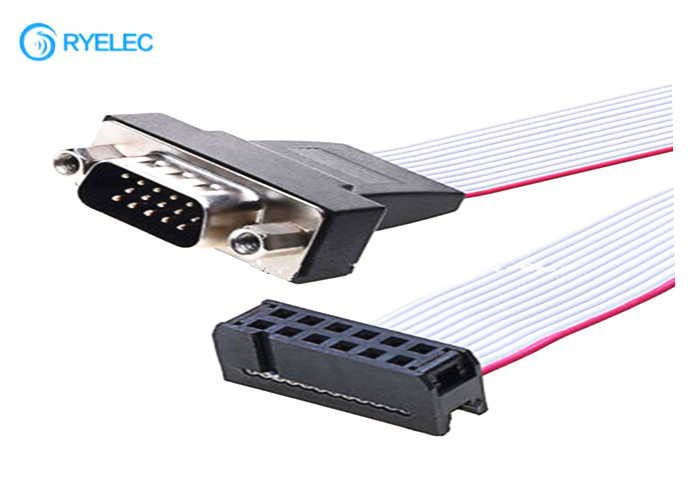

1.27mm Pitch 2x6P IDC to 15P HDB Male idc connector with UL2651 AWG28 flat ribbon cable
Electrical Characteristics
|
Cable type
|
UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type
|
||
|
Cable color
|
Optional
|
||
|
Connectors
|
JST AMP MOLEX | ||
|
Cable Length
|
50mm-15000mm.
|
||
|
Processing ways
|
Crimping, pressing and soldering types.
|
||
|
Pin out connection
|
As per customer’s request
|
||
|
Connector pitch range
|
0.5mm-4.2mm
|
||
|
characteristics
|
Good transferring, clearly pictures, no shaking, and transfer issues
|
||
|
dvantages
|
Manufacturing factory;
Competitive price and quality;
Short lead time
|
||
|
Applications
|
LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA
Camera/LCM/Notebook/tablet PC/ HDD
|
||
|
ISO certificate
|
ISO9001:2008
|
||
|
Service
|
OEM/ODM products are acceptable.
|
||
|
More information
|
ISO/RoHS/UL
|
||
|
Performance Test:
|
100% electrical and electricity performance test
|
||
Product Details:
Application:
FFC wiring is currently widely used in the connection between printer head and main board, signal transmission and board connection of plotter, scanner, copier, audio, LCD electrical appliances, fax machines, various video disc machines and other products. In modern electrical equipment, almost nowhere.
Common models are as follows:
Type A: The two ends are connected and the reinforcing board is pasted on the insulating adhesive paper.
Type B: The reinforcing board is directly pasted on the insulating adhesive paper.
Type C: The two ends of the reinforcing plate are directly attached to the conductor.
Type D: The two ends of the reinforcing plate are directly pasted on the conductor.
Type E: One end of the reinforcing board is pasted on the insulating adhesive paper, the other end is soldered directly.
Type F: The two ends of the reinforcing board are directly attached to the insulating adhesive paper and half of the interior is peeled off.
Type G: Direct soldering at both ends.
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. 1 Year Warranty.
4. OEM/ODM service.
6. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. Is there a standard size cable, plug, cord set, power cord?
No. Actually, to your advantage, there are many options to consider including material, size, configuration, application, and more. If you have a specific application consider contacting our technical sales and R&D team for assistance.
2. What is your minimum order?
Small quantity can be accepted, like 100pcs.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
4. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
