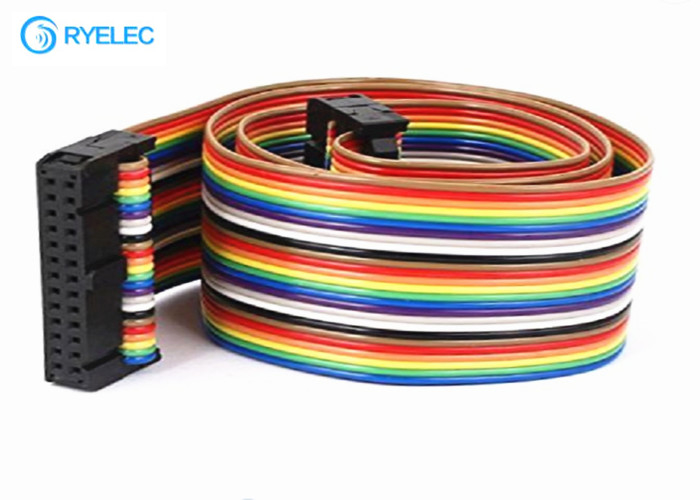

26 Pin Idc 2.54 To 26 Pin Colorful Ribbon Flat Cable Can Pressure 2.54 FC Head Connector

26 Pin Idc 2.54 To 26 Pin Colorful Ribbon Flat Cable Can Pressure 2.54 FC Head Connector

idc ribbon cable assembly

flexible flat ribbon cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-83368

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
26pin
Application::
Electronic
Connector::
Idc
Housing::
Idc
Pitch::
2.54mm
Length::
Customized
Samples::
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD1.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description







26pin idc2.54 to 26pin colorful ribbon flat cable Can pressure 2.54 FC head connector​



Product Specifications:



Applications



Desktop data transfer, Power transfer, Electronics, Communication data transfer



Wire Standard



Hook Up wire, UL, VDE, CSA

Applicated Wire



UL2678 30AWG, UL2651 28AWG, UL2651 28AWG

Conductor/Cable Pitch Range



0.635mm, 1.0mm, 1.27mm

Connector pitch range



1.27mm, 2.0mm, 2.54mm

Cable Conductor range





6~40P, 6~50P, 6~64P

Connector Pins/Positions



6~40P,6~50P, 6~64P

Cable Color



Grey with red edge or Grey with Blue edge

Connector color



Usually black, grey & red sometimes

Cable & Connector



Equivalent or Superior quality

Cable length



10cm, 15cm, or cusomized by customers





Product Details:

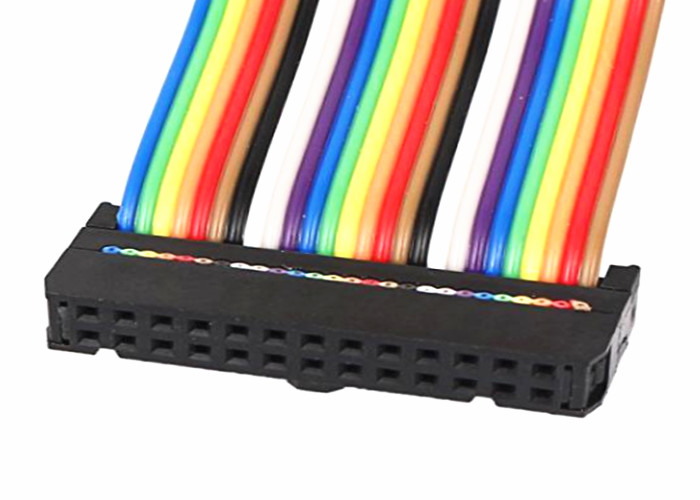

26 Pin Idc 2.54 To 26 Pin Colorful Ribbon Flat Cable Can Pressure 2.54 FC Head Connector 0

Application:

FFC wiring is currently widely used in the connection between printer head and main board, signal transmission and board connection of plotter, scanner, copier, audio, LCD electrical appliances, fax machines, various video disc machines and other products. In modern electrical equipment, almost nowhere.

Common models are as follows:

Type A: The two ends are connected and the reinforcing board is pasted on the insulating adhesive paper.

Type B: The reinforcing board is directly pasted on the insulating adhesive paper.

Type C: The two ends of the reinforcing plate are directly attached to the conductor.

Type D: The two ends of the reinforcing plate are directly pasted on the conductor.

Type E: One end of the reinforcing board is pasted on the insulating adhesive paper, the other end is soldered directly.

Type F: The two ends of the reinforcing board are directly attached to the insulating adhesive paper and half of the interior is peeled off.

Type G: Direct soldering at both ends.



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. OEM/ODM service.


FAQ:



1. Do you have stock?

We don’t have stock; we’ll start production after receiving PO.


2. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


3. How can I get quotation?

A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.



4. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



5. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

6. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
