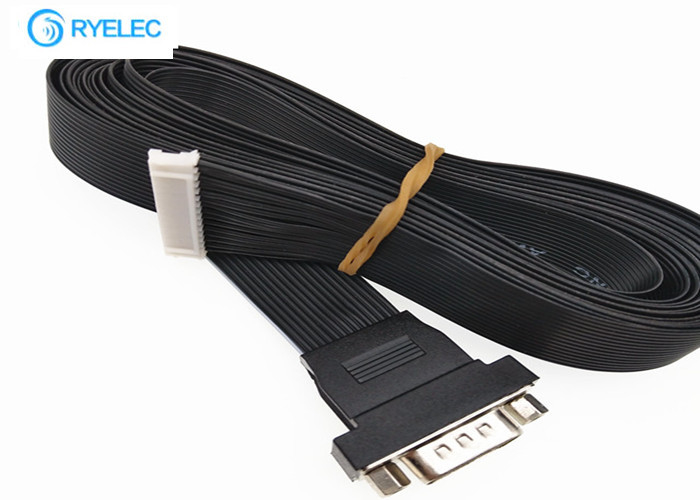

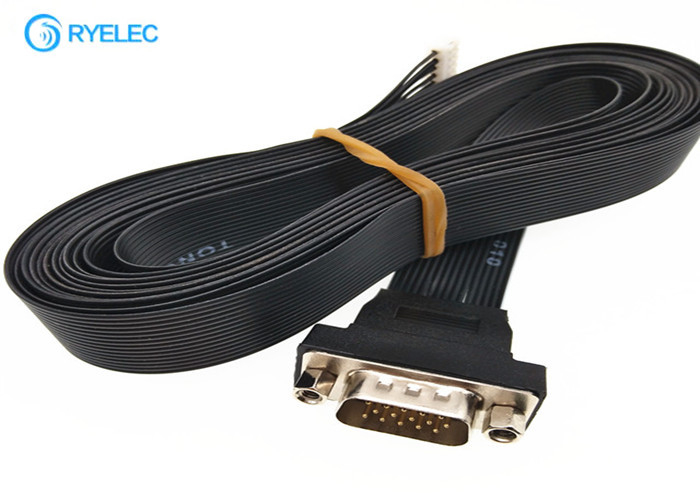

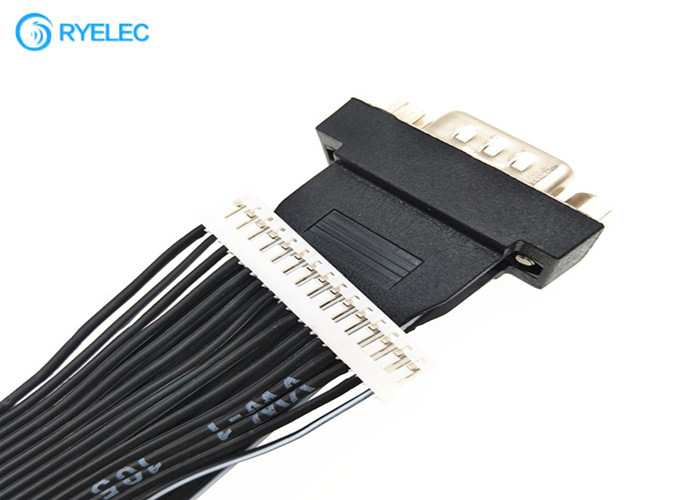

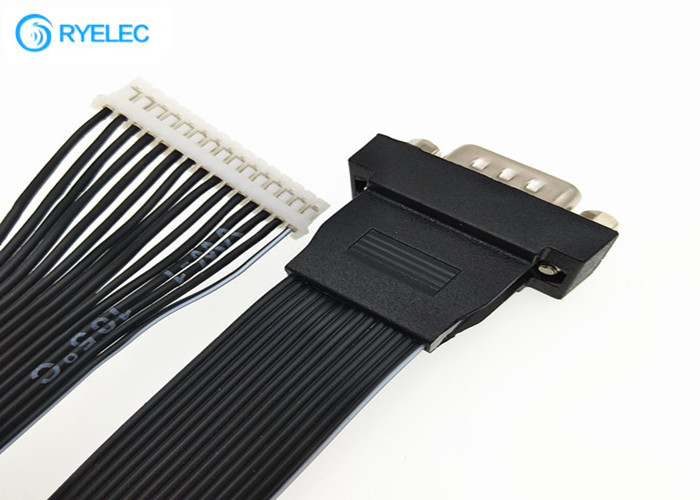

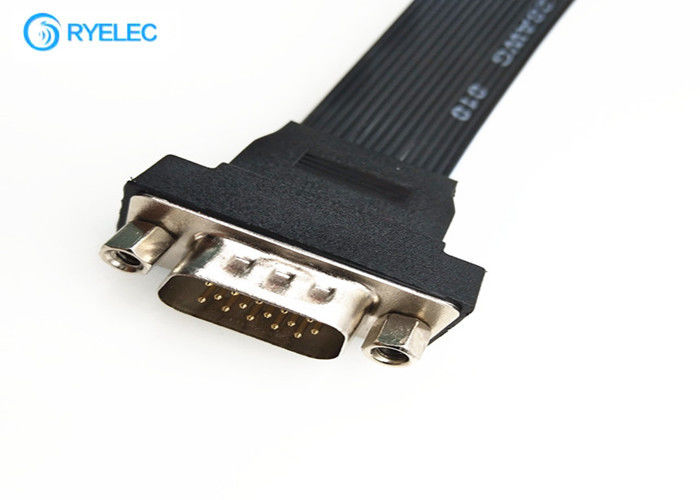

Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs

Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs

    • Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs
    • Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs
    • Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs
    • Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs
    • Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs
  • Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-147385

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD1.88~8.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Pin: 60pin
    Application:: Electronic Connector:: HDB15
    Housing:: PH Pitch:: 2.0mm
    Length:: Customized Samples:: Available





    Black HDB15 Male Ends With 15 Conductor Flat Ribbon Cable With 15 Pin Ph2.0 Plugs ​







    Electrical Characteristics:



    Standard insulator



    PBT thermoplastic,30%glass filled(UL94V-0 rated)

    Insulator color



    Blue/Black/White

    Contacts material



    Brass

    Contact Plating



    Gold Plated

    Shell Material



    SPCC

    Shell Plating



    Nickel (or Tin,Zinc,Gold)Plated Steel

    Hardware Plating



    Steel,Nickel (or Tin,Zinc,Gold)Plated

    PIN CONTACT



    Phosphor Bronze Or Brass Gold Plated

    Insulator



    PBT&GLASS-FIBRE Reinforced UL-94-VO
    Electrical:

    Rated load



    0.5A 30V DC

    Contact resistance



    30MΩ Max

    Insulation resistance



    1000 MΩ Min.AT 500V DC

    Dielectric Withstand Voltage



    500V AC for 1 minute Min.

    Mechanical:



    Insertion force



    0.75 lbs max.

    Extraction force



    0.44 lbs min.

    Life



    5000 Times

    Temperature Rating:





    Operating temperature:



    -55°C to +105°C

    Packaging:



    Plastic Bag (Inner)+Carton(Outter)





    Product Details:

    Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs

    Black HDB15 Male Ends 15 Conductor Ribbon Cable Assemblies With 15 Pin Ph2.0 Plugs



    Our Company:


    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:


    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Fast Delivery Time :2~15 days, On-Time Delivery.

    4. Good After-Sales Service: we could offer technical support or return service in short time.

    5. OEM/ODM service.


    FAQ:



    1. Do you have stock?

    We don’t have stock; we’ll start production after receiving PO.


    2. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


    3. How can I get quotation?

    A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.



    4. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.



    5. How long can I expect to get the sample?
    After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

    6. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.



    7. What is your MOQ?
    We can also accept 5 pieces order,small initial sample order are available.

    8. What about the lead time for mass production?
    Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.


    9. What is your delivery date?

    The delivery date is about 5-15 days after receipt of payment.
