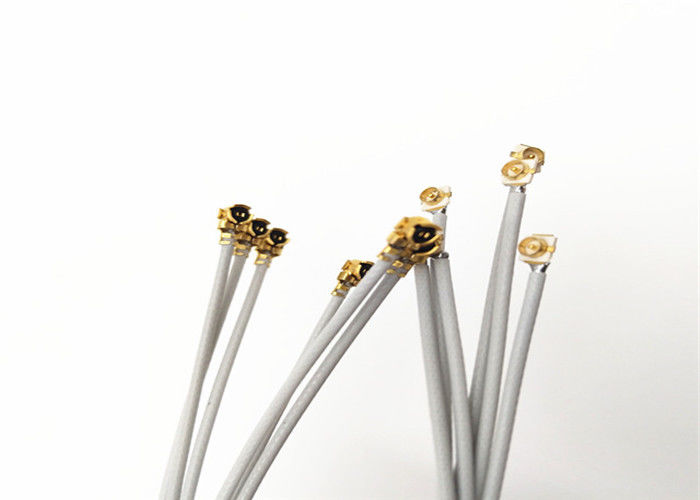

Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord

Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord

    • Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord
    • Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord
    • Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord
    • Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord
    • Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord
  • Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord

    Product Details:

    Place of Origin: China
    Brand Name: RY
    Certification: CE,ROHS
    Model Number: RY-856245

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: USD0.88~2.88
    Delivery Time: Shipped in 3 days after payment
    Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Brand Name:: RY Type:: Coaxial
    Gender:: Male To Female Connector:: Ufl To Ufl
    Cable Type:: RG Series,low Loss Cable Application:: RF Device
    Certification:: CE/ROHS/ISO9001 Plating:: Nickel Or Gold







    Ufl IPX Male To Ufl IPX Female 1.13mm Extension Cord Rf Coaxial Wifi Pigtail Cable ​





    Electrical Characteristics



    ELECTRICAL DATA



    Impedance

    50Ω



    Frequency range

    DC-6Ghz



    VSWR

    1.3 max



    Voltage

    60V AC(rms)



    Insulation Resisitance 500 MΩ min.
    Insertion Loss

    0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ



    Connector

    male to female ufl



    MATERIAL DATA



    Bodies

    Brass--gold plating



    Pin contacts

    Brass--gold plating



    Socket contacts

    Copper-beryllium alloy--Au plating



    Insulator

    PTFE



    Cable type

    0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240



    Application

    smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc



    Temperature range

    -40°C to +80°C




    Product Details:

    Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord

    Coaxial Wifi Pigtail RF Cable Assemblies Ufl IPX Male To Ufl IPX Female Extension Cord

    Product Introduction:


    RY offers a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths.

    Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. Custom assemblies are also available.

    • 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements;
    • 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating;
    • Three grades of connectors are available for military, industrial and commercial applications.



    Our Company:
    1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

    2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

    Our advantages:
    1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

    2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

    3. Good After-Sales Service: we could offer technical support or return service in short time.

    4. 1 Year Warranty.

    5. We are available with Alibaba Trade Assurance, you'll enjoy:
    •100% product quality protection



    FAQ:

    1. When can I ?
    We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

    2. How can I get a sample to check your quality?
    After price confirmation, you can require for samples to check our quality.



    3. Can you do the design for us?
    Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.



    4. can I make OEM or ODM orders?

    We have different print processing,different OEM orders please contact again or view more items on our alibaba page.


    5.What’s your Shipping Methods?
    By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
