2x8 Pin Fc -16p To Fc -10p Idc Ribbon Cable Female To Female Copper Flat Ribbon Cable

2x8 Pin Fc -16p To Fc -10p Idc Ribbon Cable Female To Female Copper Flat Ribbon Cable

ribbon connector cable

flexible flat ribbon cable

Place of Origin:

China

Certification:

CE,ROHS

Model Number:

RY-72456

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Pin:
16-10pin
Application:
Electronic
Connector:
Idc 2.54
Housing:
Idc 2.54
Wire Pitch:
1.0mm
Length:
Customized
Samples:
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~3.88
Packaging Details
1pc/bag
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description





2x8pin Fc-16p To Fc-10p Idc Connector 2.54mm Female To Female Copper Flat Ribbon Cable





Electrical Characteristics



Part Status



Active

Connector Type



Header

Contact Type



Male Pin

Pitch - Mating



0.100" (2.54mm)

Number of Positions



16

Number of Rows



2

Row Spacing - Mating



0.100" (2.54mm)

Number of Positions Loaded



All

Style



Board to Board or Cable

Shrouding



Shrouded - 4 Wall

Mounting Type



Through Hole

Termination



Solder

Fastening Type



Push-Pull

Contact Length - Mating



0.236" (6.00mm)

Contact Length - Post



0.110" (2.79mm)

Overall Contact Length



-

Insulation Height



0.350" (8.89mm)

Contact Shape



Square

Contact Finish - Mating



Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)

Contact Finish - Post



Tin

Contact Material



Brass

Insulation Material



Polybutylene Terephthalate (PBT)

Features



-

Operating Temperature



-55°C ~ 85°C

Ingress Protection



-

Material Flammability Rating



UL94 V-0

Insulation Color



Black

Current Rating



1A

Voltage Rating



200V

Mated Stacking Heights



-

Contact Finish Thickness - Post



78.7µin (2.00µm)

Applications



-




Product Details:

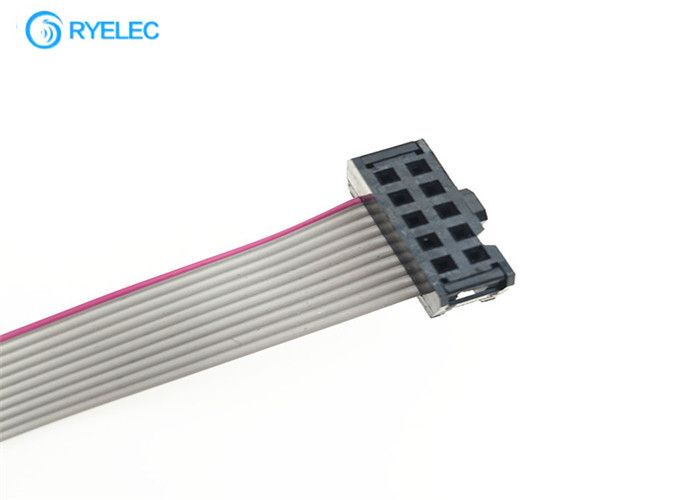

2x8 Pin Fc -16p To Fc -10p Idc Ribbon Cable Female To Female Copper Flat Ribbon Cable 0

2x8 Pin Fc -16p To Fc -10p Idc Ribbon Cable Female To Female Copper Flat Ribbon Cable 1



Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection



FAQ:


1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
