50 Pin 1mm Flat Ribbon Cable Assembly With Idc Socket 2.0mm Brass Gold Plated Connector

50 Pin 1mm Flat Ribbon Cable Assembly With Idc Socket 2.0mm Brass Gold Plated Connector

ribbon connector cable

flexible flat ribbon cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-85346

Contact Us

Request A Quote
Product Details
Brand Name::
RY
Pin:
50pin
Application::
Electronic
Connector::
IDC 2.54
Housing::
IDC 2.54
Rated Voltage::
100V AC,DC
Length::
Customized
Samples::
Available
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~8.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description







50pin 28awg 1mm Pitch Flat Ribbon Cable With Idc-Socket 2.0mm Brass Gold Plated Connector​







Electrical Characteristics



Specifications
Connector Pitch
1.27,2.0,2.54mm
Poles 6~64
Matched Flat Cable pitch 1.27mm IDC Socket =>0.635mm UL2678# 30(7*0.1) Flat Grey Cable
2.0mm IDC Socket =>1.0mm UL2651# 28(7*0.12) Flat Grey Cable
2.54mm IDC Socket =>1.27mm UL2651# 28(7*0.12) Flat Grey Cable
Current Rating 1AMP
Connector Traditional IDC or Molex equivalent




* IDC Cable Pitch: 0.635MM 1.0MM 1.27MM 2.0MM 2.54MM

* IDC Connector Pitch: 1.27MM 2.0MM 2.54MM

* Wire gage: UL2651 32AWG 30AWG 28AWG 26AWG 24AWG
* Copper wire Conductor: General 7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.12MM, 7/0.16MM, 7/0.2MM (7 of 7-strand copper wire)
* Conductor cross-sectional area: 0.36mm2
* Insulator tensile strength 1.066Kg/mm2
* Spark test 3.0KV/0.15SPC
* Withstand Voltage: 2KV 10mA /
* Conductor resistance ≤237 ohms RM
* Insulation resistance ≥100m ohm/RM
* Capacitance 40PF/M
* Impedance: 100 ohms
* Operating temperature: -40 °C ~ + 105 °C
* Insulation Jacket: Environmental PVC 45P (RoHS) 8058 Grey
* Testing requirements:
UL 50 pin 2 54mm pitch ribbon cable has Good appearance, without defects of plastic injection molding, Metal parts may not have scratches, deformation and other defects of performance to meet the requirements
This UL 50 pin 2 54mm pitch ribbon cable widely used in various computer equipment, machinery, electrical appliances, cars, color TV, air conditioning, LED display, DVD, VCD, and other connectors and connector.



Product Details:

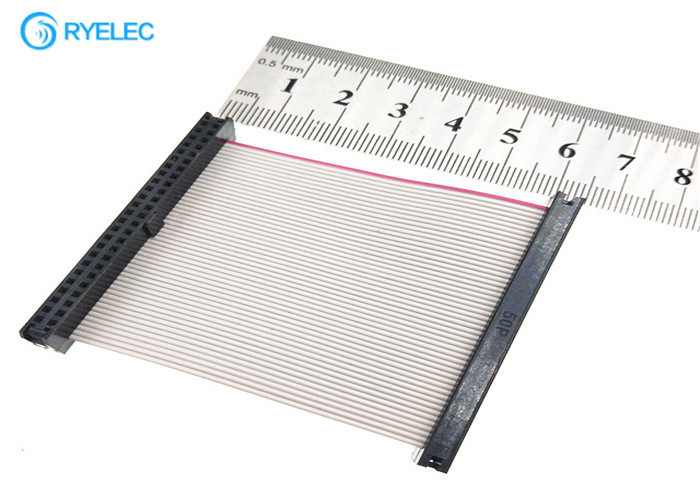

50 Pin 1mm Flat Ribbon Cable Assembly With Idc Socket 2.0mm Brass Gold Plated Connector 0

50 Pin 1mm Flat Ribbon Cable Assembly With Idc Socket 2.0mm Brass Gold Plated Connector 1

Our Company:


1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:


1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.

5. OEM/ODM service.

7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount




FAQ:



How to buy the IDC Cable?

1. Tell us what pitch of the IDC Connector you want? Options:1.27,2.0 & 54mm



2. Tell us what the Connectors No of pins you need.



3. Tell us if you need the Strain Relief or not.Price for with SR or without SR is almost same.



4. Tell us the contact plating you need? Standard is Tin 50μ“ over Nickle,if you have different requirement,       pls tell us.



5. What is the lead time for production? Generally 2weeks for order.



6. Could I buy lower than your MOQ request? Yes, it depends on the cable length and number of pins.
