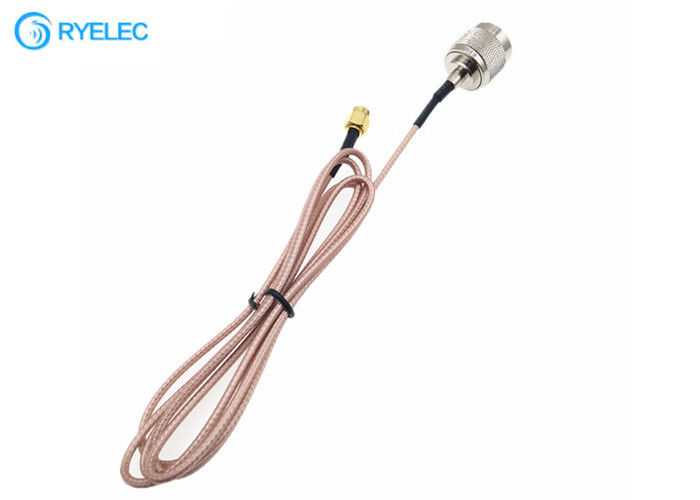

N Male Plug Straight To Gold Plated SMA Male Pigtail Antenna Cable Coaxial

N Male Plug Straight To Gold Plated SMA Male Pigtail Antenna Cable Coaxial

antenna coaxial cable

rf coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

RY-0316

Contact Us

Request A Quote
Product Details
Brand Name:
RY
Type:
Coaxial
Gender:
Male To Male
Connector:
N To SMA
Cable Type:
RG Series,low Loss Cable
Application:
RF Device
Certification:
CE/ROHS/ISO9001
Plating:
Nickel Or Gold
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.88~2.88
Delivery Time
Shipped in 3 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability
10000pcs
Product Description



N Male Plug Straight To Gold Plated SMA Male Pigtail Antenna Cable Coaxial





Electrical Characteristics



RG 316/U SPEC SHEET

STYLE:

UL 1979 105°C 30V



SIZE:

26AWG



DOCUMENT NO:

WS31601A00

STANDARD: MIL-C-17



CONDUCTOR



SIZE:

AWG

26



MATERIAL:



Silver-Coated Copper
Clad Steel

CONDUCTORS NO.



7



CONSTRUCTION SIZE

mm

0.175



STRANDED DIAMETER

mm

0.53

INSULATION



MATERIAL:



FEP



COLOR:



Clear



AVERAGE THICKNESS

mm

0.51

DIAMETER

mm

1.53 ± 0.03



DOUBLE SHIELDED



MATERIAL



Silver-Coated Copper



CONSTRUCTION

mm

16/5/0.10



COVERAGE

%

95



DIAMETER

mm

2.33 ± 0.05



JACKET



MATERIAL



FEP



COLOR



Brown



AVERAGE THICKNESS

mm

0.30

OVERALL DIAMETER

mm

2.9 ± 0.10



MARKING

M17 / 113-RG316 MIL-C-17 DOUBLE SHIELD MIL-C-17





Product Details:

N Male Plug Straight To Gold Plated SMA Male Pigtail Antenna Cable Coaxial 0

N Male Plug Straight To Gold Plated SMA Male Pigtail Antenna Cable Coaxial 1

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.



3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6.What’s your Shipping Methods?
By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.
