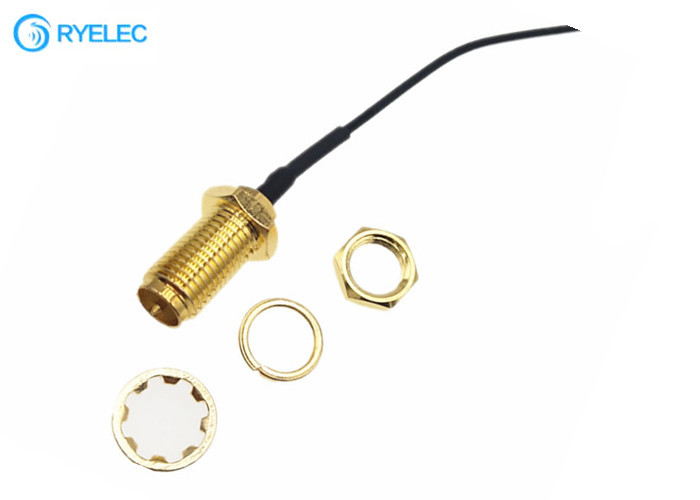

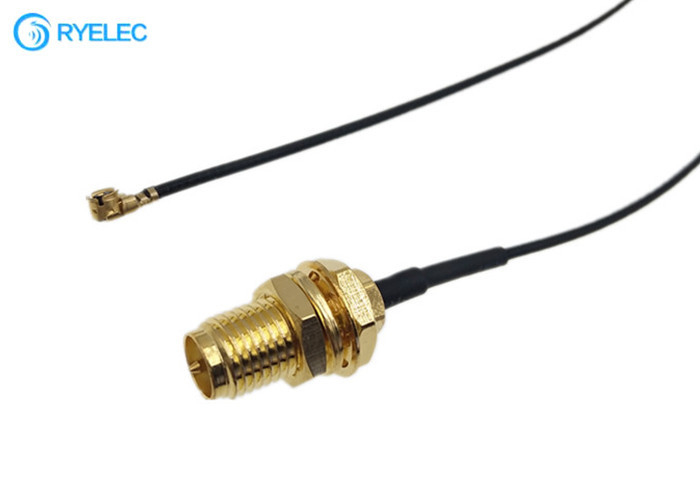

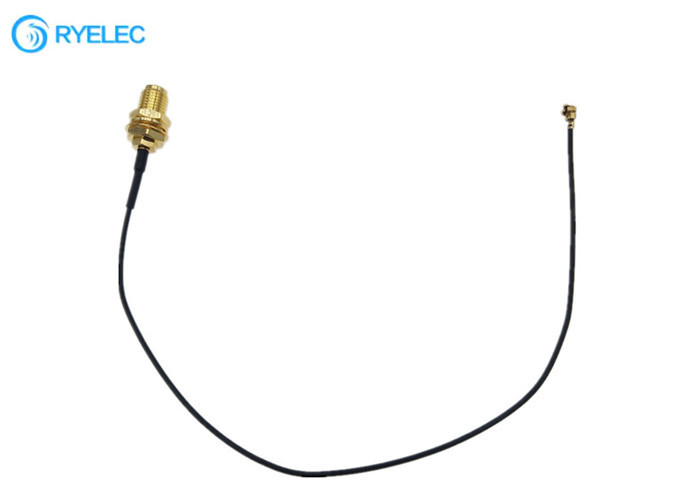

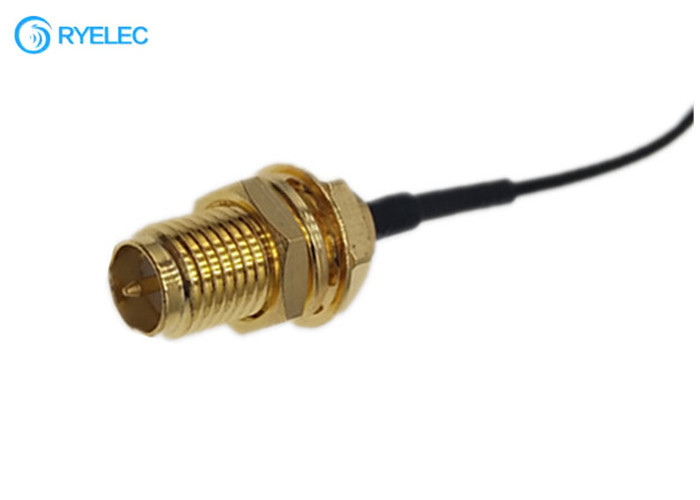

GPS GSM Antenna RP SMA Female To IPEX UFL Wifi Antenna Extension Jumper 1.13mm Cable

Product Details:
Place of Origin: China
Brand Name: RY
Certification: CE,ROHS
Model Number: RY-041323
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD0.88~3.88
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T,Paypal, Western Union, MoneyGram
Supply Ability: 10000pcs
Contact Now

Detail Information

Brand Name: RY Type: Coaxial
Connector: RP SMA Female To UFL Impedance: 50ohm
Cable Type: RG Series,low Loss Cable Application: RF Device
Certification: CE/ROHS/ISO9001 Plating: Nickel Or Gold
High Light:

antenna coaxial cable


rf coaxial cable

Product Description


GPS GSM Antenna RP SMA Female To IPEX UFL Wifi Antenna Extension Jumper 1.13mm Cable



Electrical Characteristics


1) Product Information
Place of Origin Jiangsu , China
Brand Name RY
Model Number RY-041323
2) Technical Information
Center Frequency(MHz) 0-3GHz
V.S.W.R ≤1.5
Impedance 50Ω
Maximum input power 50W
3) Mechanical Information
Cable Type RF1.13/RG178 or customized
Material Copper
Cable length (mm) 150mm for customized
Connector SMA/IPEX /U.FL or customized

Product Details:

GPS GSM Antenna RP SMA Female To IPEX UFL Wifi Antenna Extension Jumper 1.13mm Cable 0

GPS GSM Antenna RP SMA Female To IPEX UFL Wifi Antenna Extension Jumper 1.13mm Cable 1

What kinds of SMA adapters are common? There are three types of interfaces:


1. Thread connection


For example, Sam to 7/16, SMA to N, SMA to TNC, etc. Because of the threaded connection, the plug and socket are more stable, reliable, and have stronger anti-vibration and anti-collision ability.


2. Clamp connection


Such as SMA to BNC. Because of the use of card type connection, easy to use, connection is not easy to loosen, separation is very fast, many medical equipment, electronic instruments are used.


3. Plug in connection


Such as SMA to SMB, SMA to MCX, etc. Its characteristic is that some of them adopt locking structure. Most of them are small in size, light in weight and compact in structure. It is suitable for the instruments and equipments which require the weight and volume of the system. It is also suitable for the installation of drawer type, arrangement type and building block type.


Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



1 Q: Some connectors are available with different cables. Which cables shall I choose?

A: In a nutshell, if there are different cables which can be equipped with the same connector: always choose the cable with the bigger diameter (simply because the bigger diameter results in less attenuation).


2 Q: Can you provide customization?

A: Of course. Personalized designs of RF cable assembly products according to customer's requirements are welcomed.


3 Q: Can you send a sample for us to develop?

A: Yes, normally we can provide 1 or 2 samples of the small RF cable assembly.


4 Q: How much the shipping cost will be for sample ?

A: That depends on the specific weight and packing size of the goods.


5 Q: How can I get the cable price list ?

A: Please contact us with detail inquiry information, so we can offer the latest price for you.


6 Q: What's your MOQ?

A: In generally, we will ask at least 100pcs for the RF cable assembly, which we can make further negotiation.


7 Q: What's the delivery time?

A: Generally, we can deliver the cables in 3-5 working days once the payment is confirmed. Mass production is another matter.


8 Q: How do you solve after sale service?

A: After the receipt of goods, if you are not satisfied or any other problems , please contact us to communicate as soon as possible, we will give you a quickly and reasonable solution .Thanks a lot!
