Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
RY-FF-BNC-UFL-178
Contact Us

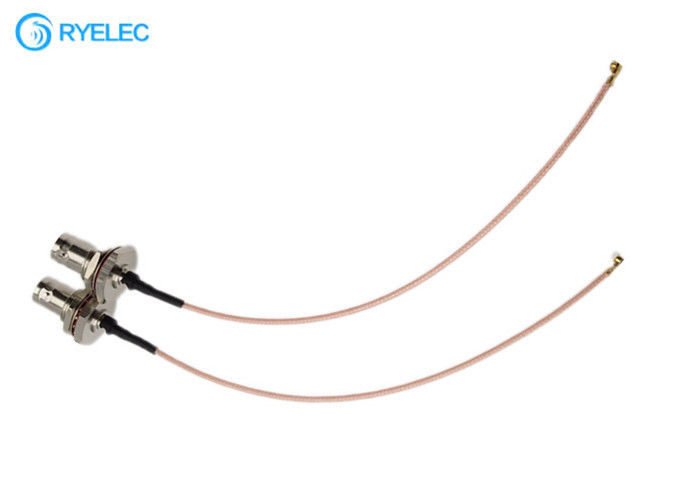

150MM Waterproof IP76 BNC Female Rear Bulkhead To IPEX UFL With RG178 Pigtail Cable
Electrical Characteristics:
| Characteristic Impedance |
50ohm
|
|
| Frequency Range | 0-3GHz |
|
| VSWR |
≤1.2
|
|
| Intermodulation 3rd Order | -107dBm(-150dBc) @2x43dBm,910MHz |
|
| Dielectric Withstanding Voltage | 4000 VRMS(min at sea level) |
|
| Insulation Resistance |
10000 megohms(min)
|
|
|
Mechanical Data
|
||
| Durability Mating |
500 Cycles min
|
|
|
Material Data
|
||
| Connector Parts | Materials |
Plating Finish
|
| Body | Brass |
Nickel or Silver
|
| Male Pin | Brass |
Gold or Sliver
|
| Insulators | PTFE |
N/A
|
| Clamp Gaskets | Silicone Rubber or Synthetic Rubber |
N/A
|
|
Environmental Data
|
||
| Temperature Range |
-45~+85℃
|
|
Product Details:
☀ We focus on coaxial connectors.
☀ Our custom RF cable connectors are built-in and shipped worldwide.
☀ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Related Products:
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
