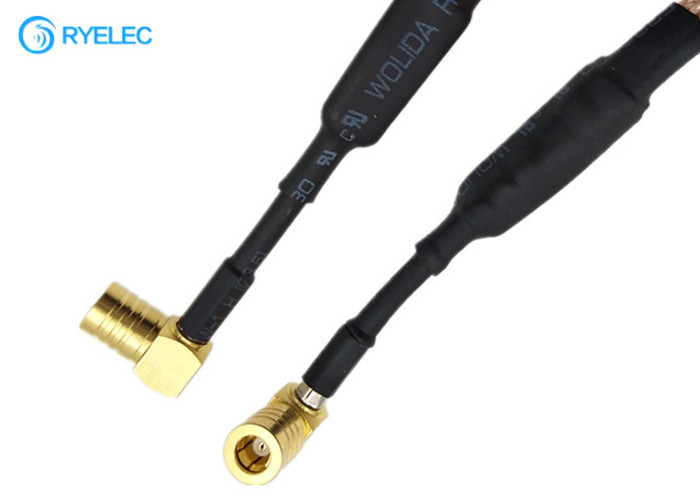

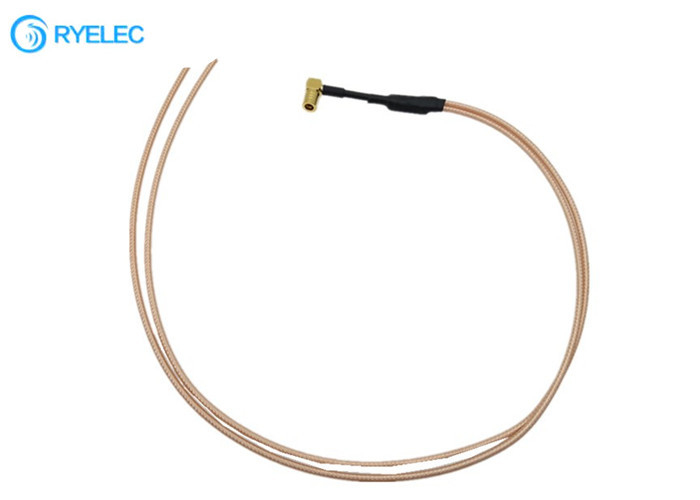

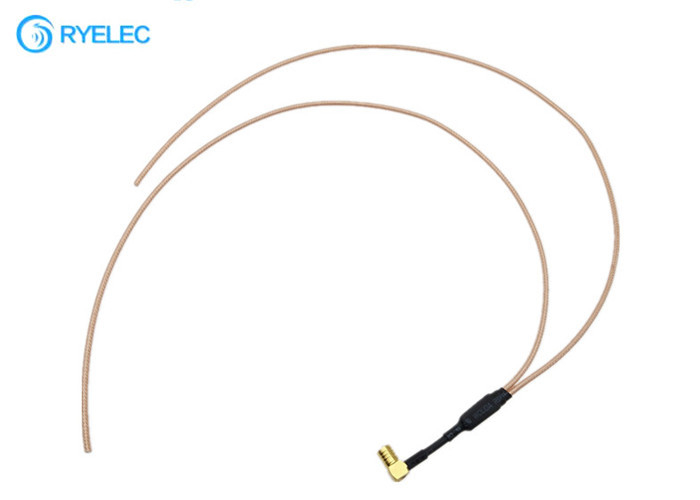

Smb Female Right Angle Jack Junction Box Cable With 2 Co-Ax Pigtail RG316 Cable
Electrical Characteristics:
| Radio frequency cables with Fep brown jacket |
RG316
|
||
| Inner conductor material | Silver-plated copper |
Structure
|
7*0.175mm |
| Insulation layer | Polytetrafluoroethylene |
Size
|
1.53mm |
| Outer conductor | Silver plated copper wire |
size
|
1.95mm |
| Jacket | FEP,brown |
Impedance
|
50ohms |
| Capacitance | 106pF/m |
Signal delay
|
4.7ns/m |
| Voltage withstand | 2000V rms/min |
Insulation resistance
|
1500M ohm/km |
| Velocity of propagation | 70% |
Temperature rating
|
150 degree |
Product Details:
RY offers a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths. Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. Custom assemblies are also available.
• 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements;
• 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating;
• Three grades of connectors are available for military, industrial and commercial applications.
