Golden Plated Mcx Male Plug Straight Connector Antenna With Rg174 Pigtail Cable
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||20|
|Packaging Details:||sample carton:17*12*4cm / 42*42*20cm / 70*70*40cm|
|Delivery Time:||Shipped in 9 days after payment|
|Payment Terms:||L/C, T/T,Paypal, Western Union, MoneyGram|
|Connector 1:||Bulkhead SMA RP Female||Connector 2:||UFL|
|Cable Type:||1.13MM Grey||Length:||20cm / Customized|
|Name:||RP SMA Female To UFL||Frequency:||DC 0-6G|
RP SMA RF Cable Assemblies,
Bulkhead RF Cable Assemblies,
Straight To UFL RF Cable

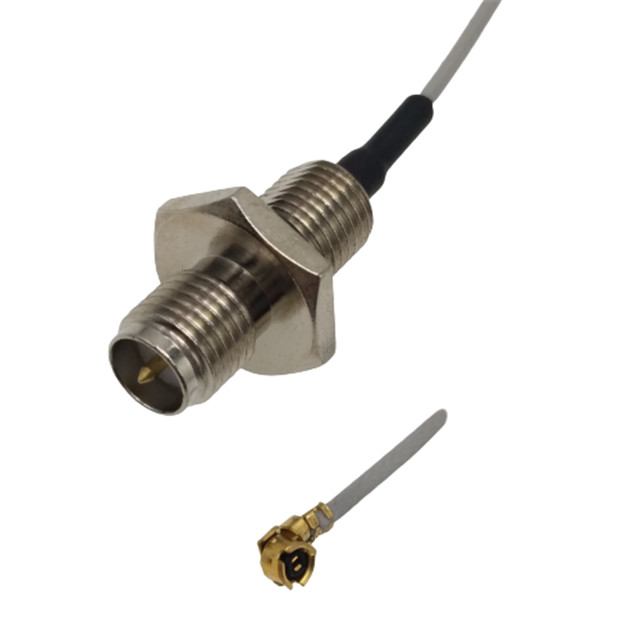

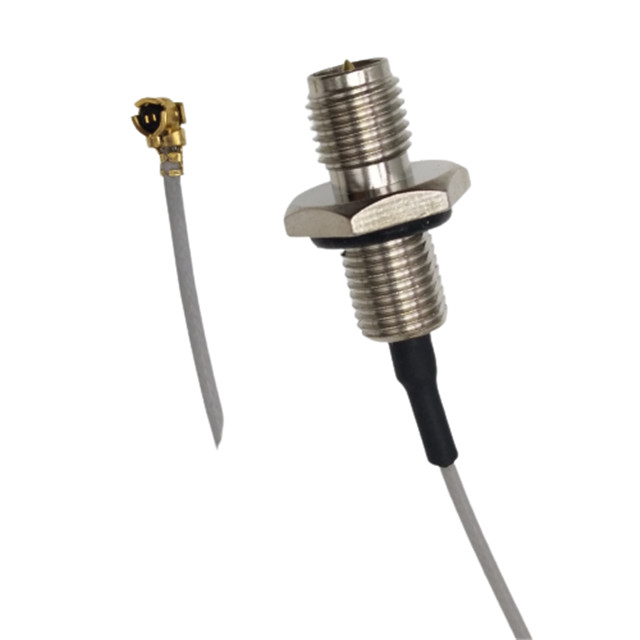

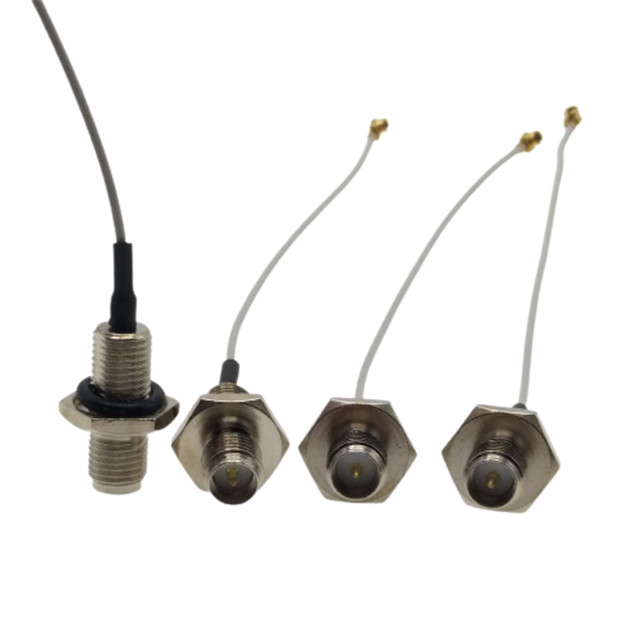

RP SMA Female Nickel Plated Bulkhead Straight To U. FL UFL With 113 1.13 Grey RF Cable
Coaxial cable is sometimes called RF cable or RF coaxial cable. Coaxial RF cable is the most commonly used structure. Because the inner and outer conductors are concentric, the electromagnetic energy is limited in the medium between the inner and outer conductors, so it has the advantages of small attenuation, high shielding performance, wide frequency band and stable performance. It is usually used to transmit RF energy from 500 kHz to 18 GHz. Coaxial cable has two concentric conductors, and the conductor and shield share the same axis. The most common coaxial cable is composed of copper conductor isolated by insulating material. Outside the inner insulating material is another layer of ring conductor and its insulator, and then the whole cable is wrapped by PVC or Teflon sheath. Coaxial cable can be divided into 50 Ω baseband cable and 75 Ω broadband cable. Baseband cable is divided into thin coaxial cable and thick coaxial cable. Baseband cable is only used for digital transmission, and the data rate can reach 10Mbps.
Coaxial cable structure and material
The most important electrical performance of cable is low attenuation, uniform impedance and high return loss. The key point for leaky cable is the best coupling loss. The main function of the cable is to transmit signals. Therefore, it is very important to ensure that the cable structure and materials have good transmission characteristics throughout the service life of the cable.
☀ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
☀ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
Packaging & Shipping:
1. Usually we ship your order by .
