Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS/ISO
Model Number:
RY-GJXH-2B6
Contact Us

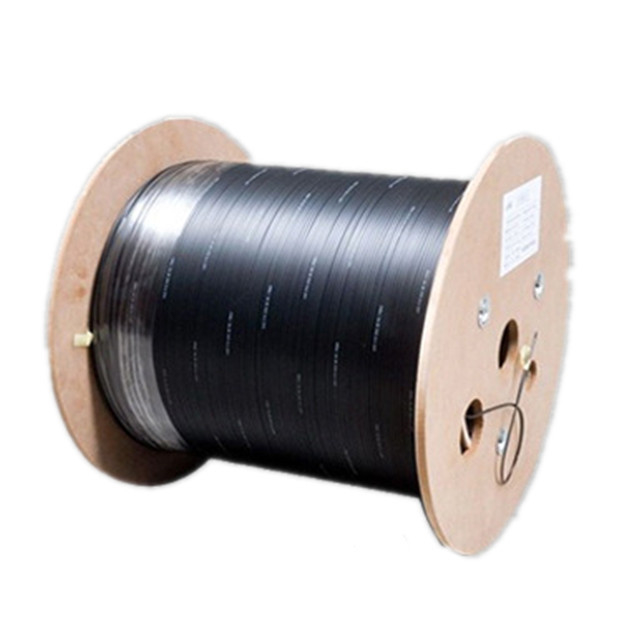

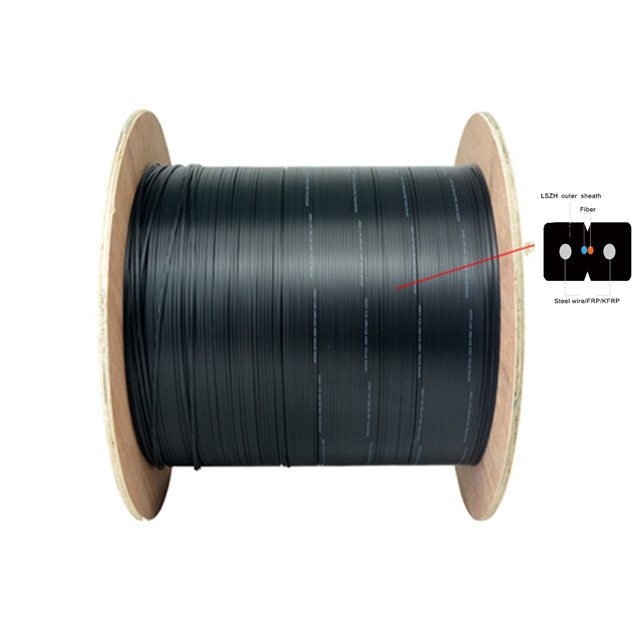

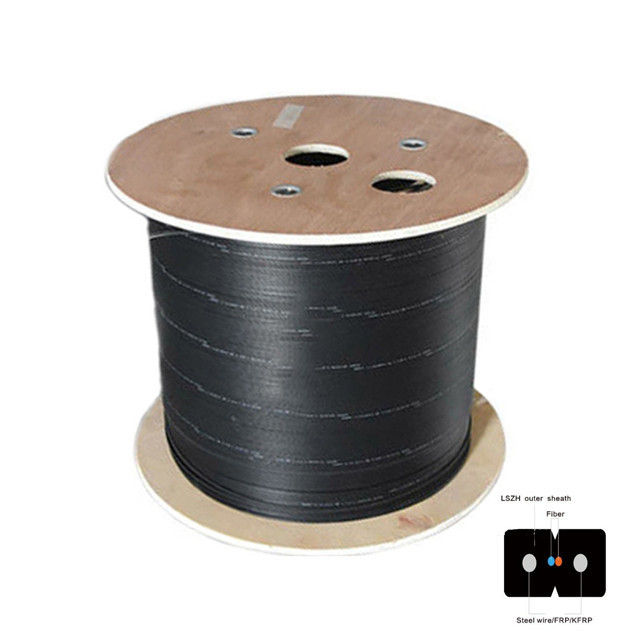

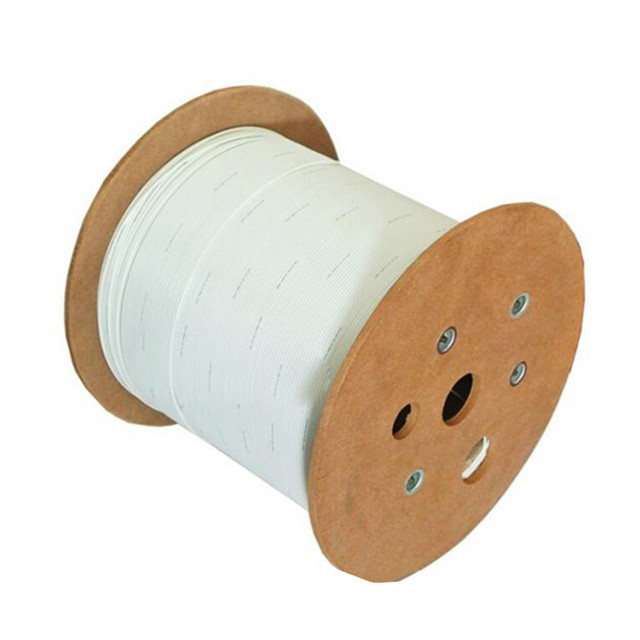

Indoor GJYXCH GJYXFCH FTTH FTTH 2 Core G657A2 Fibra Drop Flat Cable Fiber Optic Meter Price
How fiber optics works?
Fiber optics transmit data in the form of light particles -- or photons -- that pulse through a fiber optic cable. The glass fiber core and the cladding each have a different refractive index that bends incoming light at a certain angle. When light signals are sent through the fiber optic cable, they reflect off the core and cladding in a series of zig-zag bounces, adhering to a process called total internal reflection. The light signals do not travel at the speed of light because of the denser glass layers, instead traveling about 30% slower than the speed of light. To renew, or boost, the signal throughout its journey, fiber optics transmission sometimes requires repeaters at distant intervals to regenerate the optical signal by converting it to an electrical signal, processing that electrical signal and retransmitting the optical signal.
Fiber optic cables are moving toward supporting up to 10-Gbps signals. Typically, as the bandwidth capacity of a fiber optic cable increases, the more expensive it becomes.
Optic Cable Electrical Characteristics:
The communication cable for mining is indicated by model and specification. For example:
a) The communication cable with 30 pairs of cores is expressed as: mhya32 30 × 2
b) The mine communication cable with 1 star strand core is made of polyethylene insulated PVC sheath, expressed as: mhyv 1 × 4
Main technical performance and index of mine communication cable
DC resistance of conductor at 20 ℃ / km 7 / 0.28 ≤ 45 7 / 0.28 (3 steel, 4 copper) ＜ 73 1 / 0.8 ≤ 36.7
Natural attenuation (800-1000hz) db/km ≤ 1.1 ≤ 1.3 ≤ 0.95
Insulation resistance of cable core at 20 ℃ m Ω.Km ≥ 3000
Working capacitance of pair of wires (800-1000hz) uf/km ≤ 0.06
Near end crosstalk attenuation (800-1000hz) db/500m ≥ 70
Inductance (800-1000hz) uh/km ≤ 800
Withstand AC power frequency voltage 1.5kv/1min passing
DC resistance difference ≤ 2% of ring resistance
The use characteristics of
The long-term allowable operating temperature of conductor is -40 ~ +50 ℃;
Average relative humidity is ≤ 95% (+25 ℃)
The allowable temperature of accessories and installation shall not be more than -10 ℃
Bending radius: mhyv and mhjyv cables are 10 times of the outer diameter of cables, and 15 times of the outer diameter of other types of cables
Specification and model of signal line for coal mine
● product use:
The flame retardant signal cable (now referred to as flame retardant communication cable for coal mine) is suitable for signal transmission in the mine, which can be moved or fixed.
● product model, specification and scope of use:
1) Mhyv (puyv) polyethylene insulated PVC sheathed signal cable (1 × 2, 1 × 4, 2 × 2, 3 × 2, 4 × 2, 5 × 2, 6 × 2, 8 × 2, 10 × 2) 1 / 1.0 and 1 / 1.38 for coal mine is used for general signal transmission in the mine and is suitable for fixed laying.
2) MHYVR (puyvr) coal mine signal cable with polyethylene insulated PVC sheath, (1 × 2, 1 × 4, 2 × 2, 3 × 2, 4 × 2, 5 × 2, 6 × 2, 8 × 2, 10 × 2) 7/0.30, 7/0.37, 7/0.43 and 7/0.52; it is used for the common signal transmission in the mine and can be used for mobile use.
3) Mhyvp (puyvp) polyethylene insulated PVC sheathed signal cable (1 × 2, 1 × 4, 2 × 2, 3 × 2, 4 × 2, 5 × 2, 6 × 2, 8 × 2, 10 × 2) 7/0.30, 7/0.37, 7/0.43 and 7/0.52 are used for signal transmission in places with high electric field interference and can be used for fixed laying.
4) Mhyvrp (puyvrp) polyethylene insulated copper wire braided and shielded PVC sheathed signal cable (1-10 pairs, 1 × 4) 7/0.30, 7/0.37, 7/0.43 and 7/0.52 are used for signal transmission in places with large electric field interference, and the cable is soft.
5) Mhy32 (puyv39-1) coal mine signal cable (1 × 2, 1 × 4, 2 × 2, 3 × 2, 4 × 2, 5 × 2, 6 × 2, 8 × 2, 10 × 2) 1 / 1.0, 1/1.38; used for signal transmission in a parallel lane or shaft or inclined shaft.
● characteristics of use:
1) The long-term allowable working temperature of cable conductor is -40 ~ +50 ℃;
2) Monthly average relative humidity: 95% (+25 ℃);
3) The allowable laying and installation temperature of cables shall not be less than -10 ℃;
4) Cable bending radius: 10 times of cable outer diameter
Optic Cable Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies optical fibers cable and antennas router in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
3. Quality is important for us and for the customer, the client’s demand is more supreme. We create an easier, less costly and extremely satisfactory way of business. Striving to achieve improving results through our continuous innovating and technical engineer’s effort, we create values to turn the antenna / Cable / Harness to your exact demand.
4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.
Optic Cable Product Details:
RFQ:
1. Are you the real factory?
Yes we are the real factory with 16 years history
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
5. What is your delivery time?
Within 48 hours for 30KM normal kinds of fiber optic cable
6. MOQ: what is your minimum quantity?
MOQ for fiber optic cables 3KM
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds
7. Do you have distributor in other country or domestic?
Until now we sell our products to customers directly And factory price could be offered
8. Payment
For large orders: T/T LIC
For small orders: T/T Western Union and Paypal are acceptable
9. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL) by air or by courier services,any of which is optional
