IP68 DS18B20 Temperature Sensor Wire Harness Steel Tube Probe

IP68 DS18B20 Temperature Sensor Wire Harness Steel Tube Probe

DS18B20 Temperature Sensor Wire Harness

IP68 Temperature Sensor Wire Harness

DS18B20 thermal sensor wire harness

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS,ISO

Model Number:

RY-DS18B20-3

Contact Us

Request A Quote
Product Details
Usage:
SENSOR
Sample:
Sample Can Be Provided For Evaluating
Connector:
DS18B20
Length:
50m..(we Can Customize)
Pitch:
1.0/1.25/2.0mm/2.54mm..
Test:
100% Testing Inspection
Temperature Range:
-20~105C
Name:
DS18B20 Wire
Payment & Shipping Terms
Minimum Order Quantity
20
Price
USD0.5~3.0
Packaging Details
sample size:18*12*9cm,40*40*20cm..etc
Delivery Time
Shipped in 9 days after payment
Payment Terms
L/C, T/T,Paypal, Western Union, MoneyGram, D/A, D/P
Supply Ability
1000000pcs
Product Description



IP68 Steel Tube Probe Temperature Sensor Digital Maxim Original Chip DS18B20 Wire Harness



① MF - negative temperature coefficient (NTC) thermistor code.
② 52 - NTC thermistor of epoxy resin encapsulated temperature sensor.
③ 103 -- the nominal resistance of the thermistor, which means that the nominal resistance of the thermistor is 10 × 103 (Ω).
④ F -- error (precision) of resistance value: F = ± 1%, g = ± 2%, H = ± 3%, j = ± 5%
⑤ 3950 -- thermal sensitivity index (material coefficient) b value of resistance: 395 × 10 (k)



Electrical Characteristics:



Model Rated resistance(R25) value

work

temperature

Dissipation coefficient(mW/℃) Thermal time constant(S)

Resistance value

(KΩ)

Allowable deviation

(± %)

Nominal value

(K)

MF52-102-3435 1

±1%

±2%

±3%

±5%

3435

-40℃

~

+200℃

≥2.0



≤15



MF52-202-3435 2 3435
MF52-2.252-3950 2.252 3950
MF52-472-3950 4.7 3950
MF52-502-3470 5 3470
MF52-502-3950 5 3950
MF52-682-3950 6.8 3950
MF52-103-3435 10 3435
MF52-103-3470 10 3470
MF52-103-3600 10 3600
MF52-103-3950 10 3950
MF52-103-3977 10 3977
MF52-103-4100 10 4100
MF52-153-3950 15 3950
MF52-203-3950 20 3950
MF52-233-3950 23 3950
MF52-303-3950 30 3950
MF52-333-3950 33 3950
MF52-40.27-3950 40.27 3950
MF52-473-3950 47 3950
MF52-503-3950 50 3950
MF52-503-3990 50 3990
MF52-503-4050 50 4050
MF52-104-3950 100 3950
MF52-104-3990 100 3990
MF52-104-4200 100 4050
MF52-204-3950 200 3950
MF52-204-4260 200 4260



The digital temperature sensor DS18B20 is used, and the sealant with high thermal conductivity is used to seal, which ensures the high sensitivity of the temperature sensor and minimal temperature delay. The temperature sensor supports 1-wire interface. The temperature range is - 55 ° C to + 125 ° C, and the accuracy is ± 0.5 ° C in the range of - 10 ° C to + 85 ° C. The field temperature is directly transmitted by the digital mode of "one wire bus", which greatly improves the anti-interference of the system. It is suitable for field temperature measurement in harsh environment. DS18B20 digital temperature sensors all have a unique number, and the temperature acquisition device identifies the corresponding temperature sensor through the number. The lead length of the sensor can be customized according to the user's needs.

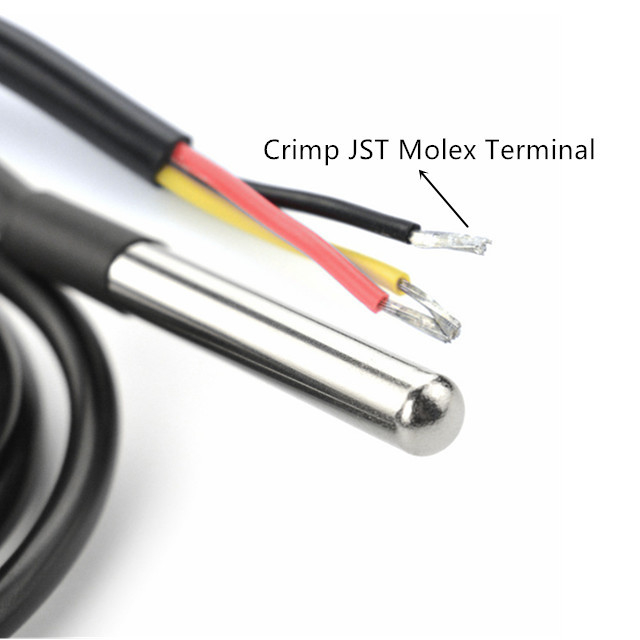

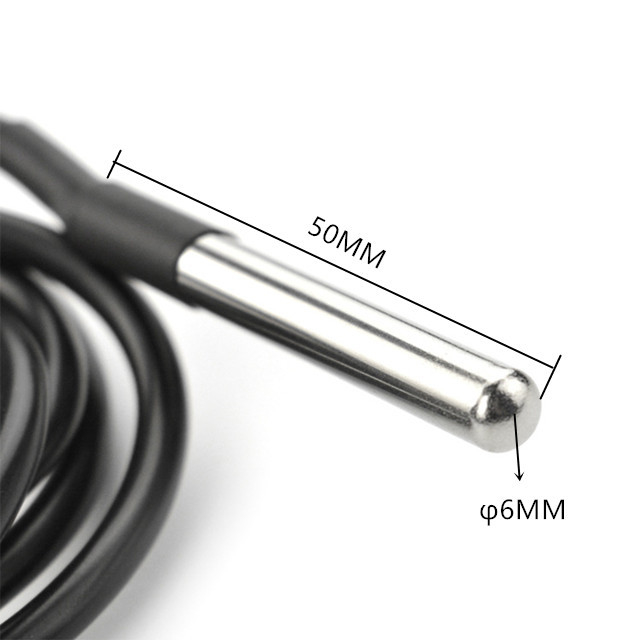

Each pin of the chip is separated by heat shrinkable tube to prevent short circuit, internal sealing, waterproof and moisture-proof! High quality stainless steel tube packaging, waterproof, moisture-proof and rust proof! Working voltage: 3.0 ~ 5.5V, power supply resolution: 9 ~ 12 bits, adjustable resolution, temperature measurement range: - 55 ° C ~ + 125 ° C (lead can only withstand about 85 ℃). Product size: stainless steel shell (6 * 50mm), lead length 50cm, without external components, Unique single bus interface output leads: red (VCC), yellow (data), blue (GND)



Application:

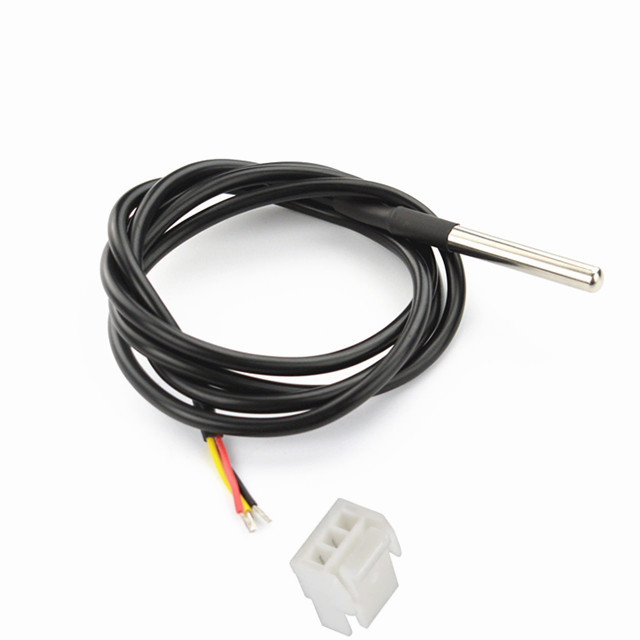

IP68 DS18B20 Temperature Sensor Wire Harness Steel Tube Probe 0

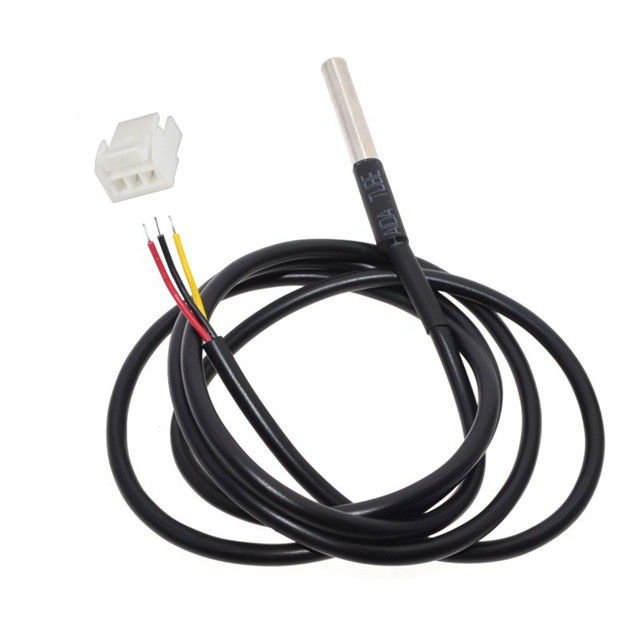

IP68 DS18B20 Temperature Sensor Wire Harness Steel Tube Probe 1
