Place of Origin:
China
Brand Name:
RY
Certification:
rohs
Model Number:
RY-CAT7-RJ45-22
Contact Us
Video
| Specification | |
| Cable Spec | CAT7 32AWG 4pairs+AEB |
| Cable Length | 6ft, 10ft, 15ft, 25ft, 50ft, (Custom Length available) |

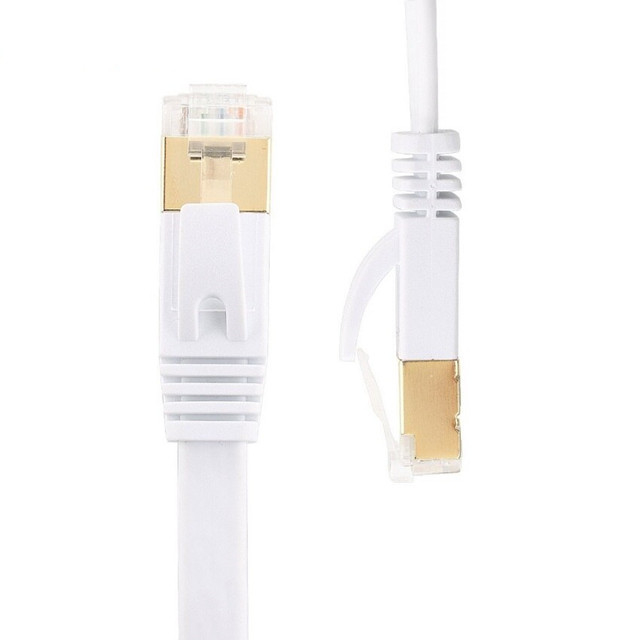

| Color | Black, Beige ,Blue(Custom Color available) |
| Diameter | OD:1.9*7.0mm |
| Wire Gauge | 32AWG,30AWG |
| Conductor | bare copper(BC),Tin plated copper(TC)(optional) |
| Certificate | RoHS,UL,CE,FCC |
| Plug mould | PVC molding, plastic shell , metal shell |
| Connector | gold-plated |
| Electrical Properties | |
| Quality Control | 100% open & short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M min |
| Contact Resistance | 2 ohm max |
| Working Temperature | -25C-80C |
| Data transfer rate | 10.2Gbps Max |
| Differential Impedance | 100±10Ω(TDR) |
| Complies with | TIA/EIA 568B standard |
1. Adopt high quality and environmental protection PVC coating, excellent tensile resistance, environmental protection, wear resistance, oxidation resistance.
2. Widening the design of the guard card, you can plug and remove it with a simple press, carefully care for your fingers, and effectively protect the shrapnel of the crystal head.
3. Selection of high purity oxygen free copper (OFC) conductor conductor core, low impedance, good transmission effect. The standard transmission rate is 100Mbps and the transmission frequency is 100MHz.
4. Adopt environment-friendly TPE elastic wire, with good extensibility, better protect the wire core.

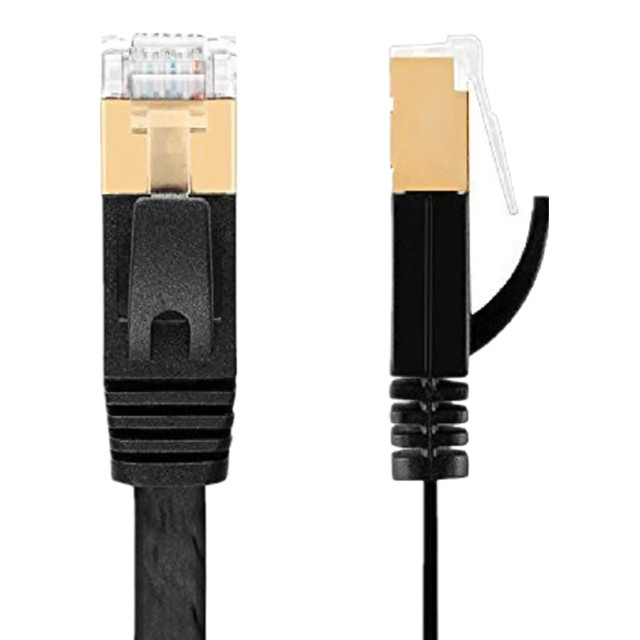

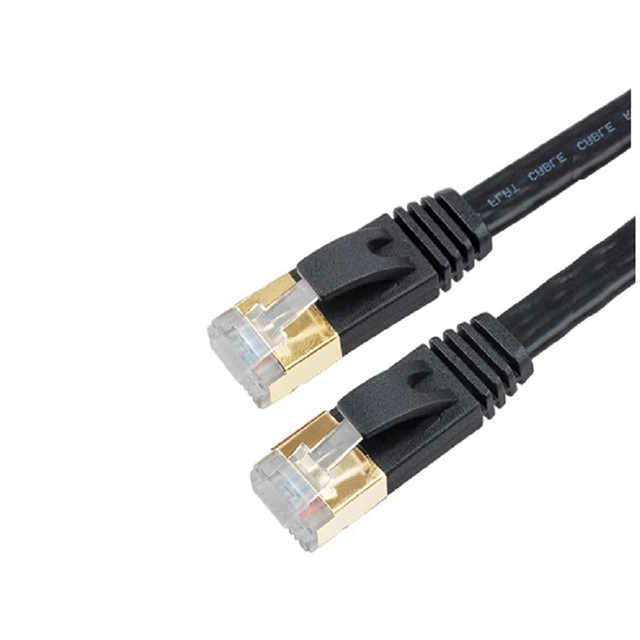

5. Crystal head with 50μm gold plating, good contact and transmission performance, with good oxidation resistance, no rust, no blackening.
